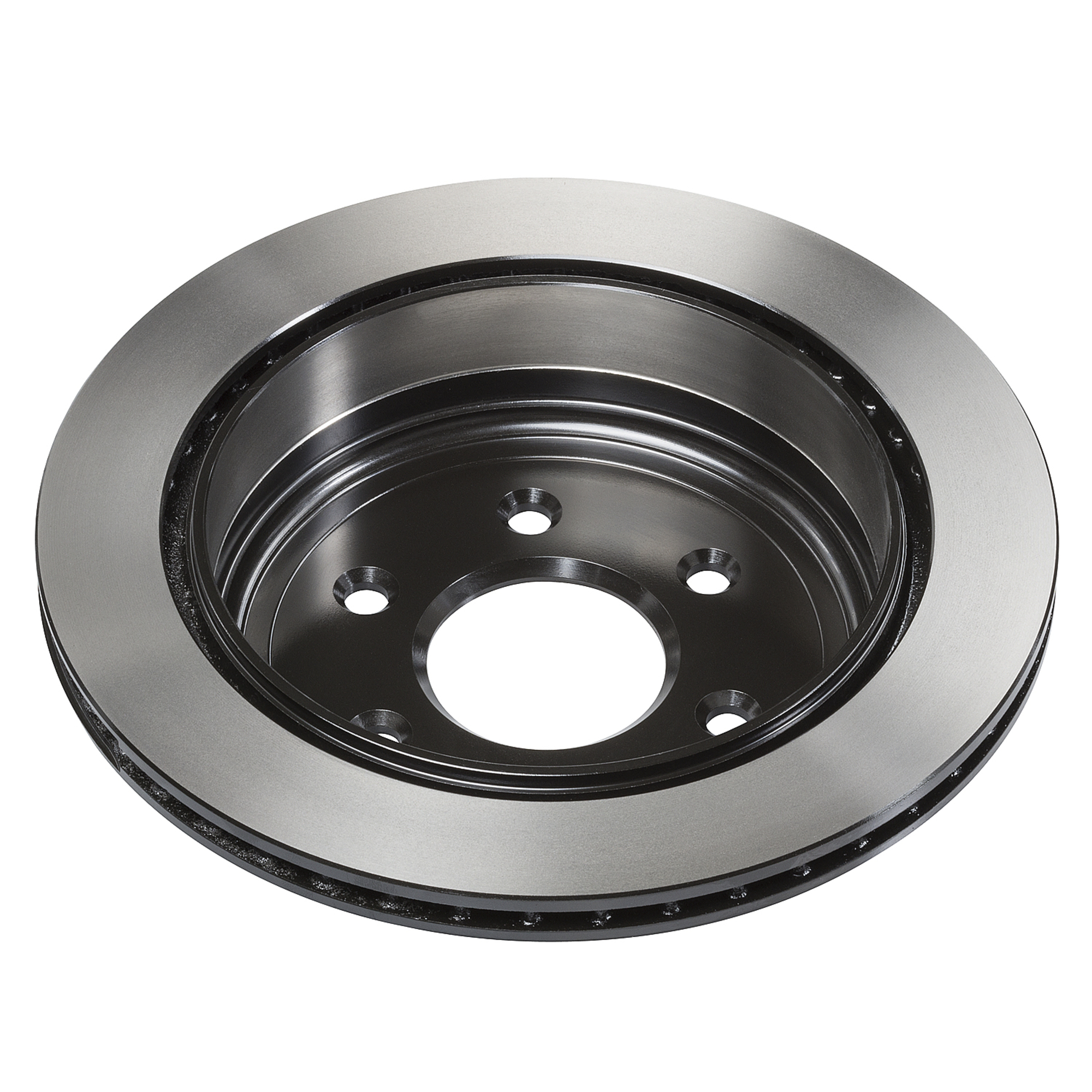

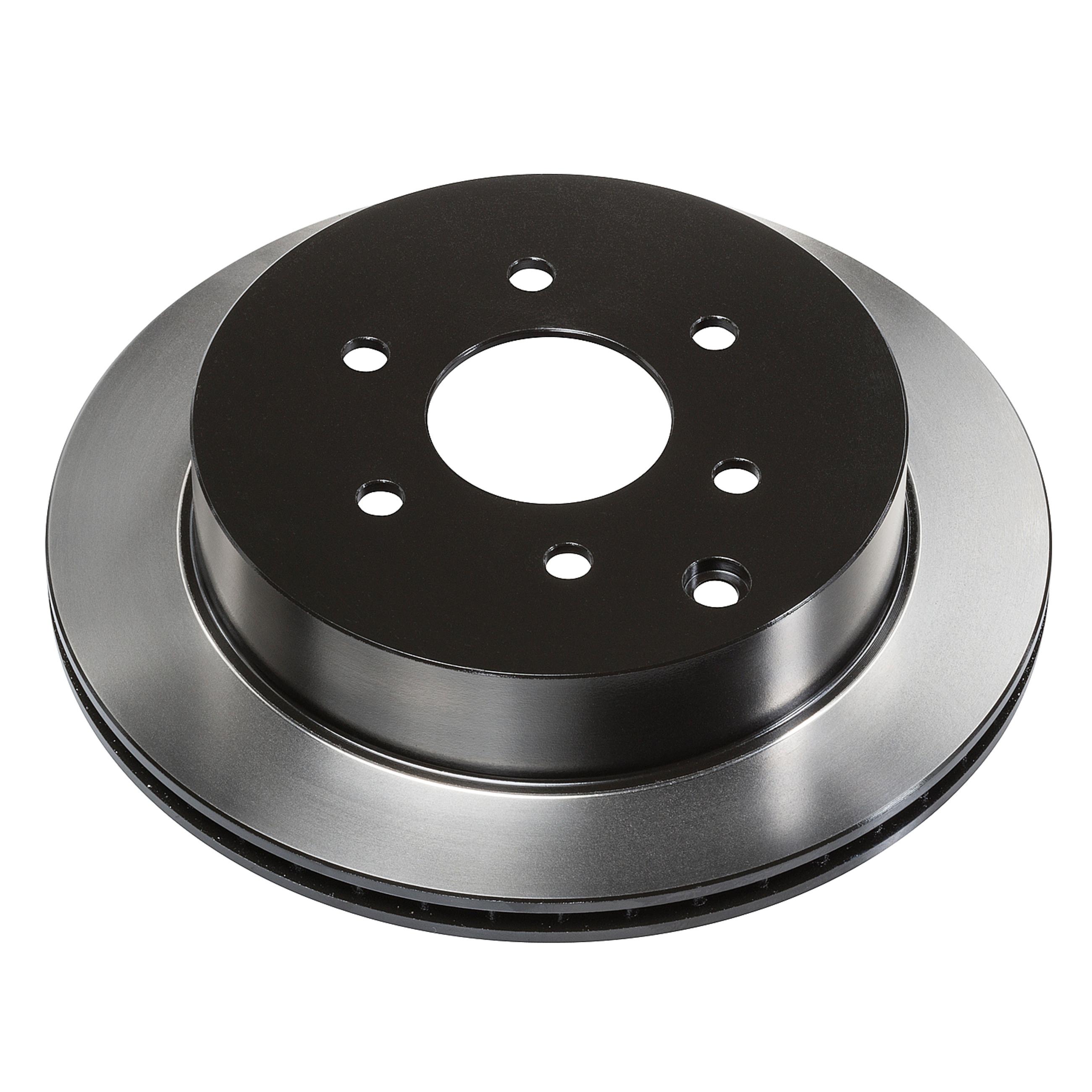

Rear Disc Brake Rotor

Part # BD126305E | Line Code: 434

$65.49

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Product Details

Overall Height	61.8
Part Description	Disc Brake Rotor
ABS Sensor Ring Included	No
Construction	Full Cast
Discard Thickness	16.0
Solid Or Vented Type Rotor	Vented
Heavy Duty Supplier	Yes
Material	Cast Iron
Rust Resistant Coating	Yes
Slotted	No
Prop 65 Label (Yes/No)	No
Disc Finish	Directional
Height	2.433
Surface Type	Smooth
Outside Diameter	285.6
Nominal Thickness	18.2
Part Terminology	Disc Brake Rotor

Features & Benefits

Wagner® Standard brake rotors are engineered to match OE fit, form and function to provide consistent performance, corrosion resistance and ease of installation. Painted edges and hats deliver long-lasting protection against rust, while the non-directional finish ensures proper bedding. Pair Wagner Standard rotors with Wagner brake pads and rotors for optimal performance.

Application Summary

2009-2012 Suzuki Equator (Rear) (Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 6 Stud Wheel, with 286mm Diameter Rotor); 2005-2023 Nissan Frontier (Rear) (Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 6 Stud Wheel, with 286mm Diameter Rotor); 2005-2015 Nissan Xterra (Rear) (Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 6 Stud Wheel, with 286mm Diameter Rotor)
