| Slip Assembly | No |
| Slip Yoke: CL to End of Spline (MM) | No |
| Joint Angle | 7.5 |
| Heavy Duty Supplier | Yes |
| CL Yoke To Flange Fac e(IN)-COLL | 7.0000 |
| Max Slip (IN) | 1.0000 |
| Shaft Material | Steel |
| Phased - Degrees | 0.0000 |
| Phased (Yes/No) | No |
| CL Yoke To Flange Face (MM)-INST | 190.5000 |
| CL Yoke To CL Yoke (MM) - COLL | 139.7000 |
| Notes | Short Couple |
| Mid Slip (IN) | 0.5000 |
| 1/2 Max Slip (IN) | 0.5000 |
| CL Yoke To End Of Spline Sleeve (IN)-COLL | 6.0000 |
| End 1 Type SJ Side | 177.8000 |
| End 2 TJ Side | 3-2-489 |
| Max Slip (MM) | 25.4000 |
| CV Joints Included | No |
| Series | 1480 |
| CL Yoke To Flange Face (MM)-COLL | 177.8000 |
| Mid Slip (MM) | 12.7000 |
| 1/2 Max Slip (MM) | 12.7000 |
| Prop 65 | NO |
| CL Yoke To Flange Face (IN)-INST | Welded |
| Unwelded/Welded Assembly | Unwelded |
| CL Yoke To CL Yoke (IN) - COLL | 5.5000 |

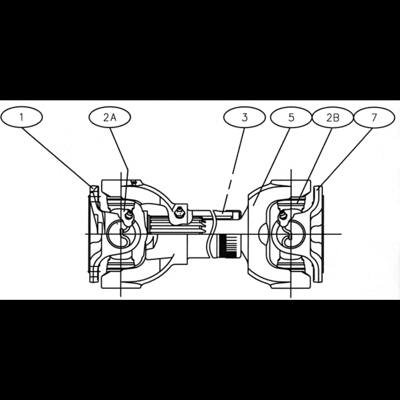

| Part Terminology | Drive Shaft |
