Product Details
expand_less
| Ring Gear Rotation |
STANDARD |
| Pinion Gear Included |
Y |
| Axle Model |
DANA 44 |
| Ring Teeth Count |
46 |
| Ring Gear Bolt Qty |
10 |
| Heavy Duty Supplier |
Yes |
| Include Installation Kit |
Y |
| Cover Bolt Quantity |
10 |
| Pinion Spline Count |
26 |
| On Vehicle Location |
FRONT/REAR |
| Pinion Nut Included |
Y |
| Ring Gear Diameter (In.) |
8.500 |
| Prop 65 |
NO |
| Ring Gear Bolt Thread In. |
.375-24 |
| Pinion Shaft Diameter |
0.983 |
| Axle Type |
Semi Floating |
| Pinion Gear Tooth Quantity |
13 |
| New Or Remanufactured |
New |
| Gear Ratio |
3.54 |
| Ring Gear Included |
Y |
| Carrier Breaks |
3.73 And Down |
| Part Terminology |

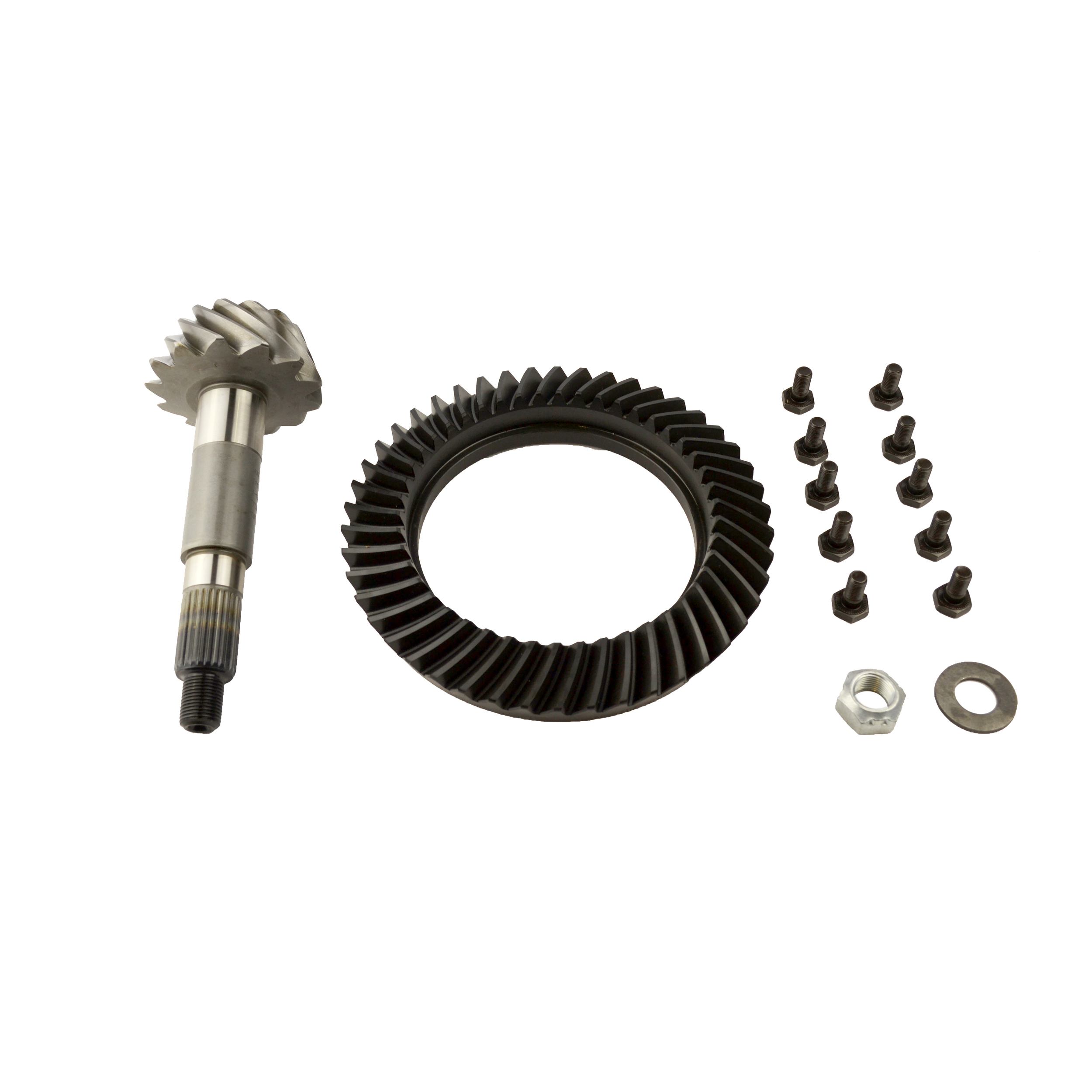

Differential Gear Set |
Features & Benefits
expand_more
All Spicer ring and pinion gears are designed and tested to meet original equipment specifications. When you purchase genuine Spicer ring and pinion gear sets, you can be confident the ring and pinion set will meet or exceed the exact Dana standards that original equipment manufacturers have relied upon for more than a hundred years.
Application Summary
expand_more
Ford - 1971-77 Bronco , 1969-75 E-100 Econoline , 1975 E-100 Econoline Club Wagon , 1975-79 E-150 Econoline , 1975-79 E-150 Econoline Club Wagon , 1953-79 F-100 , 1975-78 F-150 , 1959-77 F-250 , International - 1968-71 Scout , 1971-80 Scout II , Dodge - 1994-01 Ram 1500 , 1994-02 Ram 2500 , 1974-93 Ramcharger , 1975-77 W100 , 1986-89 W100 , 1957-59 W100 Pickup , 1968-74 W100 Pickup , 1960-67 W100 Series , 1977-93 W150 , 1975-80 W200 , 1957-59 W200 Pickup , 1968-74 W200 Pickup , 1960-67 W200 Series , 1981-93 W250 , Chevrolet - 1969-74 Blazer , 1960-67 C10 Panel , 1960-68 C10 Pickup , 1967-80 C10 Suburban , 1967-80 C20 Suburban , 1984-85 Camaro , 1992-94 Camaro , 1980-82 Corvette , 1964-72 G10 Van , 1975-80 K10 , 1960-74 K10 Pickup , 1967-80 K10 Suburban , 1975-80 K20 , 1967 K20 Panel , 1962-74 K20 Pickup , 1967-80 K20 Suburban , 1977-80 K30 , 1968-74 K30 Pickup , 1975-80 K5 Blazer , 1960-66 Suburban , Isuzu - 1993-97 Rodeo , Jaguar - 1967-68 420 , 1962-66 Mark X , Lincoln - 1956-57 Mark II , Jeep - 1986-93 Cherokee , 1960-83 CJ5 , 1966-75 CJ6 , 1986 CJ7 , 1986-92 Comanche , 1966-73 Commando , 1966 FC150 , 1984-91 Grand Wagoneer , 1993 Grand Wagoneer , 1974-88 J10 , 1981-85 Scrambler , 1971-90 Wagoneer , 1997-06 Wrangler , GMC - 1975-78 C15 Suburban , 1967-68 C15/C1500 Pickup , 1968-74 C15/C1500 Suburban , 1979-80 C1500 Suburban , 1975-78 C25 Suburban , 1968-74 C25/C2500 Suburban , 1979-80 C2500 Suburban , 1952 FC100 , 1952 FC100-22 , 1963-66 G1000 Series , 1967-72 G15/G1500 Van , 1966 K1000 , 1966 K1000 Pickup , 1975-78 K15 , 1975-78 K15 Suburban , 1966-74 K15/K1500 Pickup , 1967-74 K15/K1500 Suburban , 1979-80 K1500 , 1979-80 K1500 Suburban , 1975-78 K25 , 1975-78 K25 Suburban , 1967-74 K25/K2500 Pickup , 1968-74 K25/K2500 Suburban , 1979-80 K2500 , 1979-80 K2500 Suburban , 1977-78 K35 , 1968-74 K35/K3500 Pickup , 1979-80 K3500 , 1960-66 Suburban
