| Medium Duty Truck | N |
| Freight Class | 60 |
| Feature 3 | Piston skirts protected by next-gen DUROSHIELD coating |
| Heavy Duty Truck | N |
| Feature 2 | Sophisticated "barrel" profiles help optimize oil wedge between skirt and wall |
| Feature 4 | TAC ring groove geometry |
| Non Vehicle Specific | N |
| RING 1 WID | 5/64 |
| Ring 1 Qty | 2 |
| PIN DIA (MM) | 25.397 |
| Pin Weight Gram | 223 |
| Marine | N |
| HEAD ILUS | 31 |
| Ring 2 Width | 3/16 |
| Head Type | .130 dish, 4 reliefs; DUROSHIELD skirt coated piston |
| Pin Diameter (Inch) | 0.9999 |
| Minimum Clearance | .0015 |
| Part Material | Hypereutectic |
| Snowmobile | N |
| Transmission Specific | N |
| Motorcycle ATV | N |
| Agricultural Equipment | N |
| Pin Diameter (MM) | 25.397 |
| Industrial Off Highway Equipment | N |
| CMPRS DSTNC | 1.985 |
| Ring 2 Qty | 1 |
| Ring 1 Width | 5/64 |
| RING 2 WID | 3/16 |
| Feature or Benefit 2 | DUROSHIELD skirt coated piston |
| Weight w/o Pin Gram | 771 |
| Feature or Benefit 1 | Hypereutectic |
| Piston Head Type | .130 dish, 4 reliefs; DUROSHIELD skirt coated piston |
| Weight W Pin Gram | 994 |
| Bore (Inch) | 4.312 |
| Pin Type | P |
| Personal Watercraft | N |
| Application Specific | Y |
| Small Engine | N |
| Standard Size | Standard |
| Cylinder Bore Diameter | 4.312 |
| Engine Specific | Y |
| Car Light Truck | Y |
| Pin Offset (MM) | 1.524 |
| High Performance | Y |
| MIN CLRNC | See Piston Fitting Information on carton label |
| PIN DIA (Inch) | 0.9999 |
| Dome Volume CC | -23.0 |
| Piston Pin Inside Diameter | 0.9999 |
| Compression Distance | 1.985 |
| Ring Material | Hypereutectic |
| Lock Ring | N/R |
| WGT W PIN GRAM | 00756.+/- 00. |
| Pin Offset (Inch) | 0.06 |
| DOME VOL CC | - 023.0 |
| Head Illustration | 31 |

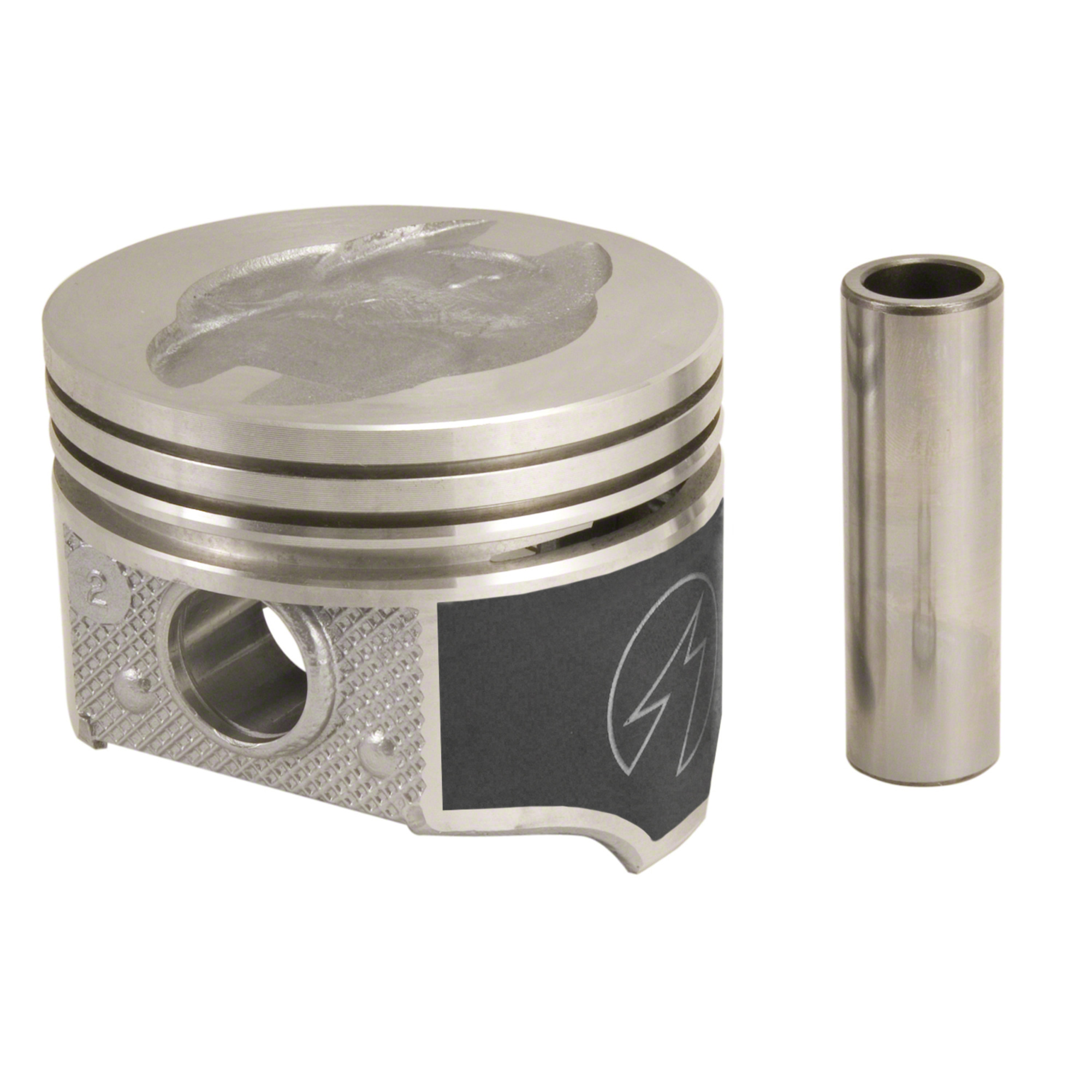

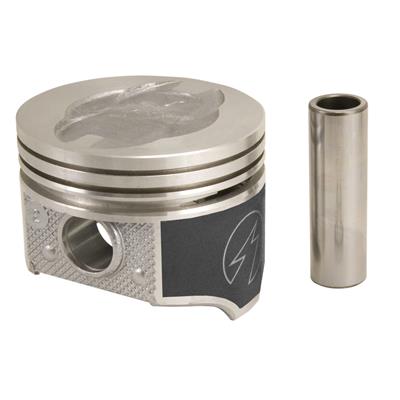

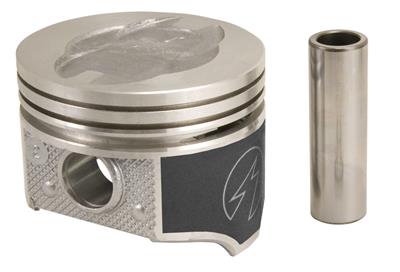

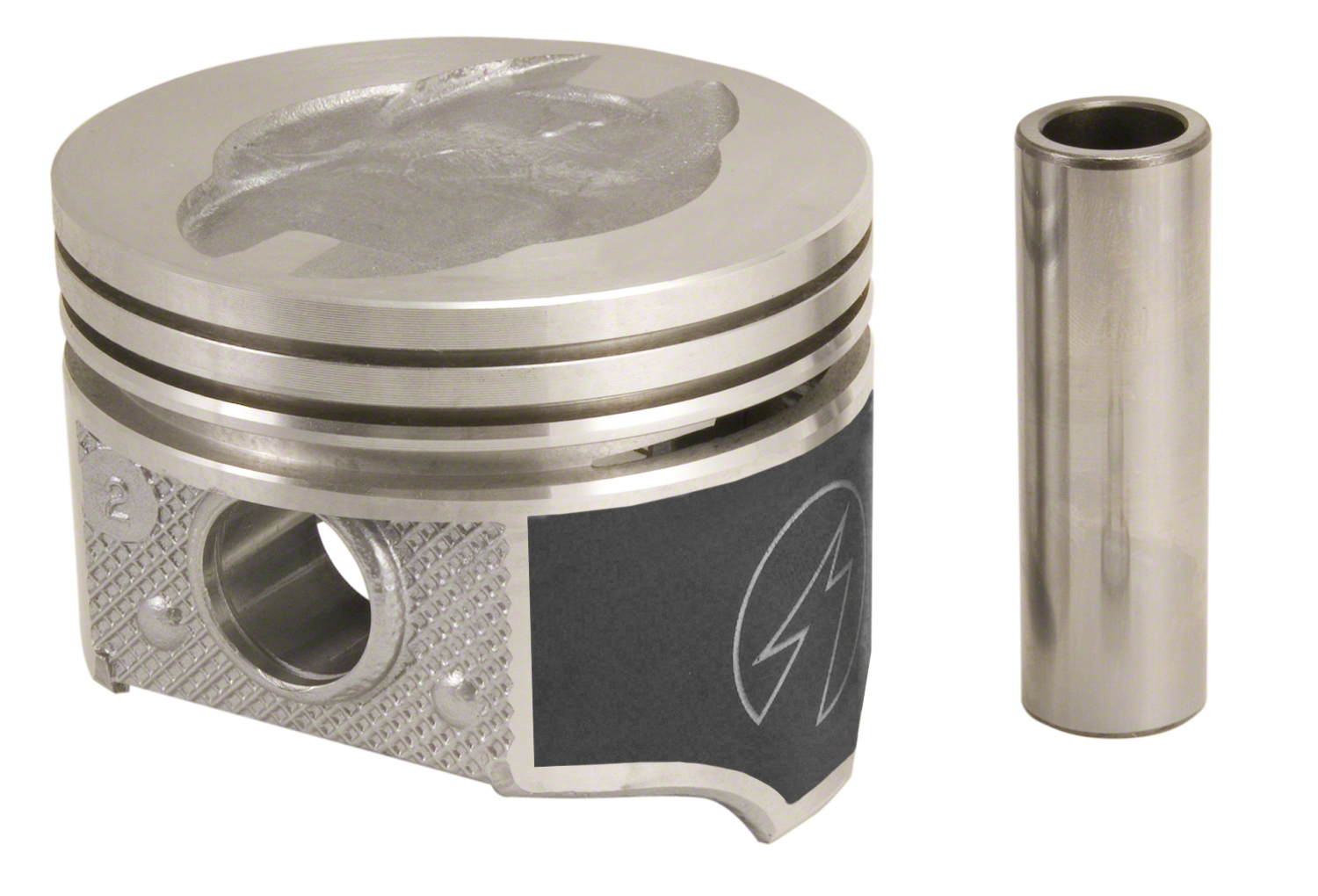

| Part Terminology | Engine Piston |
