| Heavy Duty Supplier | Yes |
| Inlet Header Length | 524 |
| Transmission Oil Cooler Included | Yes |
| Inlet Location | Top Left |
| Duty Type | Heavy Duty |
| Engine Oil Cooler Included | Yes |
| Installation Kit / Hardware Kit / Package Contents | (ACPK169) 2 x Oil Cooler Adapter 1/2"-20 UNF Female X 5/8"-18 UNF Male |
| Core Width | 495 |
| Transmission Oil Cooler Type | Plated |
| Core Material | Aluminum |
| California_Prop 65 Message | Y |
| Inlet Diameter | 33 |
| Inlet Header Width | 79 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Core Row Quantity | 2 |
| Tank Material | Plastic |
| Outlet Header Width | 79 |
| Engine Oil Cooler Number of Plates | 7 |
| Transmission Oil Cooler Fitting Type | 5/8-18 UNF Female |
| Outlet Diameter | 40 |
| Outlet Header Length | 524 |
| Internal Transmission Oil Cooler | Yes |
| Mounting Type | Saddle |
| Core Height | 864 |
| Engine Oil Cooler Fittings Distance Apart | 292 |
| Core Thickness | 54 |
| Transmission Oil Cooler Distance between Fittings | 292 |
| Internal Engine Oil Cooler | Yes |
| Outlet Location | Bottom right |
| Engine Oil Cooler Type | Plated |
| Engine Oil Cooler Fitting Type | M20 - 1.5 Female |
| Transmission Oil Cooler Plate Quantity | 6 |
| Frame Included | No |

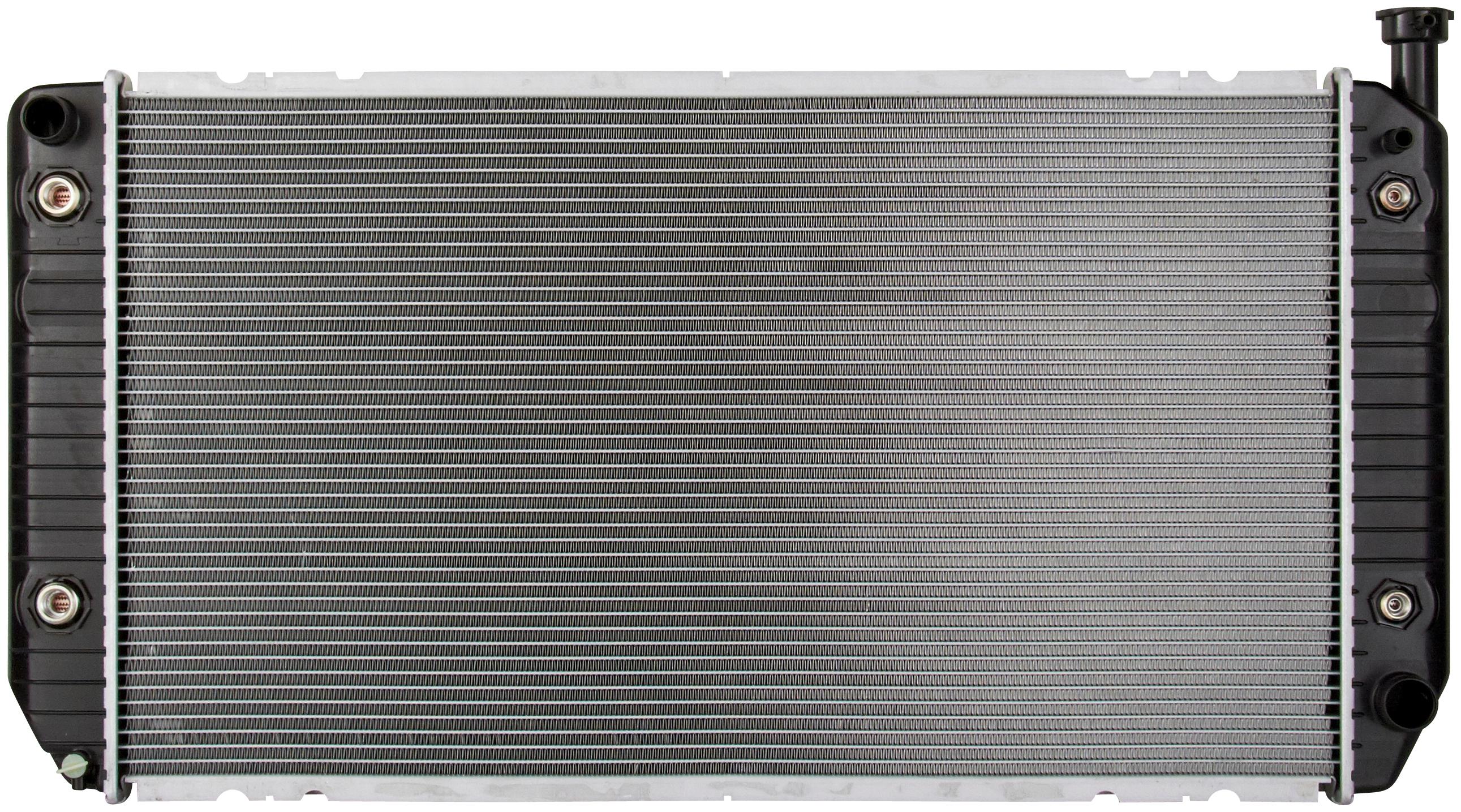

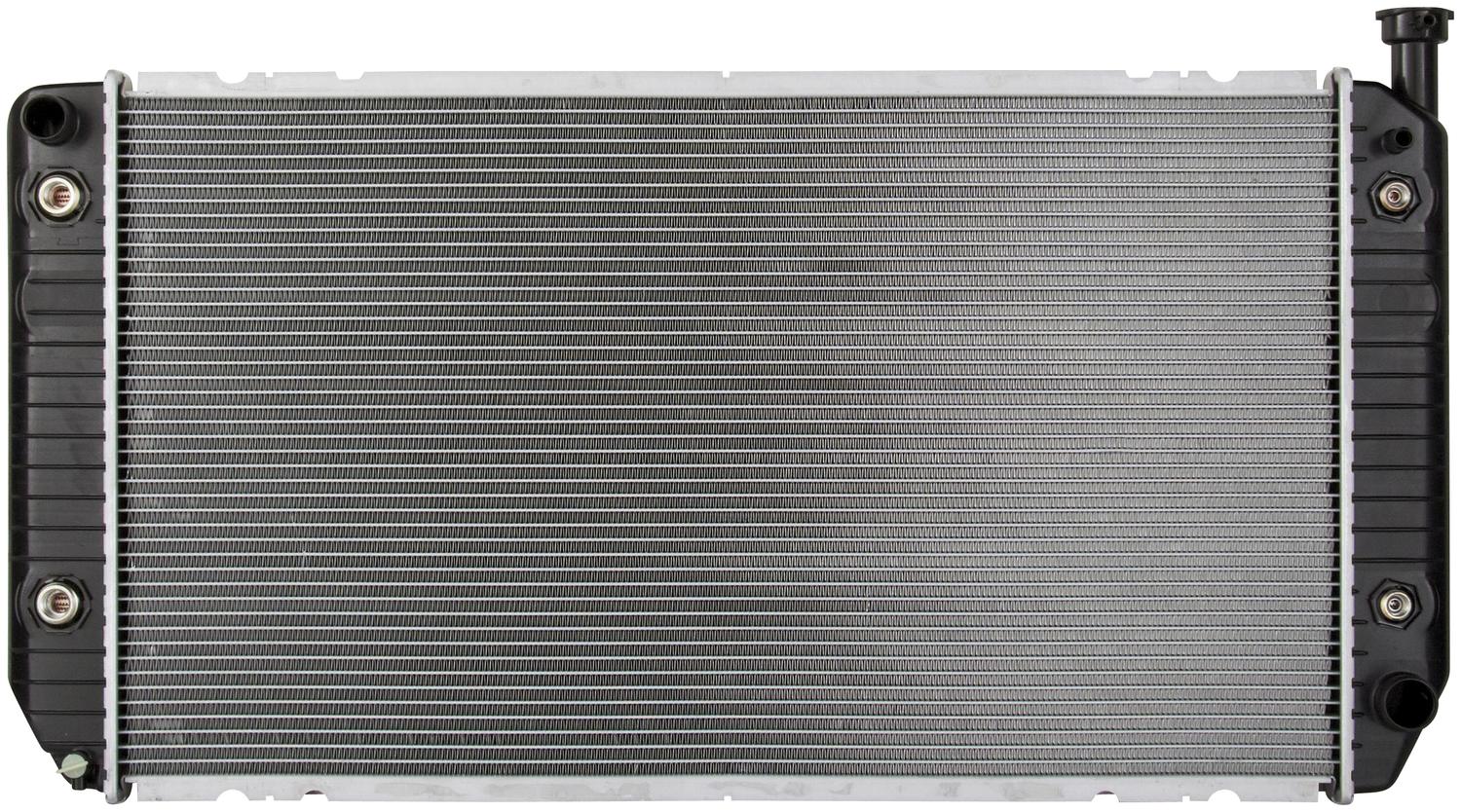

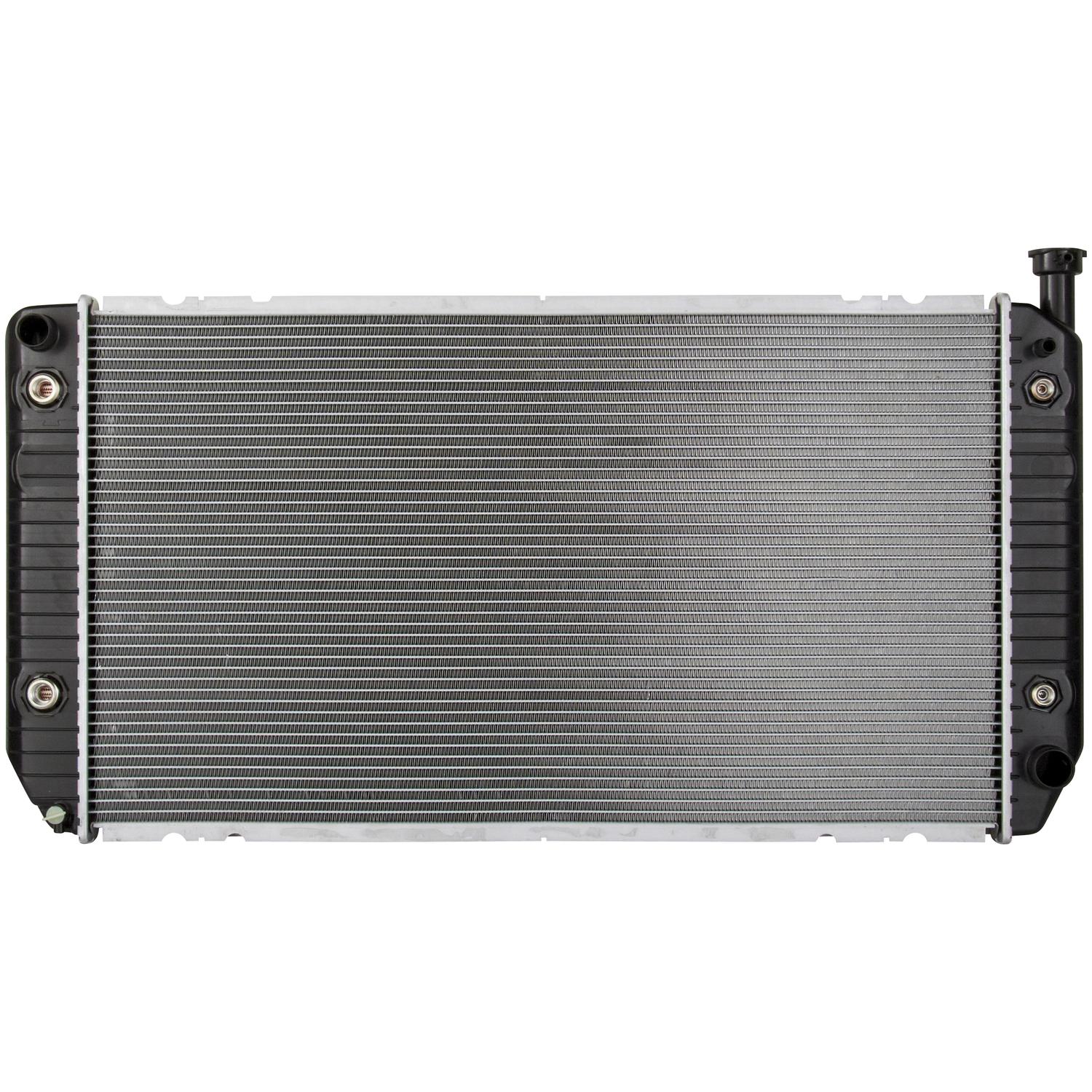

| Part Terminology | Radiator |
