| Pin Diameter (Inch) | 0.9058 |
| Minimum Clearance | See Piston Fitting Information on carton label |
| Package Alert | Single Piston |
| Heavy Duty Supplier | Yes |
| Part Material | Hypereutectic |
| Bore (Inch) | 3.5039 |
| Note 2 | Single Piston |
| Pin Type | P |
| Pin Offset (MM) | 1.016 |
| Ring 3 Width | 3.00mm |
| Ring 3 Qty | 1 |
| Ring 1 Qty | 1 |
| Note 1 | Oversize MM 1.00 |
| Pin Diameter (MM) | 23.007 |
| Compression Distance | 1.467 |
| Ring 2 Width | 1.50mm |
| Oversize MM | 1.00 |
| Head Type | Recessed Head .270 deep x 2.750 dia.; DUROSHIELD~ skirt coated piston |
| Bore (MM) | 89.0000 |
| Ring 2 Qty | 1 |
| Pin Offset (Inch) | 0.04 |
| Ring 1 Width | 1.20mm |
| Head Illustration | 35 |

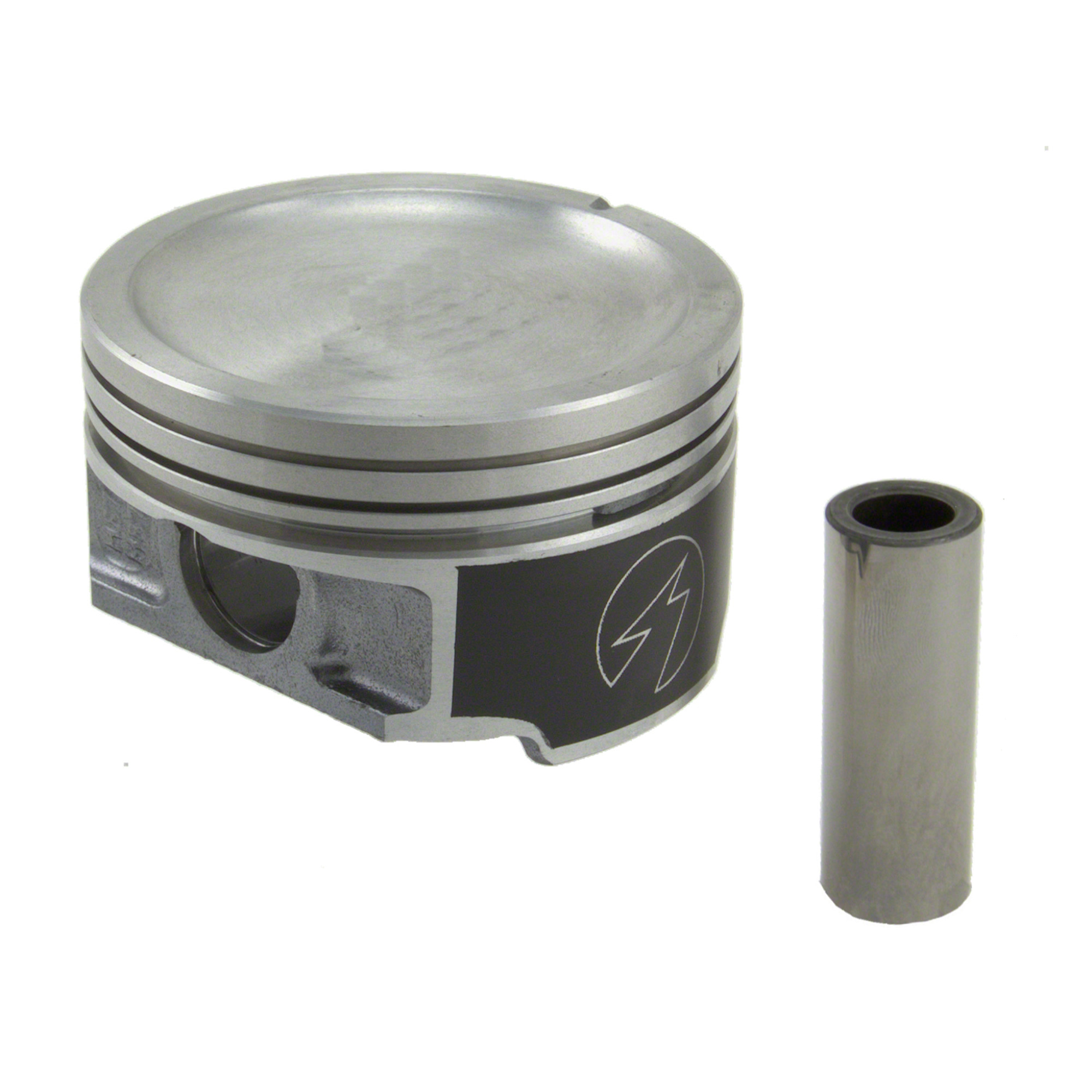

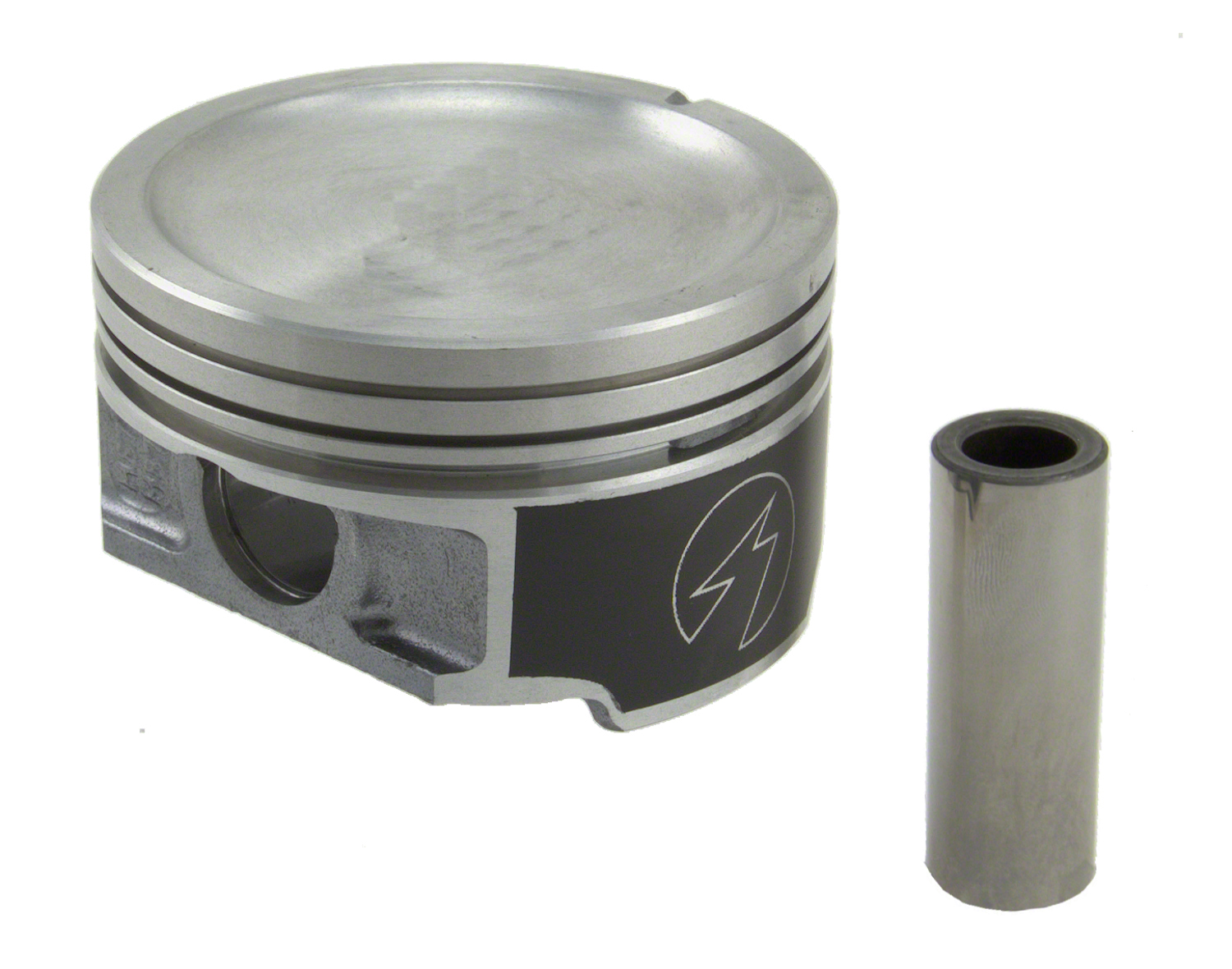

| Part Terminology | Engine Piston |
