| Pin Diameter (Inch) | 0.8271 |
| Minimum Clearance | See Piston Fitting Information on carton label |
| Package Alert | Single Piston |
| Heavy Duty Supplier | Yes |
| Part Material | Hypereutectic |
| Bore (Inch) | 3.4490 |
| Weight W Pin Gram | 00453.+/- 00. |
| Note 2 | Single Piston |
| Pin Type | P |
| Pin Offset (MM) | 0.762 |
| Note 1 | Standard Size |
| Ring 1 Qty | 2 |
| Pin Diameter (MM) | 21.008 |
| Compression Distance | 1.225 |
| Standard Size | Standard |
| Ring 2 Width | 3.00mm |

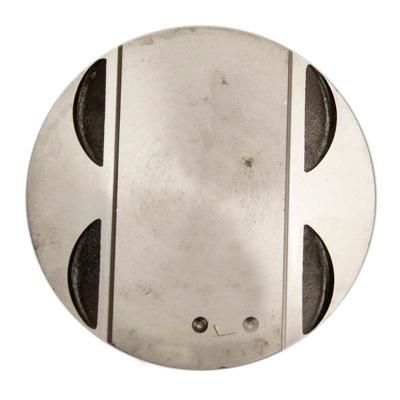

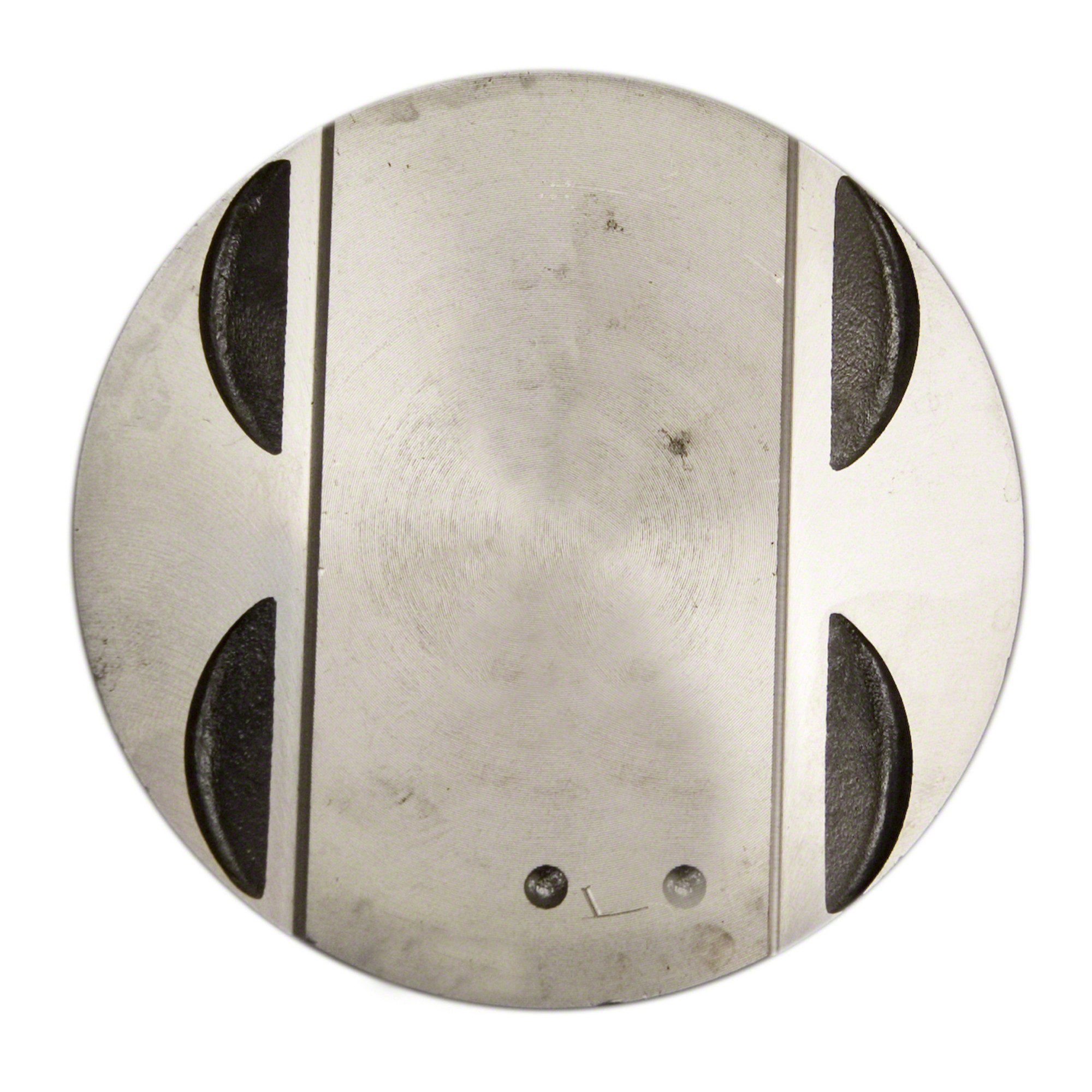

| Head Type | Domed Head .035 high w/4 valve reliefs; DUROSHIELD~ skirt coated piston |
| Bore (MM) | 87.5000 |
| Ring 2 Qty | 1 |
| Pin Offset (Inch) | 0.03 |
| Ring 1 Width | 1.20mm |
| Head Illustration | 207 |
| Part Terminology | Engine Piston |
