| Pin Diameter (Inch) | 1.0402 |
| Minimum Clearance | 0.001 @ 3.000 from top of head |
| Package Alert | Single Piston |
| Oversize Inch | 0.040 |
| Heavy Duty Supplier | Yes |
| Part Material | Hypereutectic |
| Weight W Pin Gram | 01062.+/- 00. |
| Note 2 | Single Piston |
| Pin Offset (MM) | 1.016 |
| Ring 3 Width | 3/16 |
| Ring 3 Qty | 1 |
| Note 1 | Oversize Inch .040 |
| Ring 1 Qty | 1 |
| Pin Diameter (MM) | 26.421 |
| Compression Distance | 2.140 |
| Ring 2 Width | 5/64 |

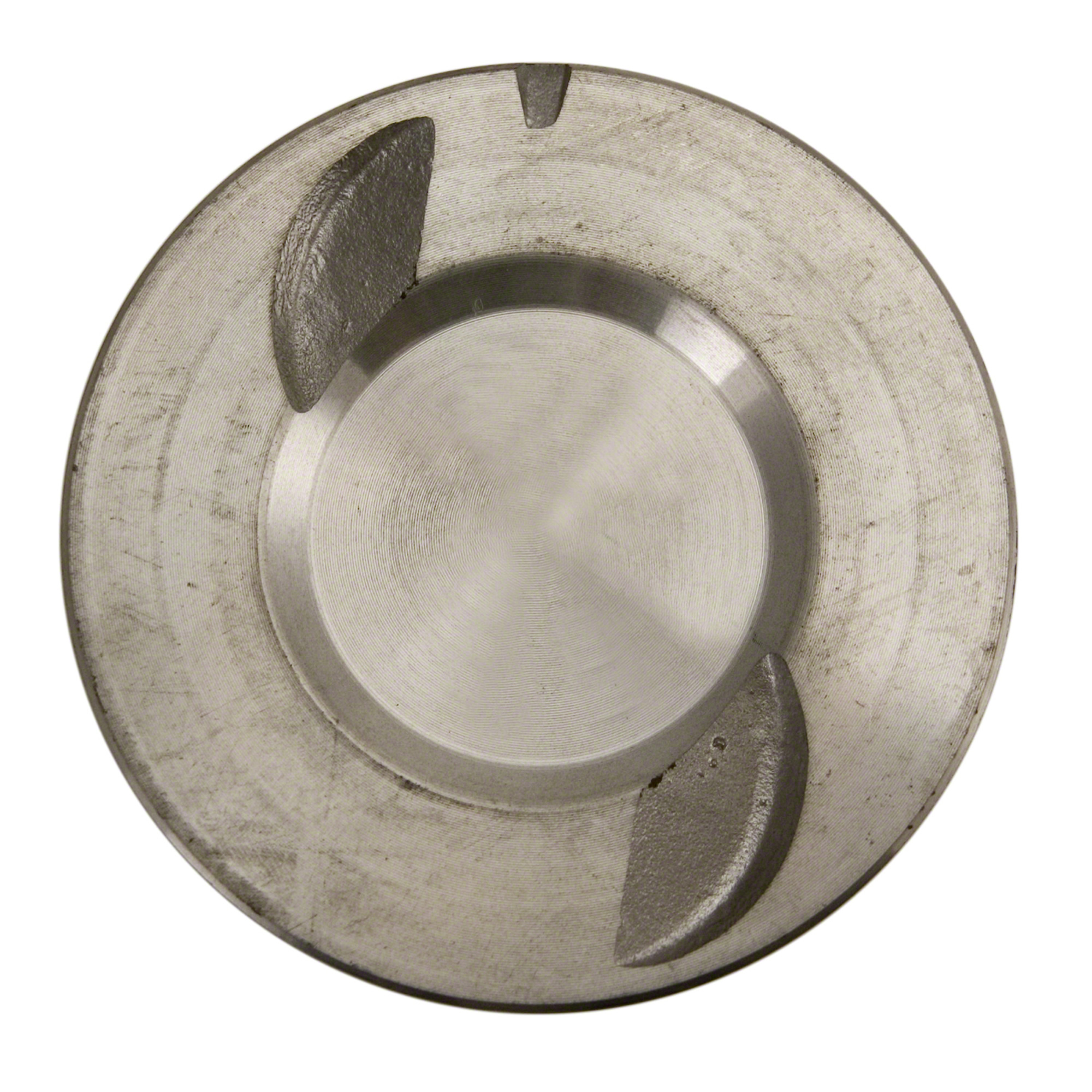

| Head Type | Recessed Head .080 deep x 3.250 dia. w/2 valve reliefs - 7.7:1 C.R. w/429 cyl. head - 8.2:1 C.R. w/460 cyl. head |
| Ring 2 Qty | 1 |
| Pin Offset (Inch) | 0.04 |
| Ring 1 Width | 3/32 |
| Head Illustration | 20 |

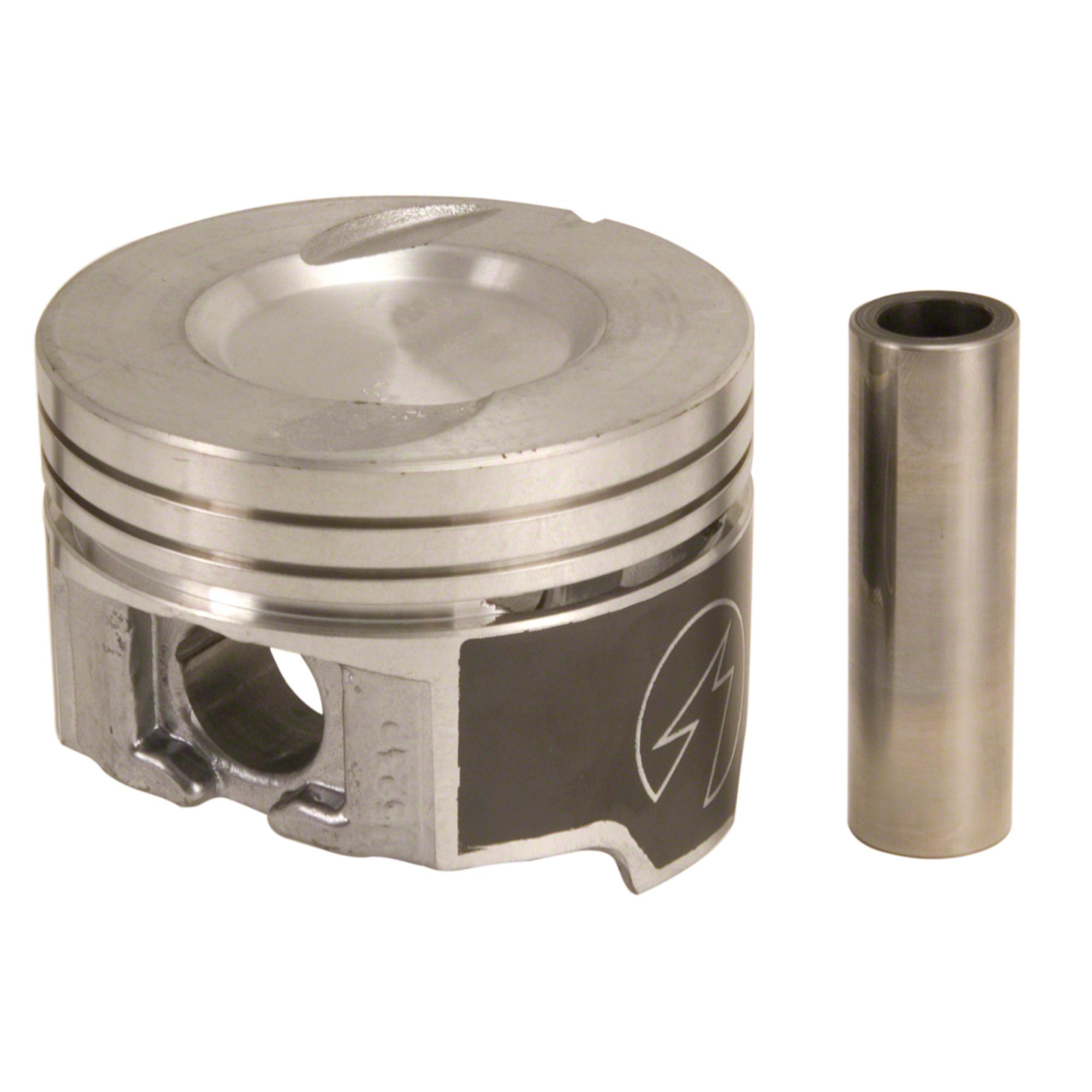

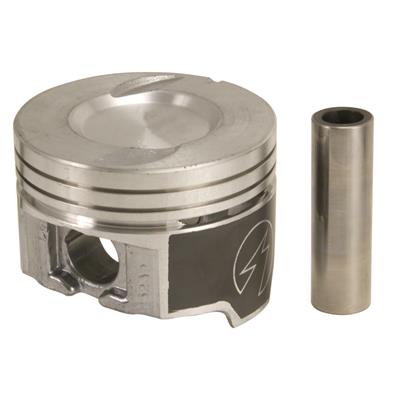

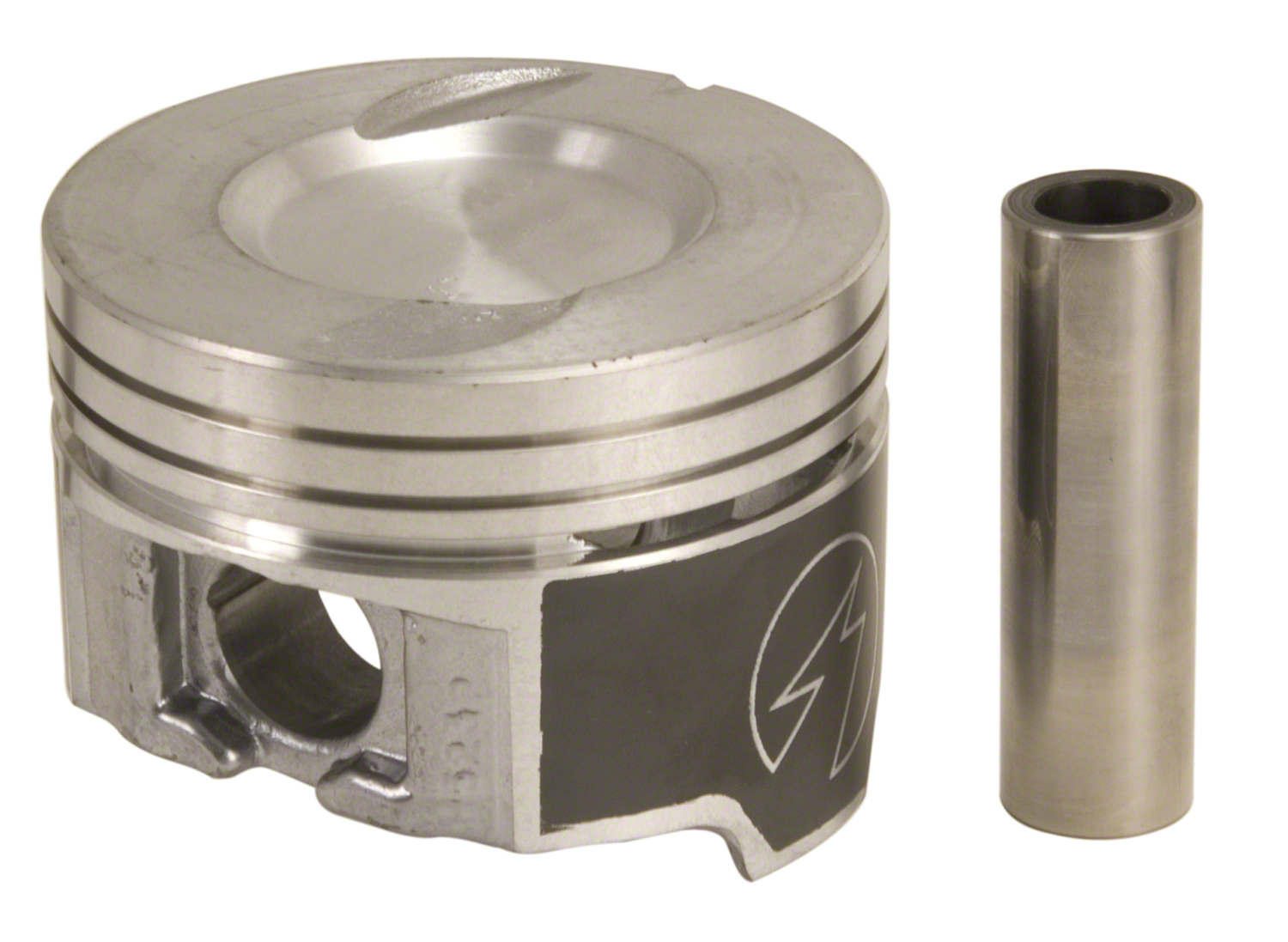

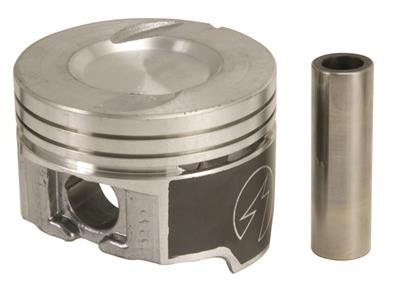

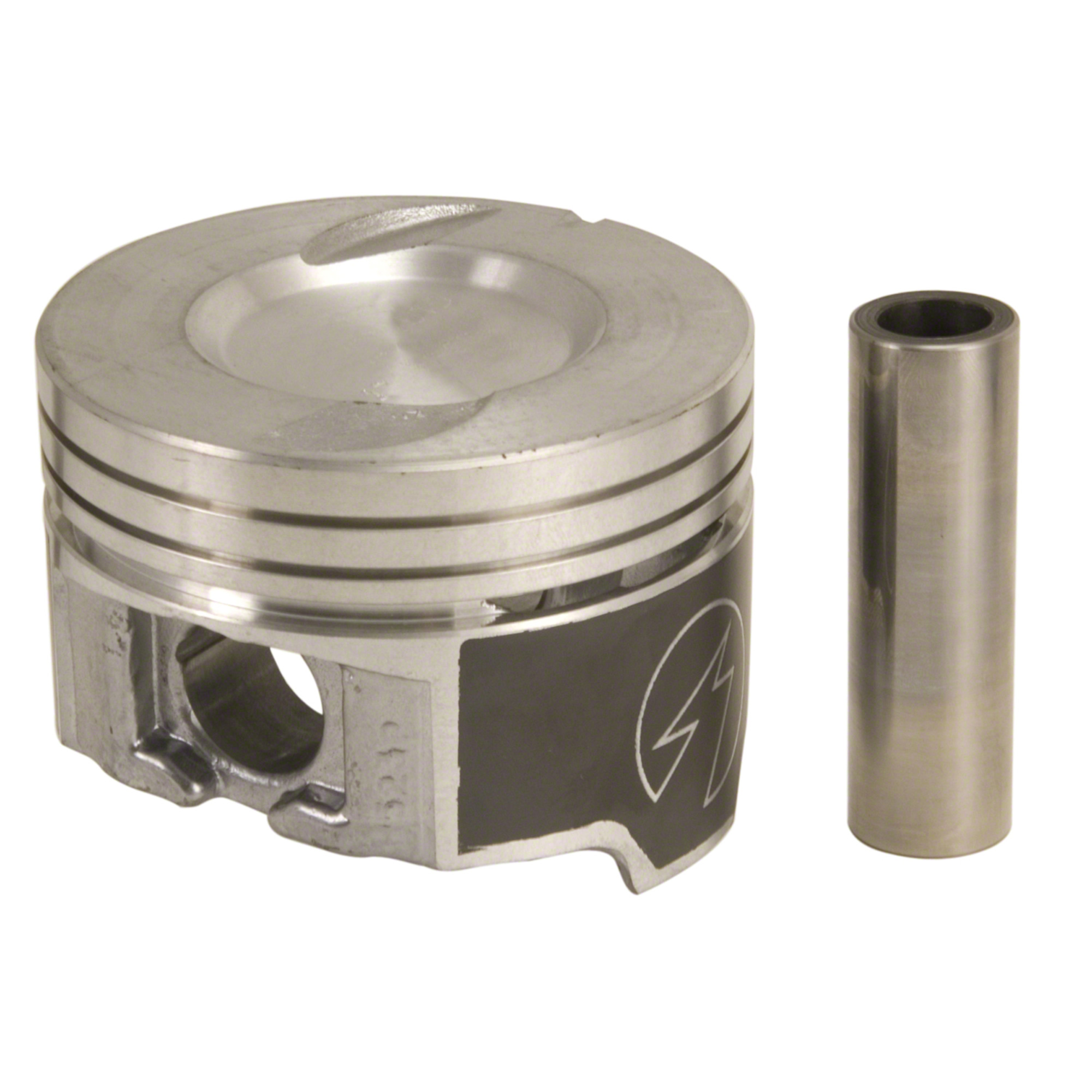

| Part Terminology | Engine Piston |
