| Piston Head Type | Recessed |
| Oversized | No |
| Heavy Duty Supplier | Yes |
| Bore (Inch) | 4.0000 |
| Note 2 | Single Piston |
| Pin Type | P |
| Assembly Lubricant Included | No |
| Note 1 | Standard Size |
| Ring 1 Qty | 2 |
| Top Compression Ring Thickness | 1.50 |
| Standard Size | Standard |
| Ring 2 Width | 4.00mm |
| Cylinder Bore Diameter | 101.6 |
| Head Type | Recessed Head Rectangular Dish volume 11.23cc; DUROSHIELD~ skirt coated piston |
| Bore (MM) | 101.6000 |
| Pin Diameter (Inch) | 0.9842 |

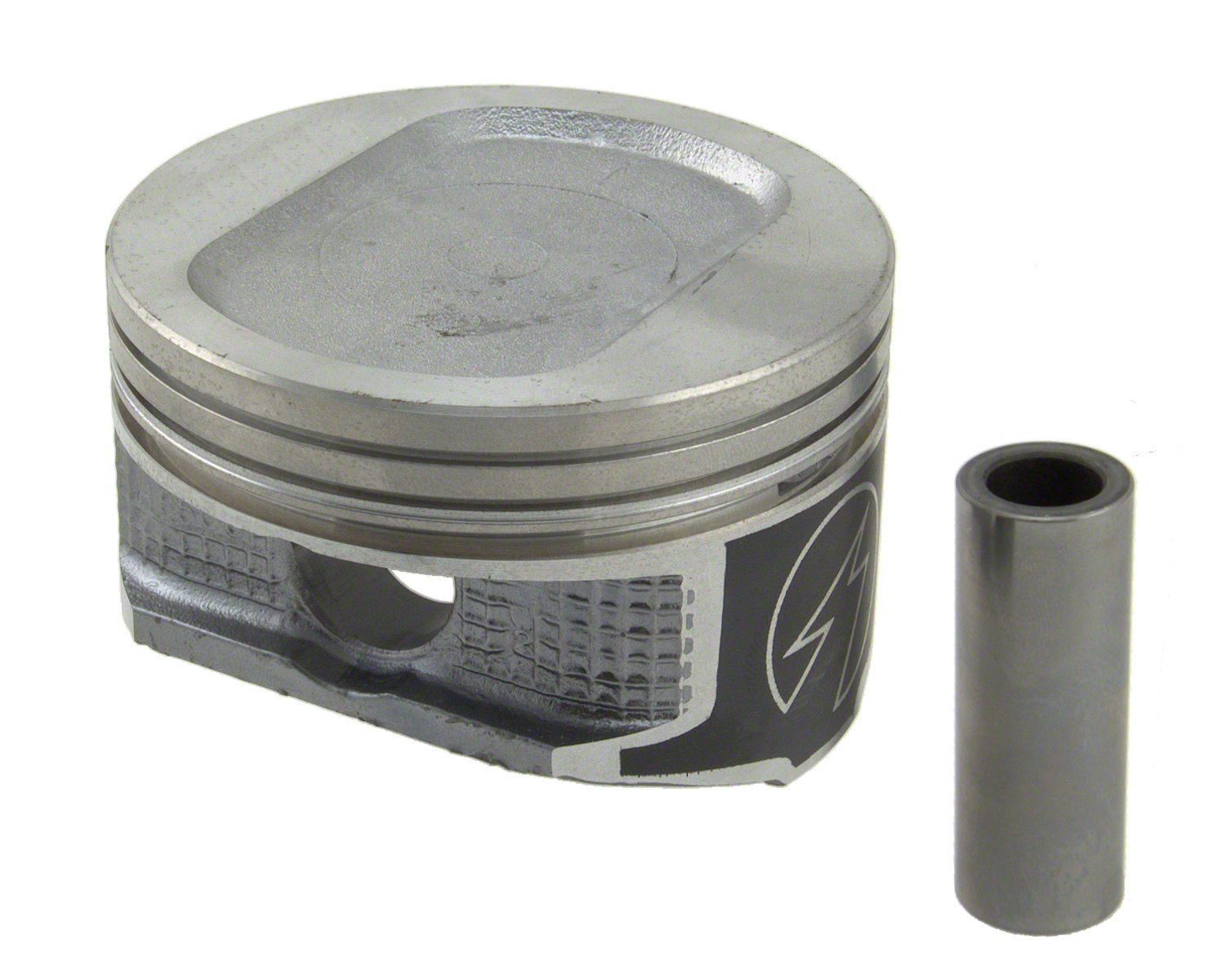

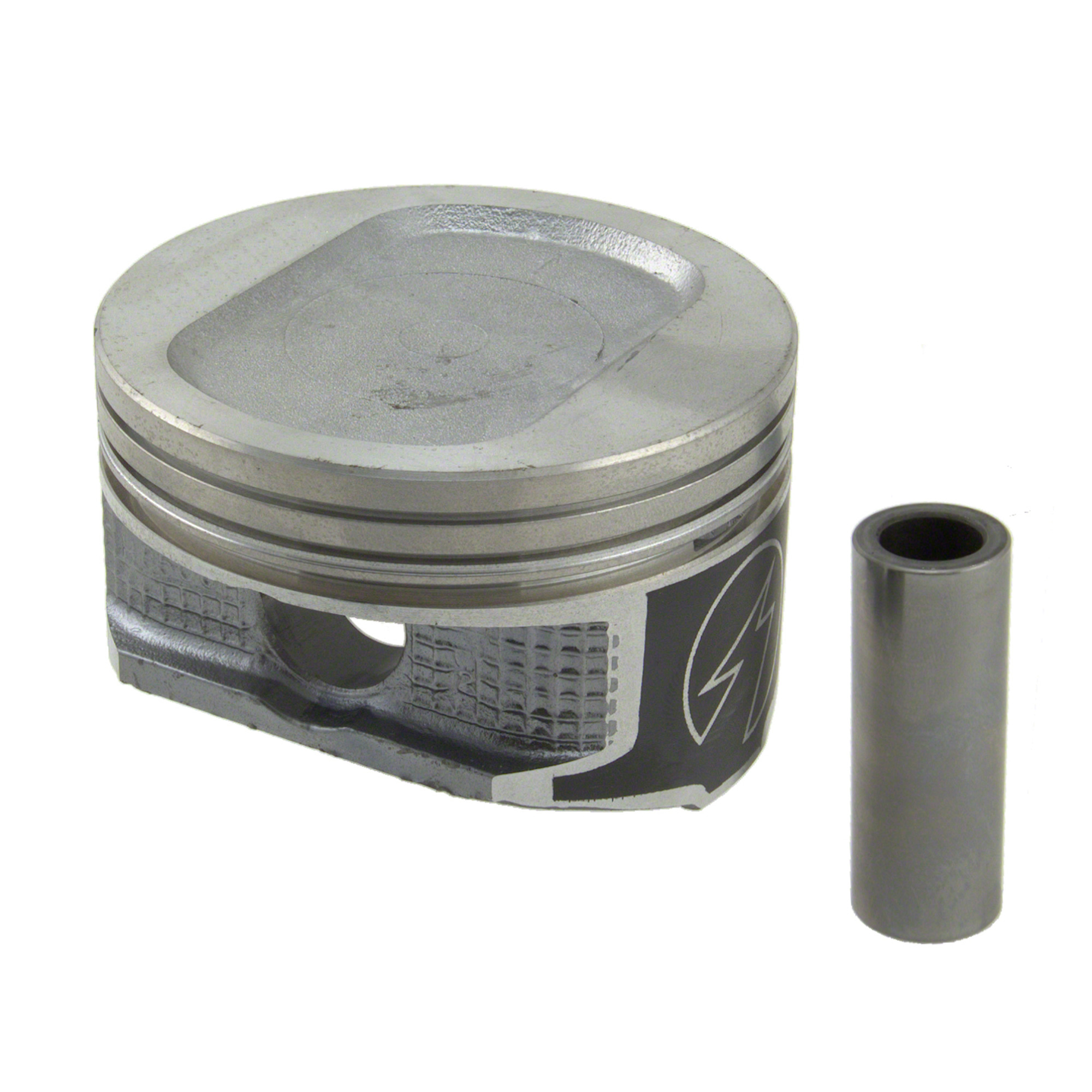

| Part Description | Engine Piston |
| Minimum Clearance | See Piston Fitting Information on carton label |
| Package Alert | Single Piston |
| Part Material | Hypereutectic |
| Oil Ring Thickness | 4.00 |
| Pin Offset (MM) | 1.524 |
| Piston Pin Outside Diameter | 24.999 |
| Dome Volume CC | Negative 011.2 |
| Second Compression Ring Thickness | 1.50 |
| Pin Diameter (MM) | 24.999 |
| Compression Distance | 1.612 |
| Prop 65 Label (Yes/No) | No |
| Piston Material | Hypereutectic |
| Pin Offset (Inch) | 0.06 |
| Ring 2 Qty | 1 |
| Grade Type | Premium |
| Ring 1 Width | 1.50mm |
| Head Illustration | 14 |
| Part Terminology | Engine Piston |
