| Oversized | No |
| Heavy Duty Supplier | Yes |
| Bore (Inch) | 4.3600 |
| Weight W Pin Gram | 00953.+/- 00. |
| Note 2 | Check piston grooving before supplying ring set |
| Pin Type | P |
| Assembly Lubricant Included | No |
| Note 1 | Standard Size |
| Ring 1 Qty | 2 |
| Top Compression Ring Thickness | 2.00 |
| Standard Size | Standard |
| Ring 2 Width | 4.00mm |
| Cylinder Bore Diameter | 4.3600 |
| Head Type | Oblong Recessed Head .189 deep w/2 valve reliefs; DUROSHIELD~ skirt coated piston |
| Bore (MM) | 110.7400 |
| Pin Diameter (Inch) | 1.0402 |

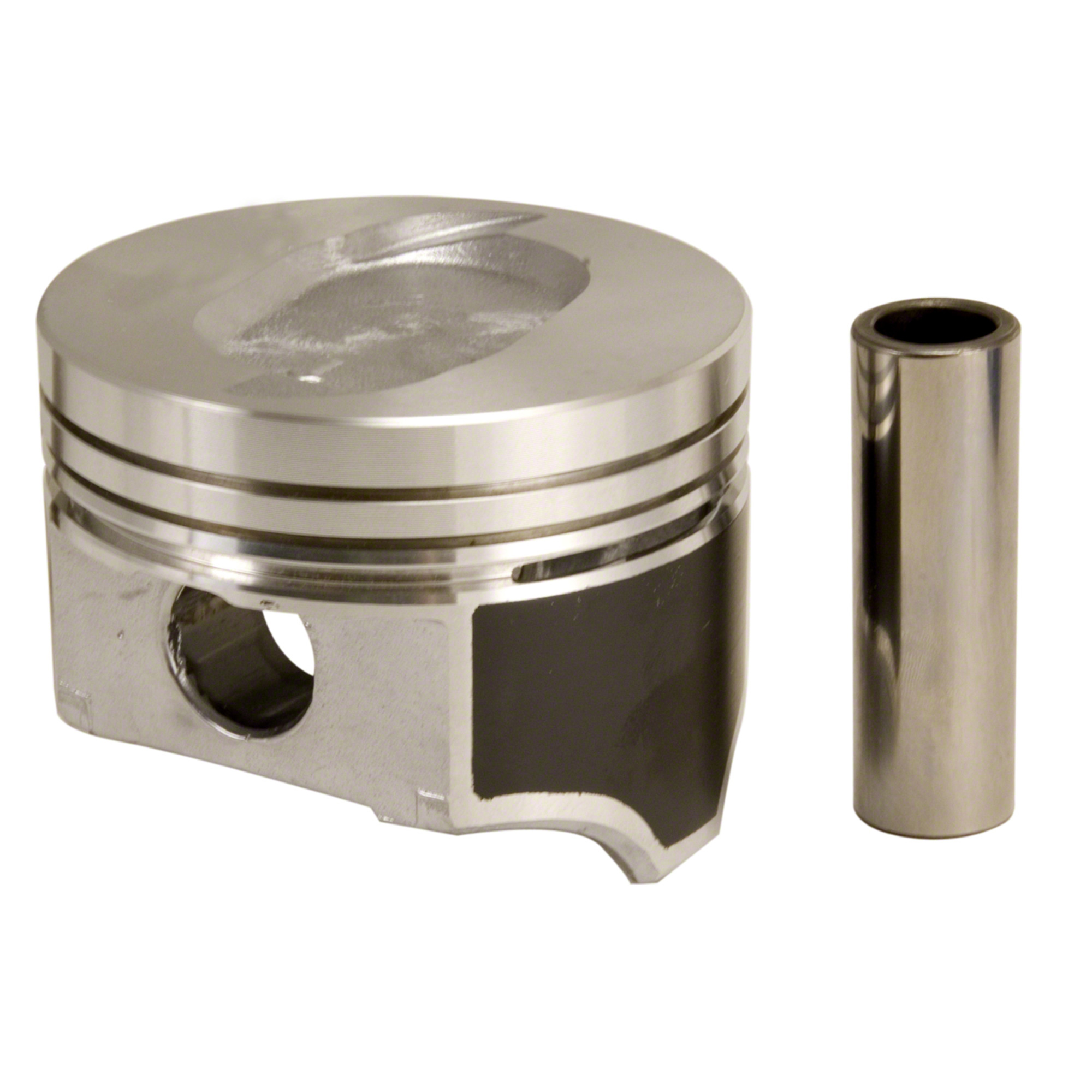

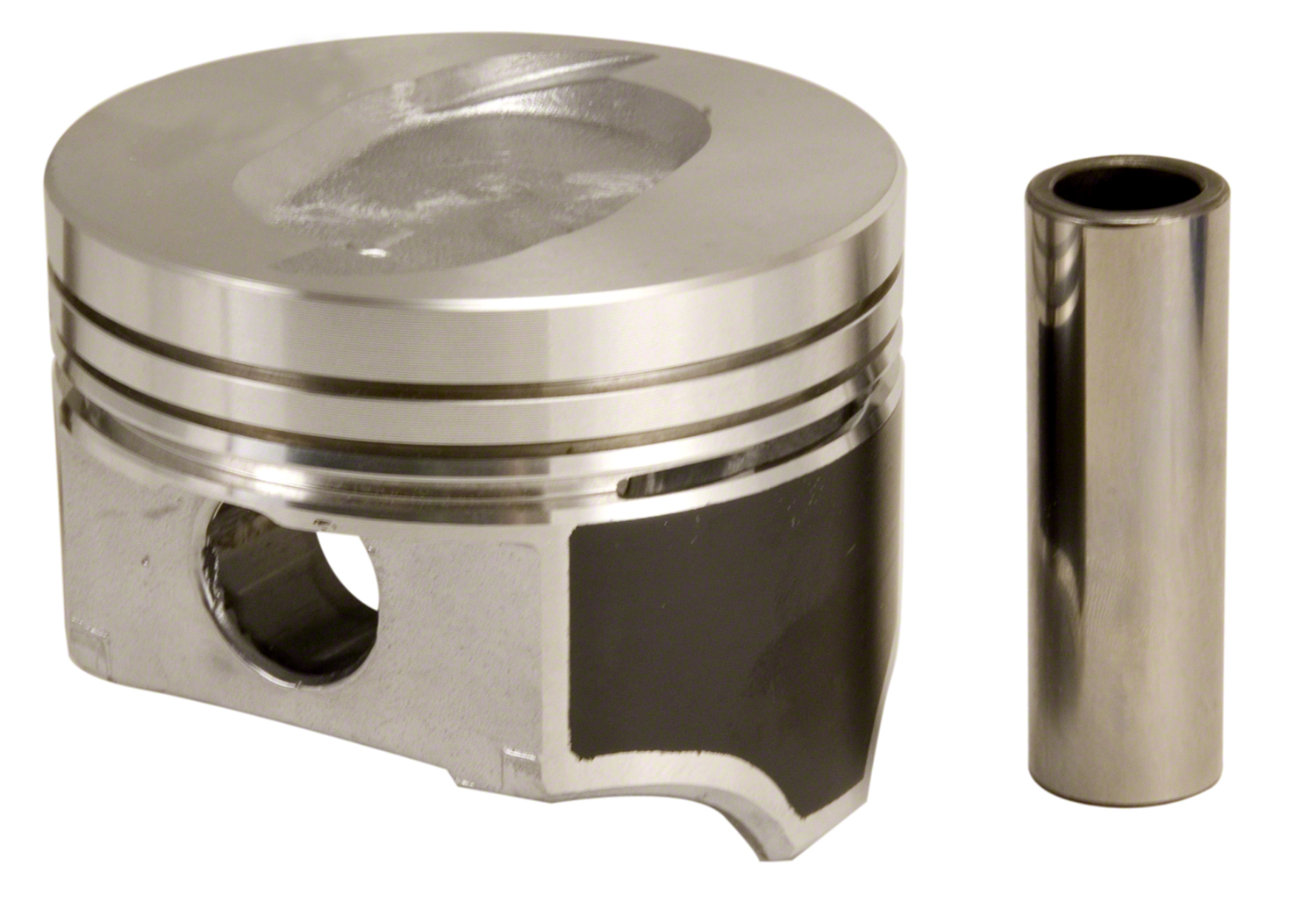

| Part Description | Engine Piston |
| Minimum Clearance | See Piston Fitting Information on carton label |
| Package Alert | Single Piston |
| Part Material | Hypereutectic |
| Oil Ring Thickness | 4.00 |
| Pin Offset (MM) | 1.524 |
| Piston Pin Outside Diameter | 26.421 |
| Dome Volume CC | Negative 012.0 |
| Second Compression Ring Thickness | 2.00 |
| Pin Diameter (MM) | 26.421 |
| Part Alert | Check piston grooving before supplying ring set |
| Compression Distance | 1.772 |
| Piston Material | Hypereutectic |
| Pin Offset (Inch) | 0.06 |
| Ring 2 Qty | 1 |
| Ring 1 Width | 2.00mm |
| Head Illustration | 41 |
| Part Terminology | Engine Piston |
