| Pin Diameter (Inch) | 1.0402 |
| Minimum Clearance | See Piston Fitting Information on carton label |
| Package Alert | Single Piston |
| Oversize Inch | 0.030 |
| Heavy Duty Supplier | Yes |
| Part Material | Hypereutectic |
| Bore (Inch) | 4.3600 |
| Note 2 | Single Piston |
| Pin Offset (MM) | 1.524 |
| Ring 1 Qty | 2 |
| Note 1 | Oversize Inch .030 |
| Dome Volume CC | Negative 021.0 |
| Pin Diameter (MM) | 26.421 |
| Compression Distance | 1.752 |
| Ring 2 Width | 3/16 |

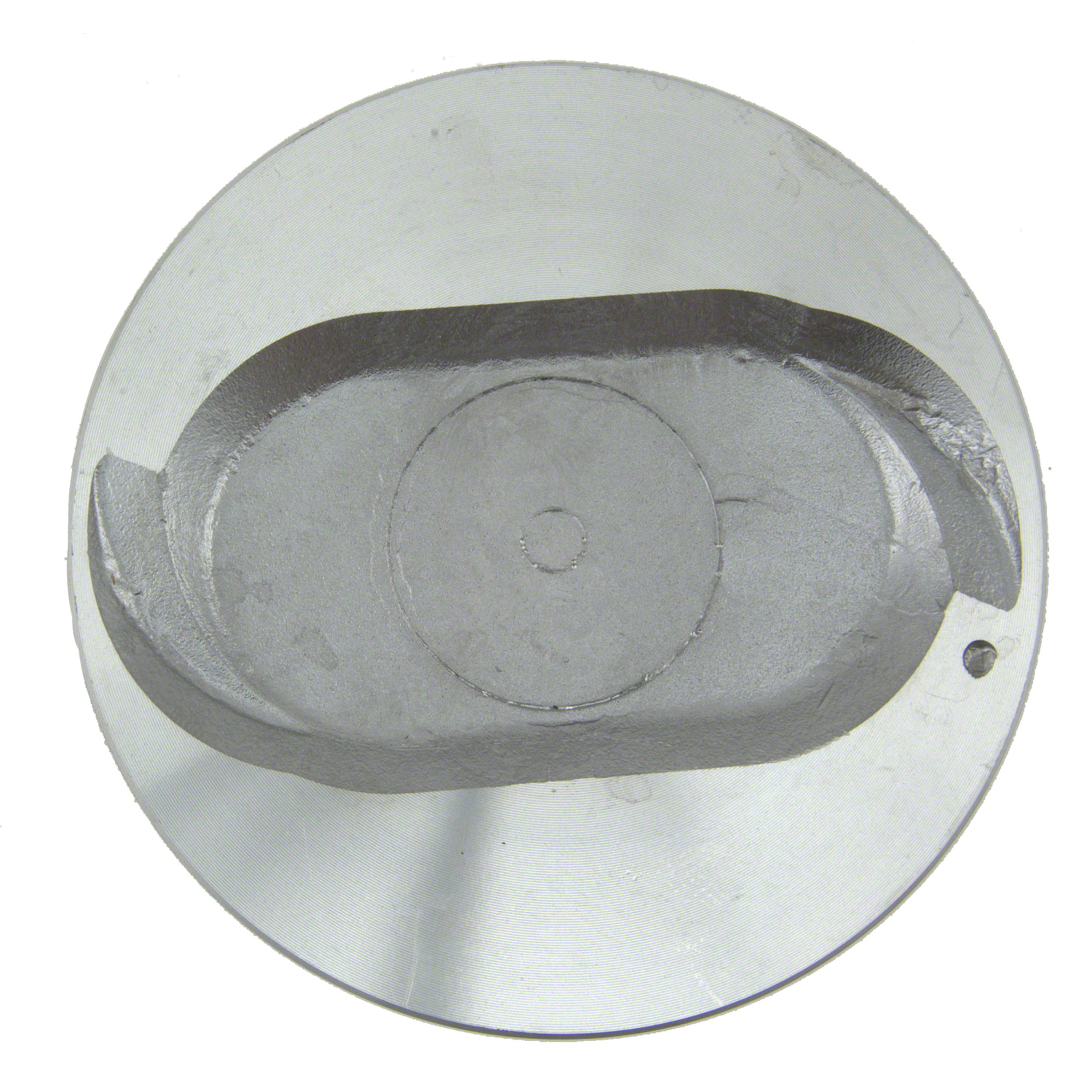

| Head Type | Oblong Recessed Head .240 deep - 8.0:1 C.R.; DUROSHIELD~ skirt coated piston |
| Bore (MM) | 110.7400 |
| Pin Offset (Inch) | 0.06 |
| Ring 2 Qty | 1 |
| Ring 1 Width | 5/64 |
| Head Illustration | 44 |
| Part Terminology | Engine Piston |
