| Pin Diameter (Inch) | 0.9751 |
| Minimum Clearance | 0.001 @ 2.800 from top of head |
| Package Alert | Single Piston |
| Oversize Inch | 0.040 |
| Heavy Duty Supplier | Yes |
| Part Material | Hypereutectic |
| Bore (Inch) | 4.0500 |
| Note 2 | Single Piston |
| Pin Offset (MM) | 1.524 |
| Ring 3 Width | 3/16 |
| Ring 3 Qty | 1 |
| Note 1 | Oversize Inch .040 |
| Ring 1 Qty | 1 |
| Pin Diameter (MM) | 24.768 |
| Compression Distance | 1.759 |
| Ring 2 Width | 3/32 |

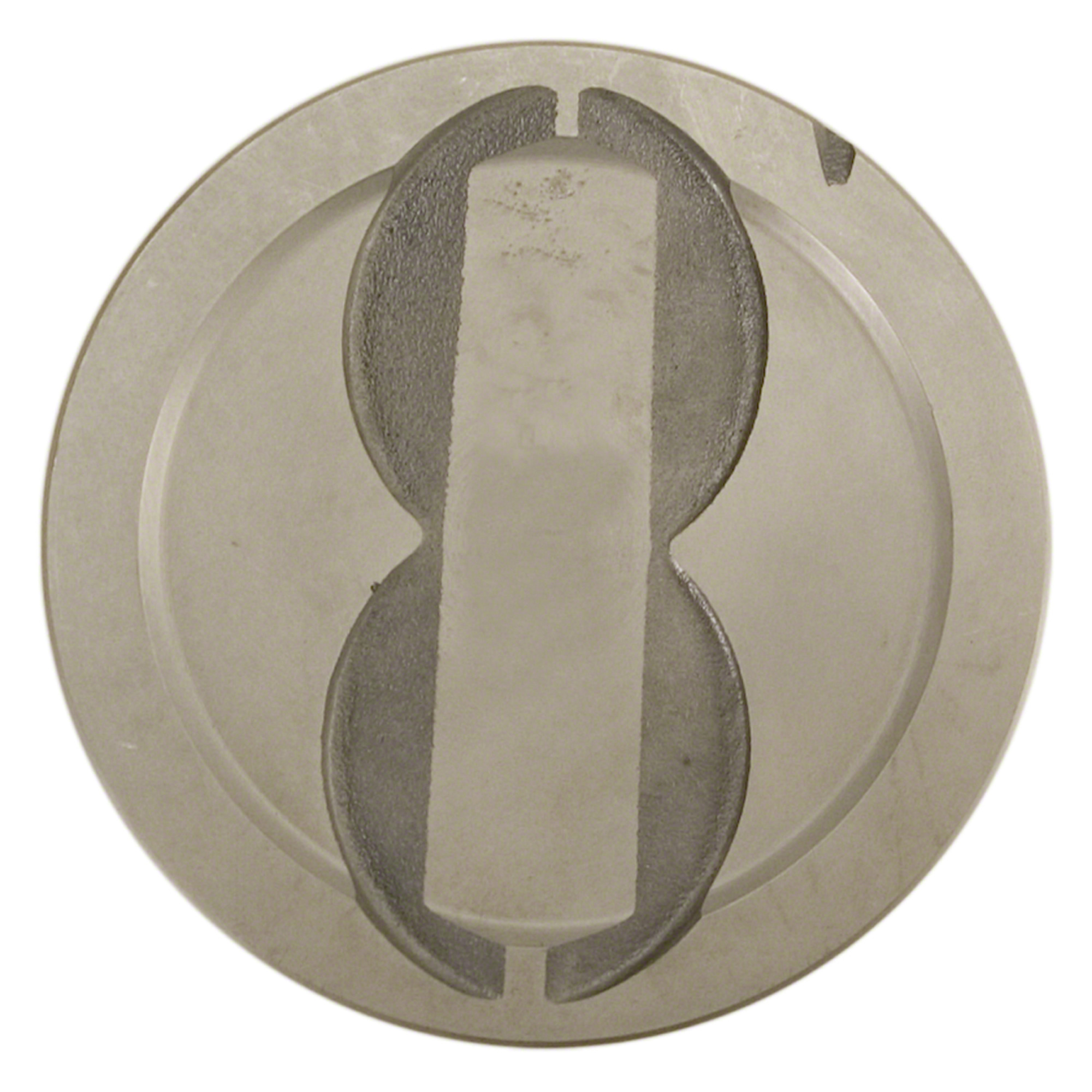

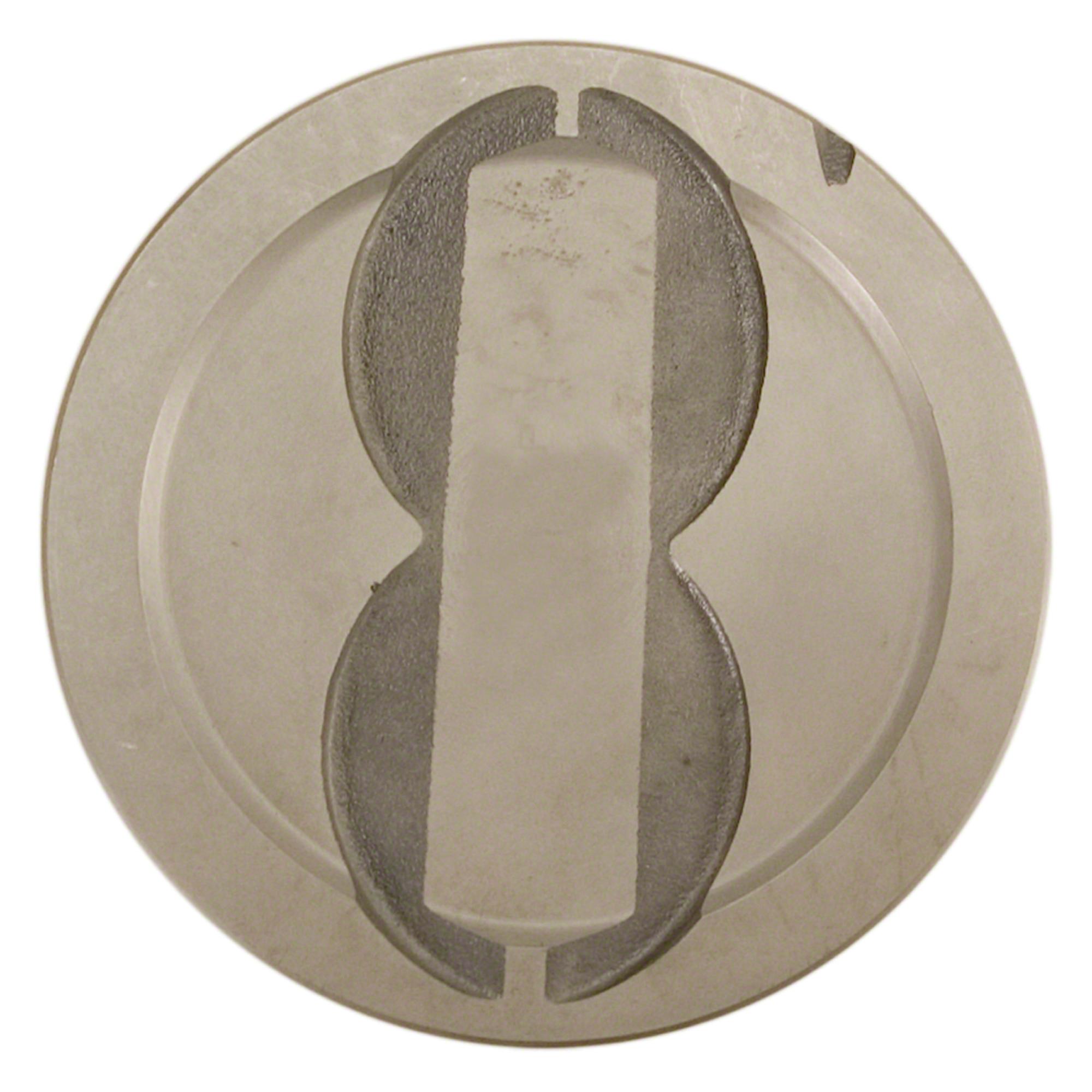

| Head Type | Recessed Head .080 deep x 3.220 dia. w/4 valve reliefs |
| Bore (MM) | 101.6000 |
| Pin Offset (Inch) | 0.06 |
| Ring 2 Qty | 1 |
| Ring 1 Width | 5/64 |
| Head Illustration | 184 |
| Part Terminology | Engine Piston |
