| Pin Diameter (Inch) | 0.8749 |
| Minimum Clearance | 0.0025 @ .940 from bottom of skirt |
| Package Alert | Single Piston |
| Oversize Inch | 0.030 |
| Heavy Duty Supplier | Yes |
| Part Material | Cast |
| Bore (Inch) | 3.5625 |
| Note 2 | Single Piston |
| Ring 3 Width | 3/16 |
| Ring 3 Qty | 1 |
| Note 1 | Oversize Inch .030 |
| Ring 1 Qty | 1 |
| Pin Diameter (MM) | 22.222 |
| Compression Distance | 2.500 plus .525 step |
| Ring 2 Width | 1/8 |

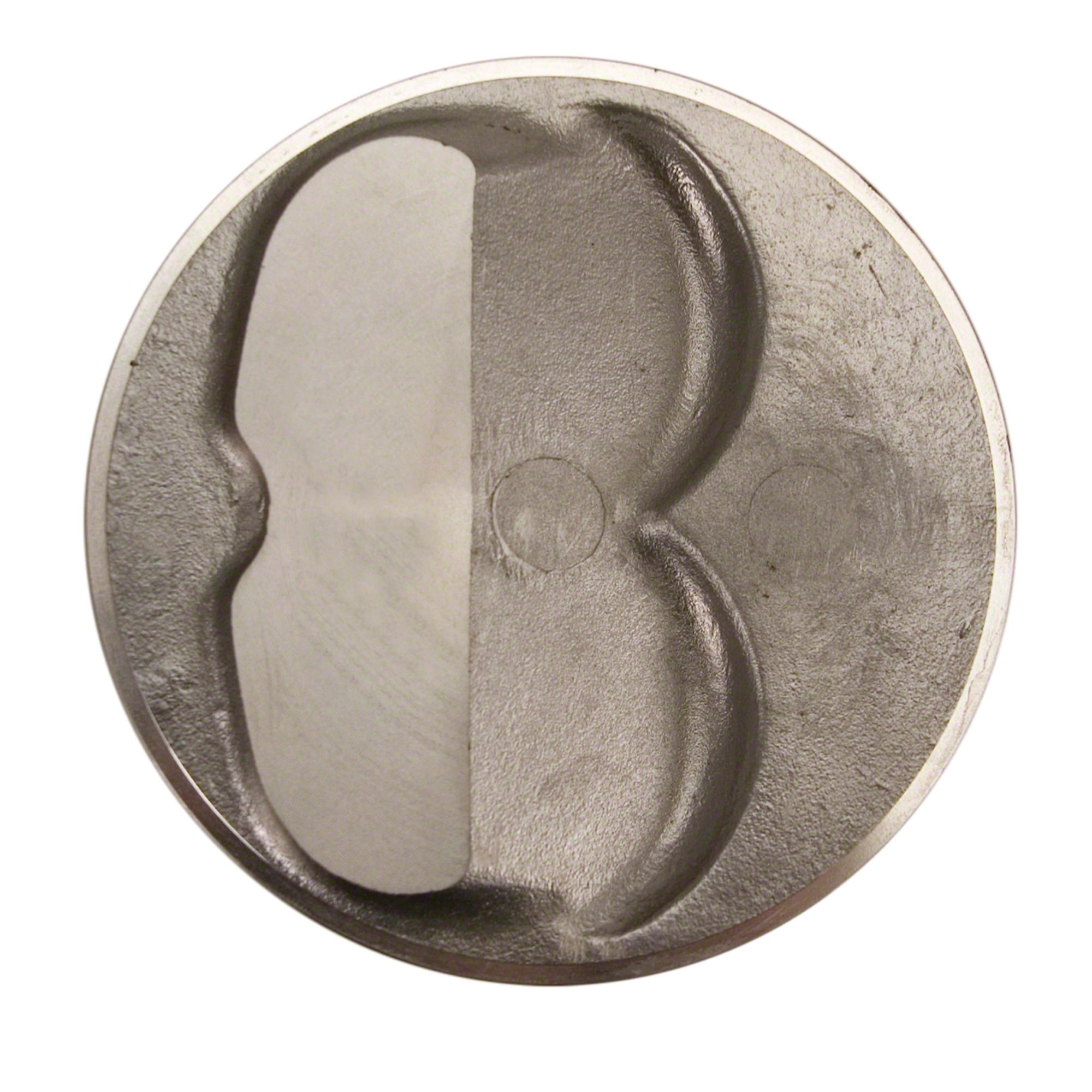

| Head Type | Step Head .525 high w/top ring groove protector |
| Bore (MM) | 90.5000 |
| Ring 2 Qty | 1 |
| Ring 1 Width | 3/32 |
| Head Illustration | 39 |

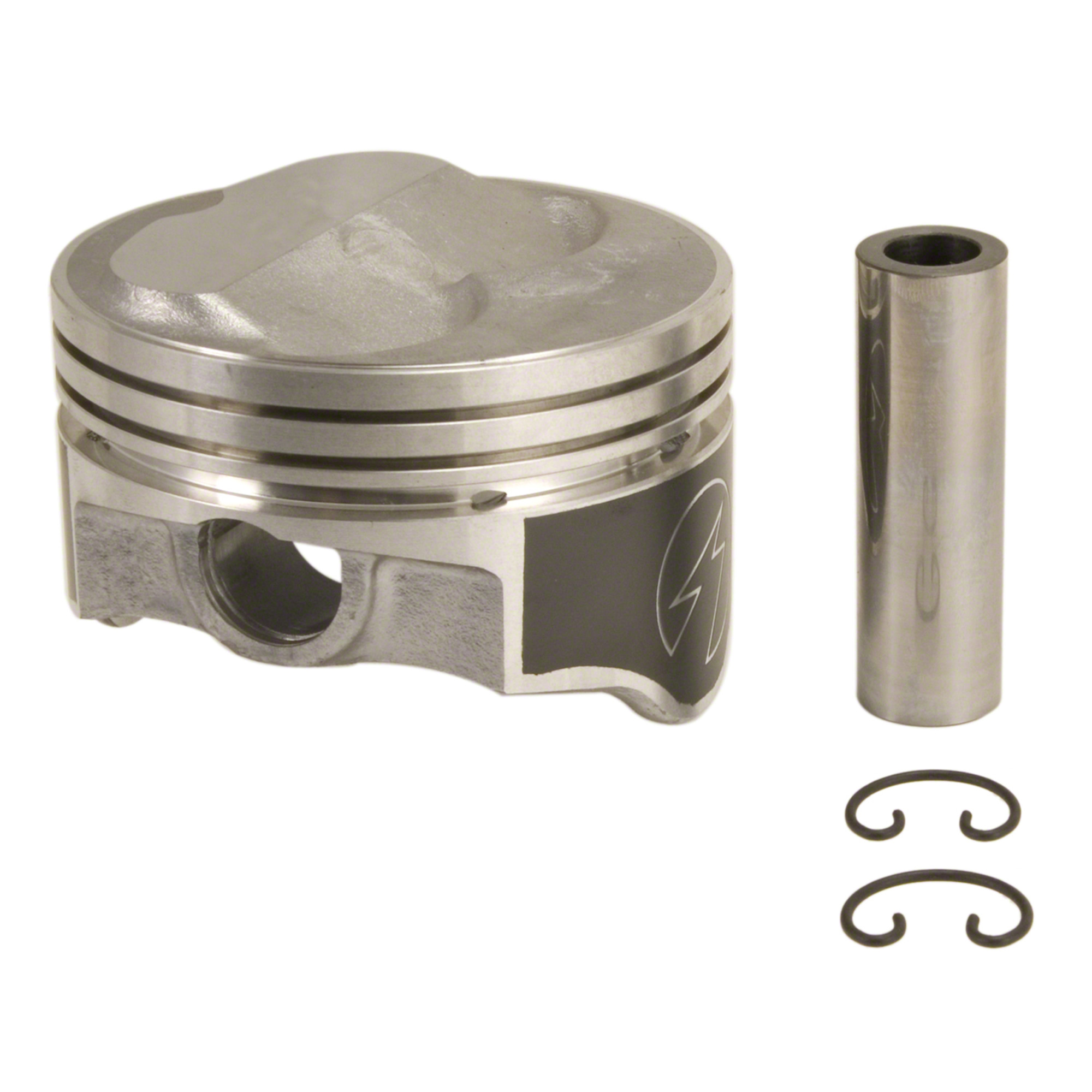

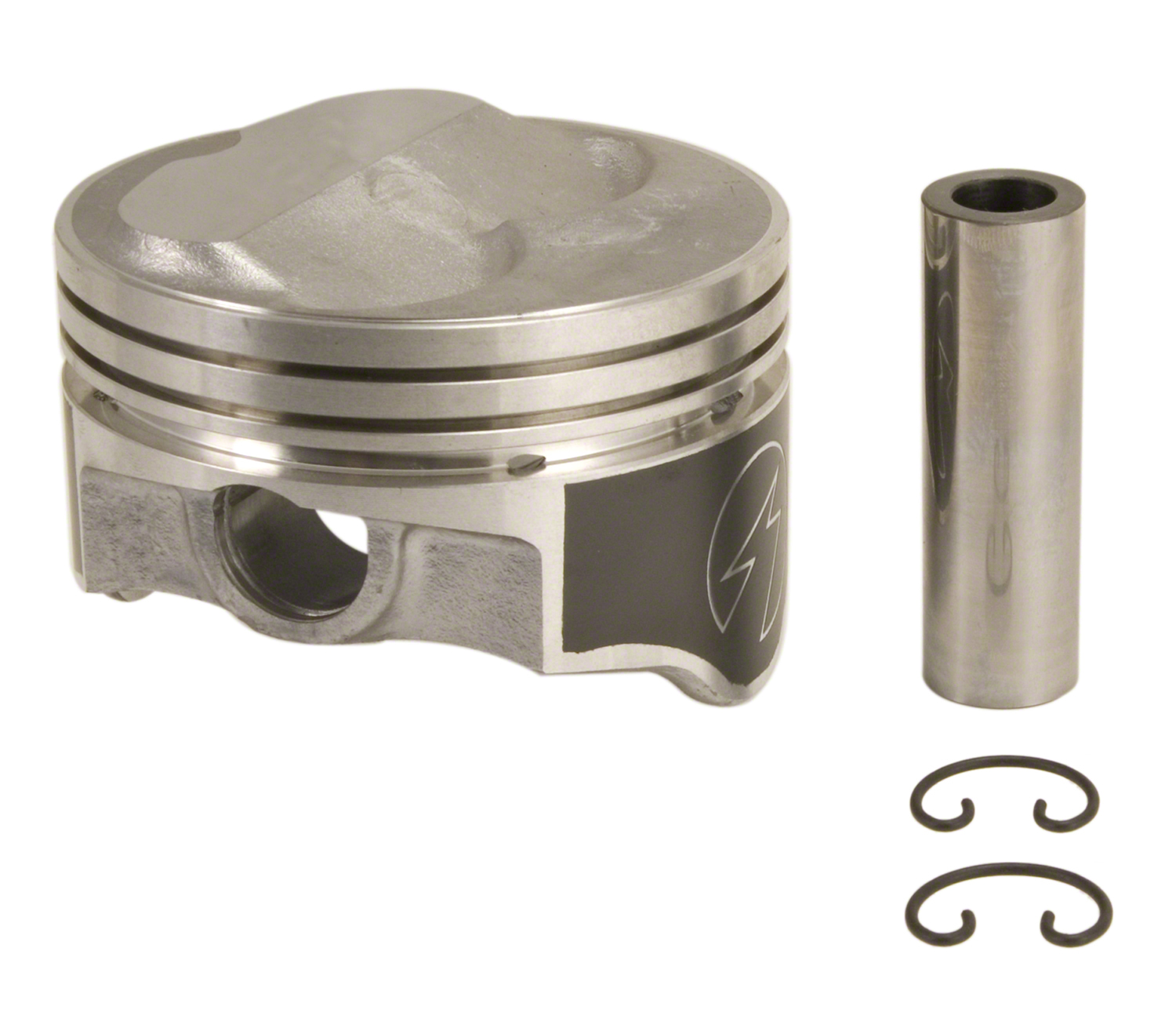

| Part Terminology | Engine Piston |
