| Pin Diameter (Inch) | 0.9999 |
| Minimum Clearance | 0.0005 @ bottom of skirt |
| Package Alert | Single Piston |
| Oversize Inch | 0.030 |
| Heavy Duty Supplier | Yes |
| Part Material | Cast |
| Bore (Inch) | 4.1875 |
| Note 2 | Single Piston |
| Ring 1 Qty | 2 |
| Note 1 | Oversize Inch .030 |
| Pin Diameter (MM) | 25.397 |
| Compression Distance | 1.905 plus .374 crown |
| Ring 2 Width | 3/16 |

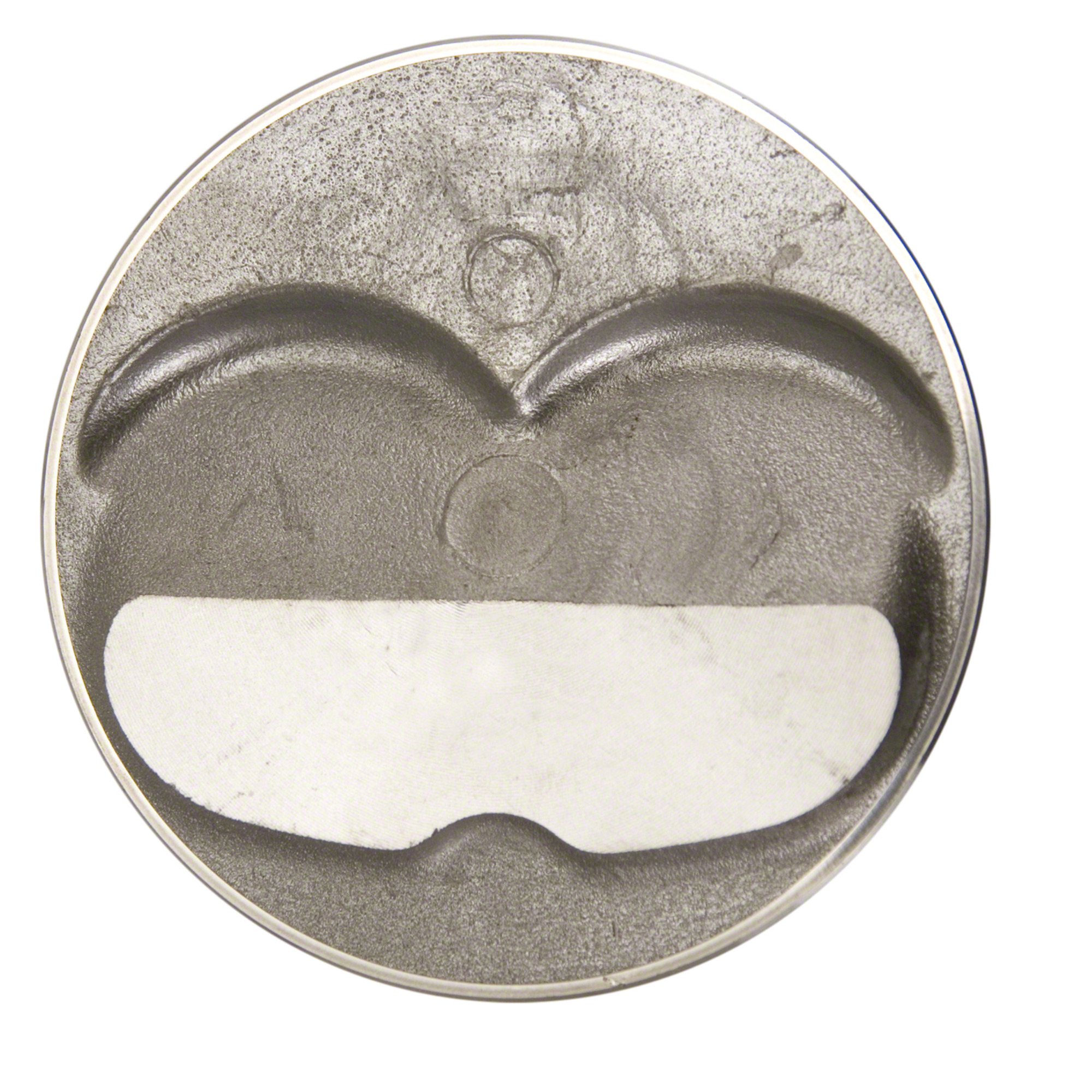

| Head Type | Domed Head - 9.8:1 C.R. |
| Bore (MM) | 106.4000 |
| Ring 2 Qty | 1 |
| Ring 1 Width | 5/64 |
| Head Illustration | 42 |

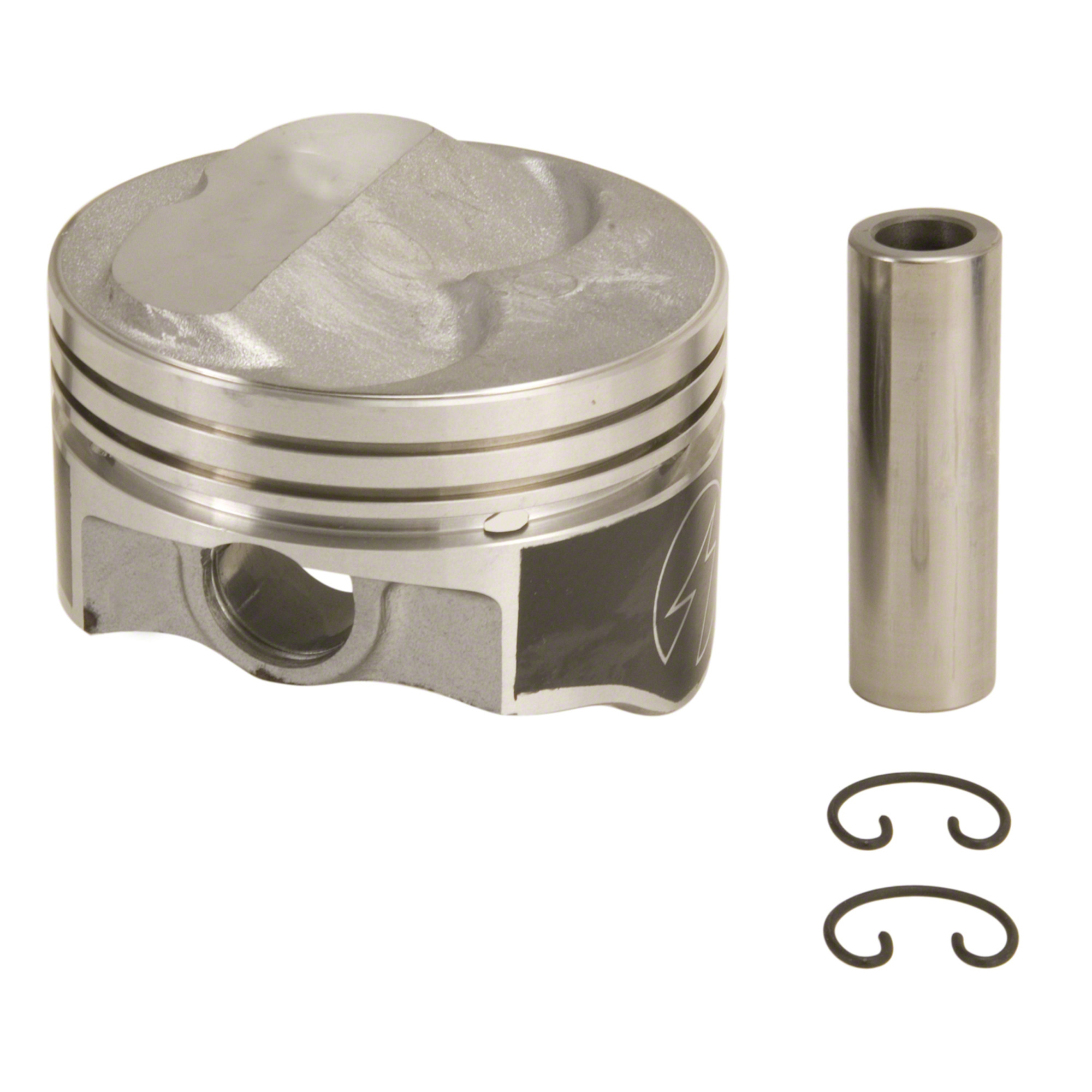

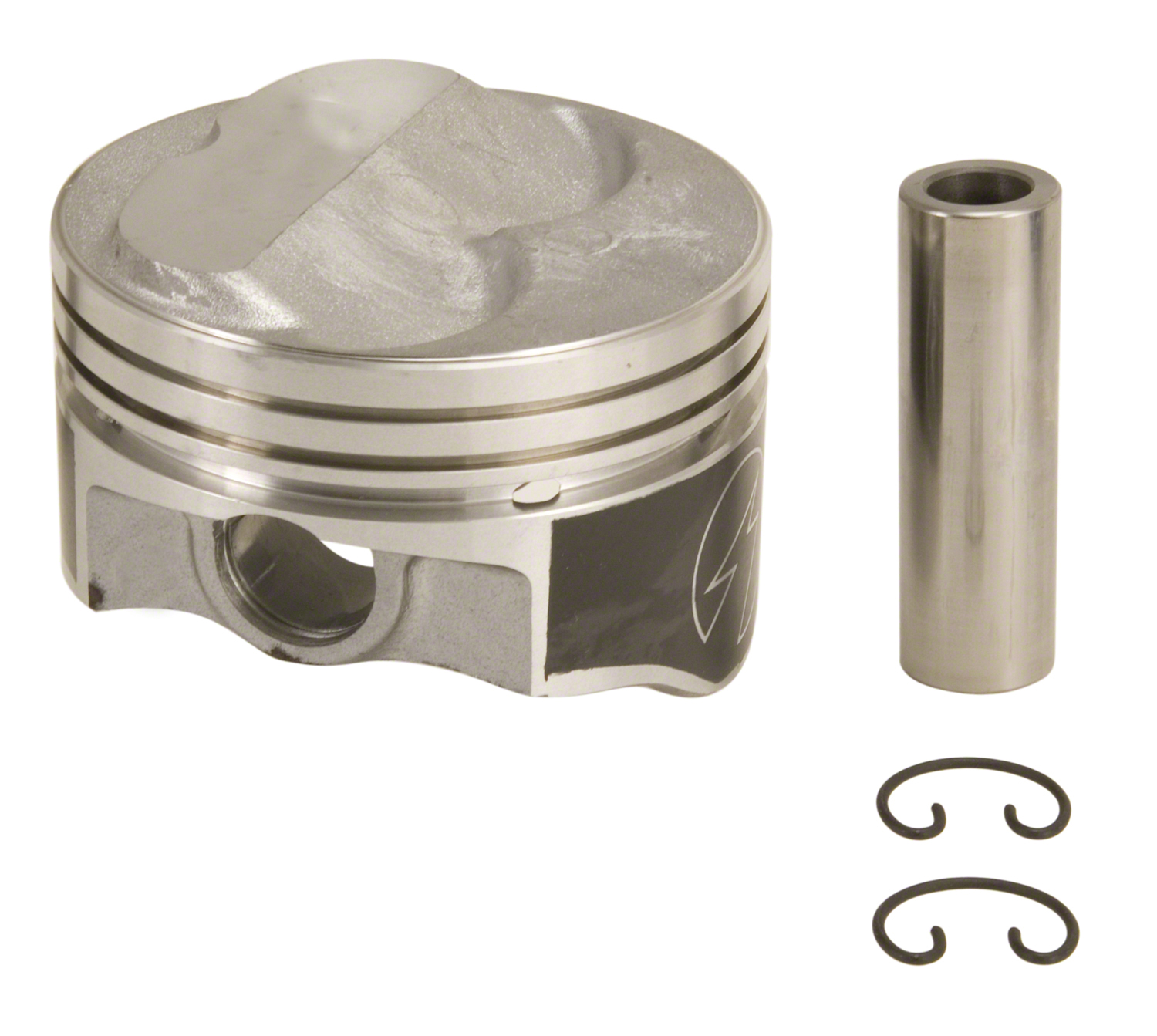

| Part Terminology | Engine Piston |
