| Pin Diameter (Inch) | 0.9122 |
| Minimum Clearance | 0.001 @ 2.310 from top of head |
| Package Alert | Single Piston |
| Oversize Inch | 0.040 |
| Heavy Duty Supplier | Yes |
| Part Material | Cast |
| Bore (Inch) | 3.7795 |
| Note 2 | Single Piston |
| Pin Offset (MM) | 1.524 |
| Ring 1 Qty | 2 |
| Note 1 | Oversize Inch .040 |
| Pin Diameter (MM) | 23.17 |
| Compression Distance | 1.578 |
| Ring 2 Width | 4.00mm |

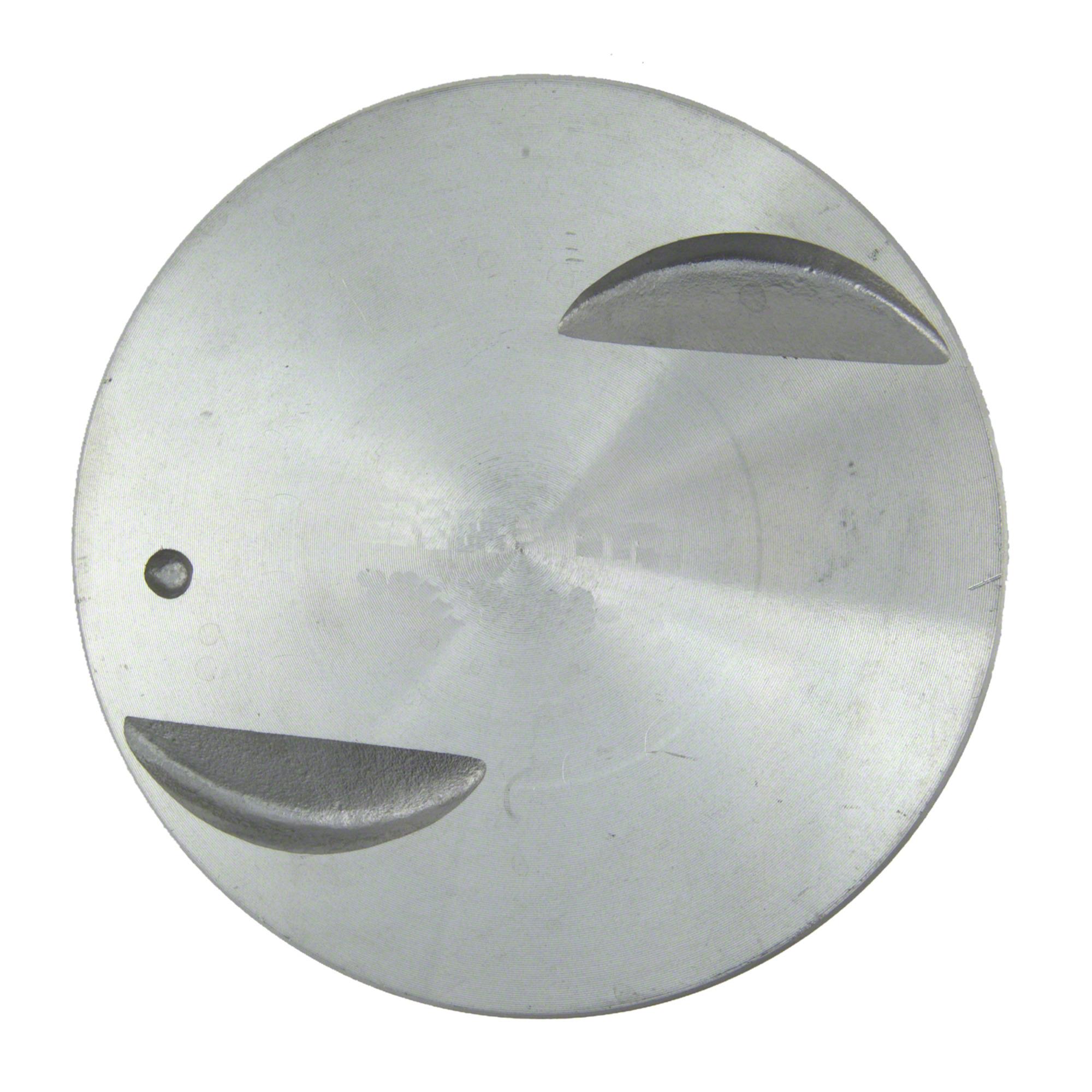

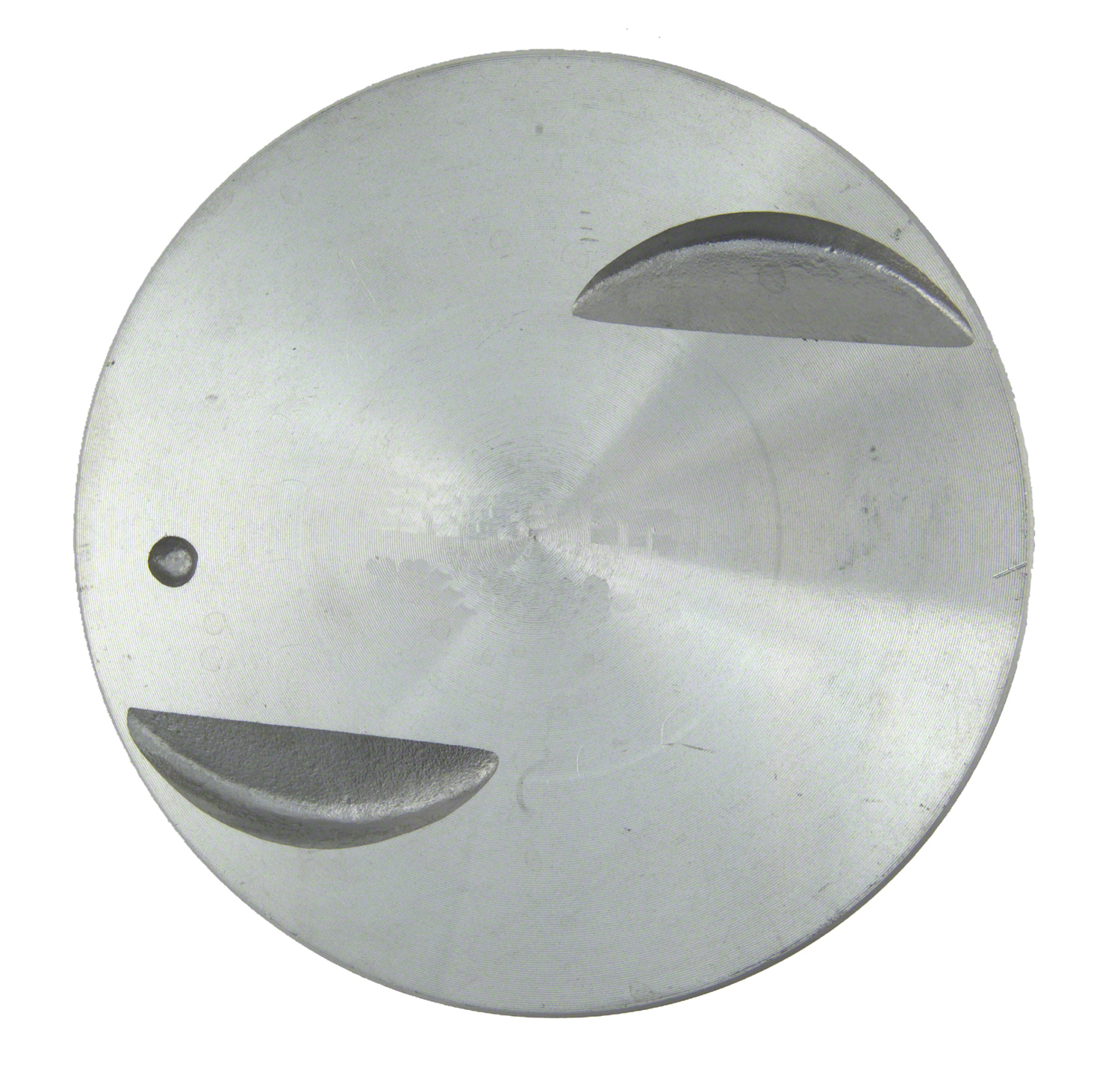

| Head Type | Flat Head w/2 valve reliefs - 8.7:1 C.R. |
| Bore (MM) | 96.0000 |
| Pin Offset (Inch) | 0.06 |
| Ring 2 Qty | 1 |
| Ring 1 Width | 1.50mm |
| Head Illustration | 5 |
| Part Terminology | Engine Piston |
