| Pin Diameter (Inch) | 0.9804 |
| Minimum Clearance | 0.001 @ 2.300 from top of head |
| Package Alert | Single Piston |
| Oversize Inch | 0.020 |
| Heavy Duty Supplier | Yes |
| Part Material | Cast |
| Bore (Inch) | 4.3510 |
| Note 2 | Single Piston |
| Pin Offset (MM) | 1.524 |
| Ring 1 Qty | 2 |
| Note 1 | Oversize Inch .020 |
| Pin Diameter (MM) | 24.902 |
| Compression Distance | 1.595 |
| Ring 2 Width | 3/16 |

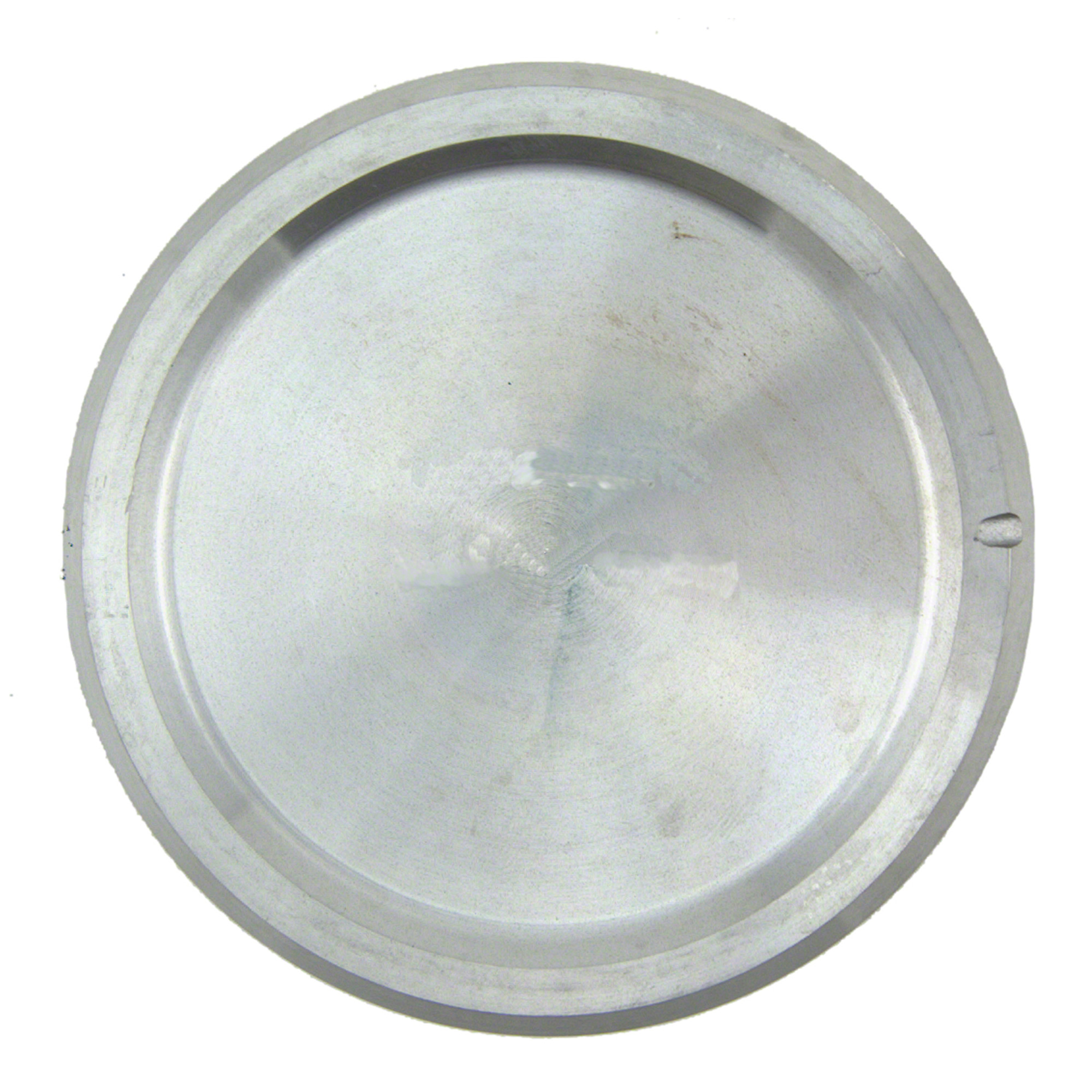

| Head Type | Recessed Head .150 deep x 3.250 dia. - 7.9:1 C.R. |
| Bore (MM) | 110.5000 |
| Pin Offset (Inch) | 0.06 |
| Ring 2 Qty | 1 |
| Ring 1 Width | 5/64 |
| Head Illustration | 43 |

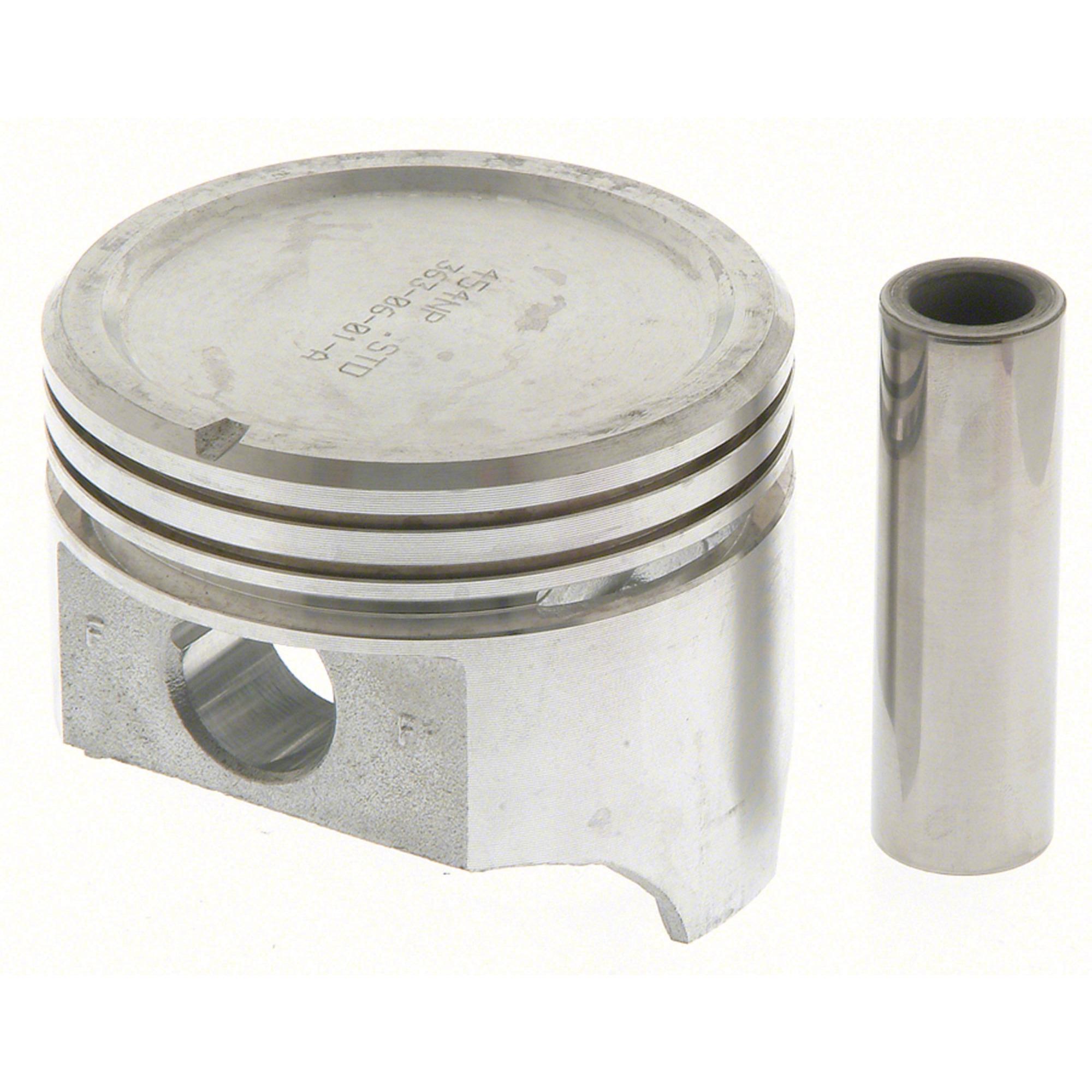

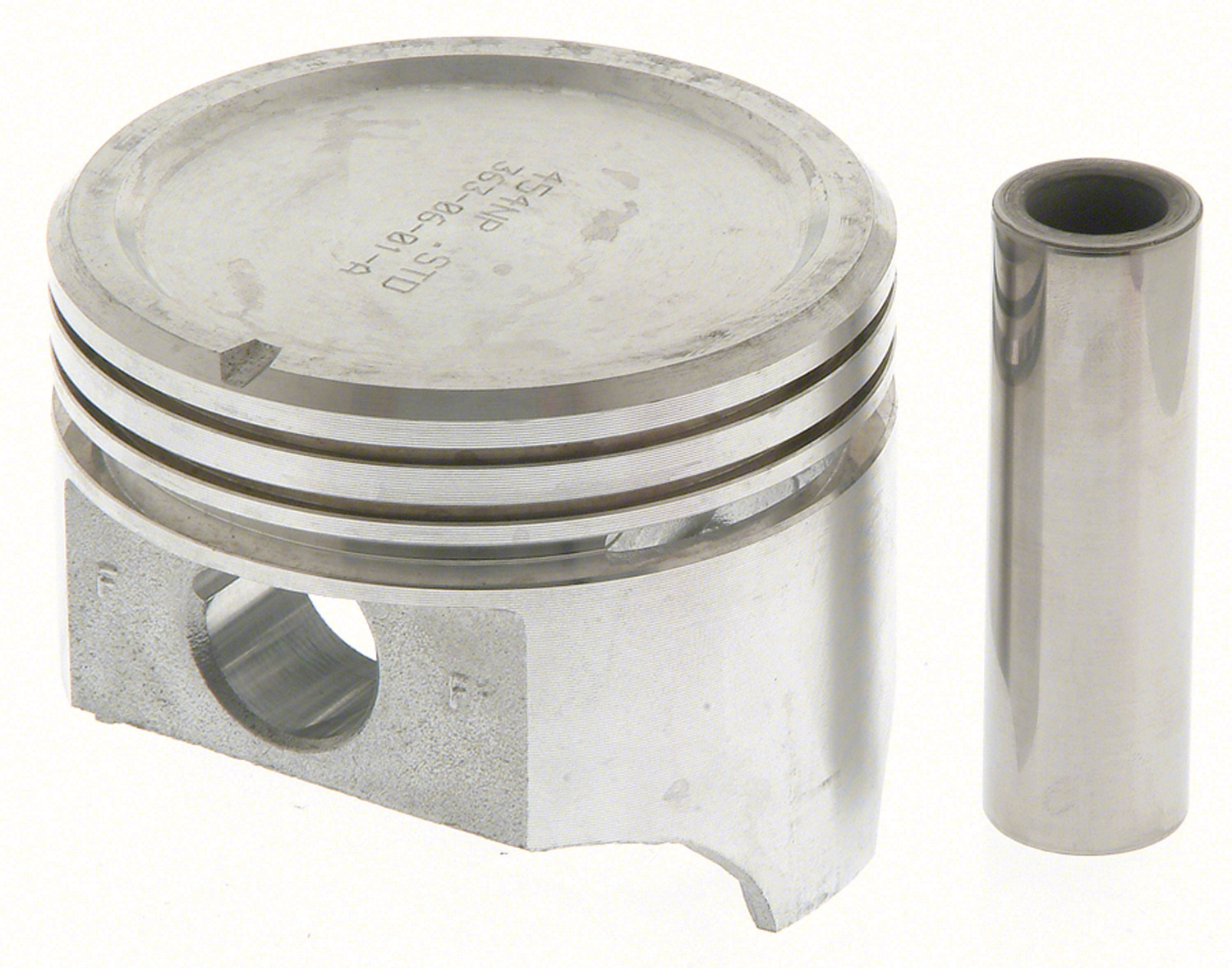

| Part Terminology | Engine Piston |
