| Pin Diameter (Inch) | 0.9894 |
| Minimum Clearance | 0.0015 @ 2.630 from top of head |
| Package Alert | Single Piston |
| Oversize Inch | 0.040 |
| Heavy Duty Supplier | Yes |
| Part Material | Cast |
| Bore (Inch) | 4.0938 |
| Note 2 | Single Piston |
| Pin Offset (MM) | 1.524 |
| Ring 1 Qty | 2 |
| Note 1 | Oversize Inch .040 |
| Pin Diameter (MM) | 25.131 |
| Compression Distance | 1.730 plus .200 step |
| Ring 2 Width | 3/16 |

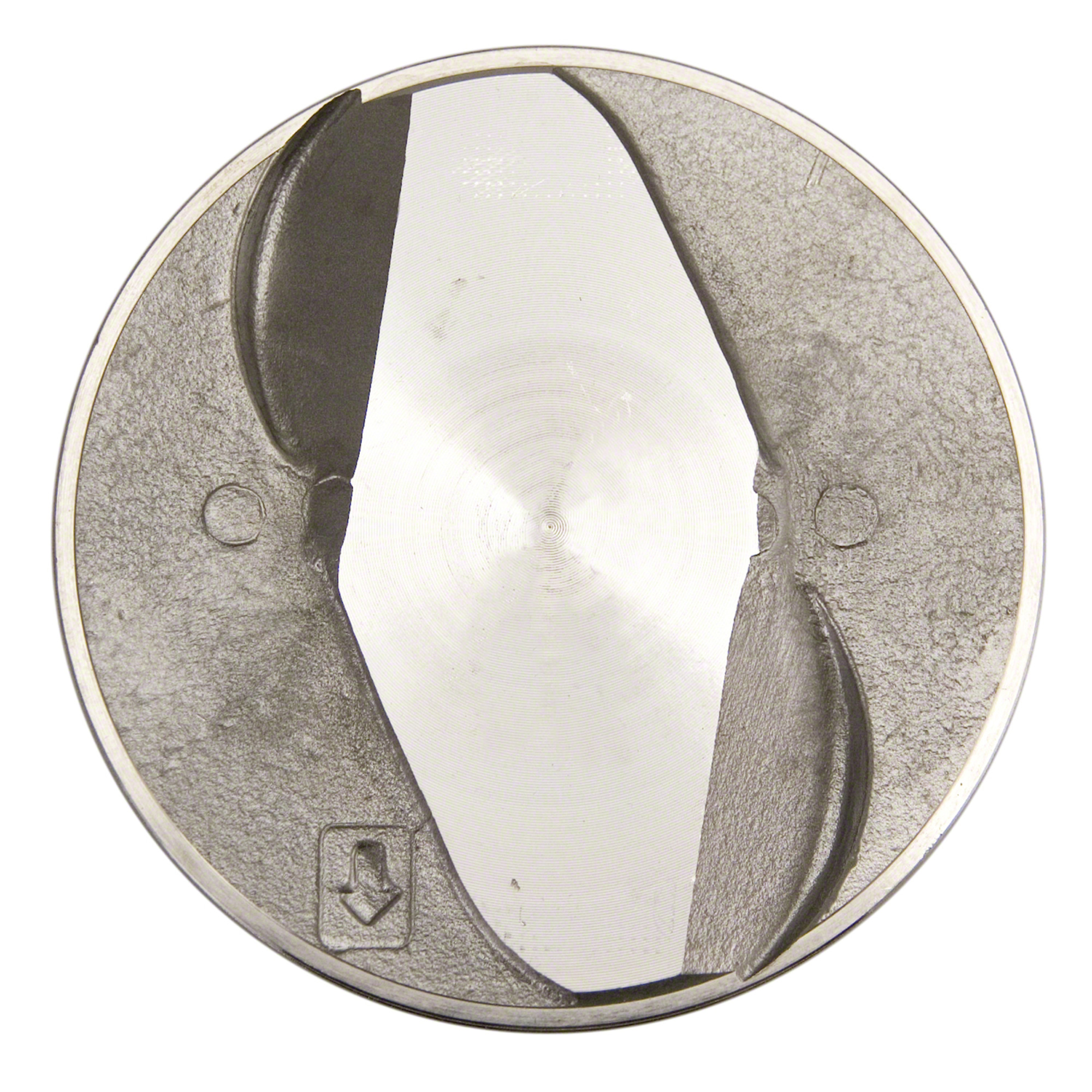

| Head Type | Step Head - 9.6:1 C.R.; Fits both L.H. & R.H. banks |
| Bore (MM) | 104.3000 |
| Pin Offset (Inch) | 0.06 |
| Ring 2 Qty | 1 |
| Ring 1 Width | 5/64 |
| Head Illustration | 3 |

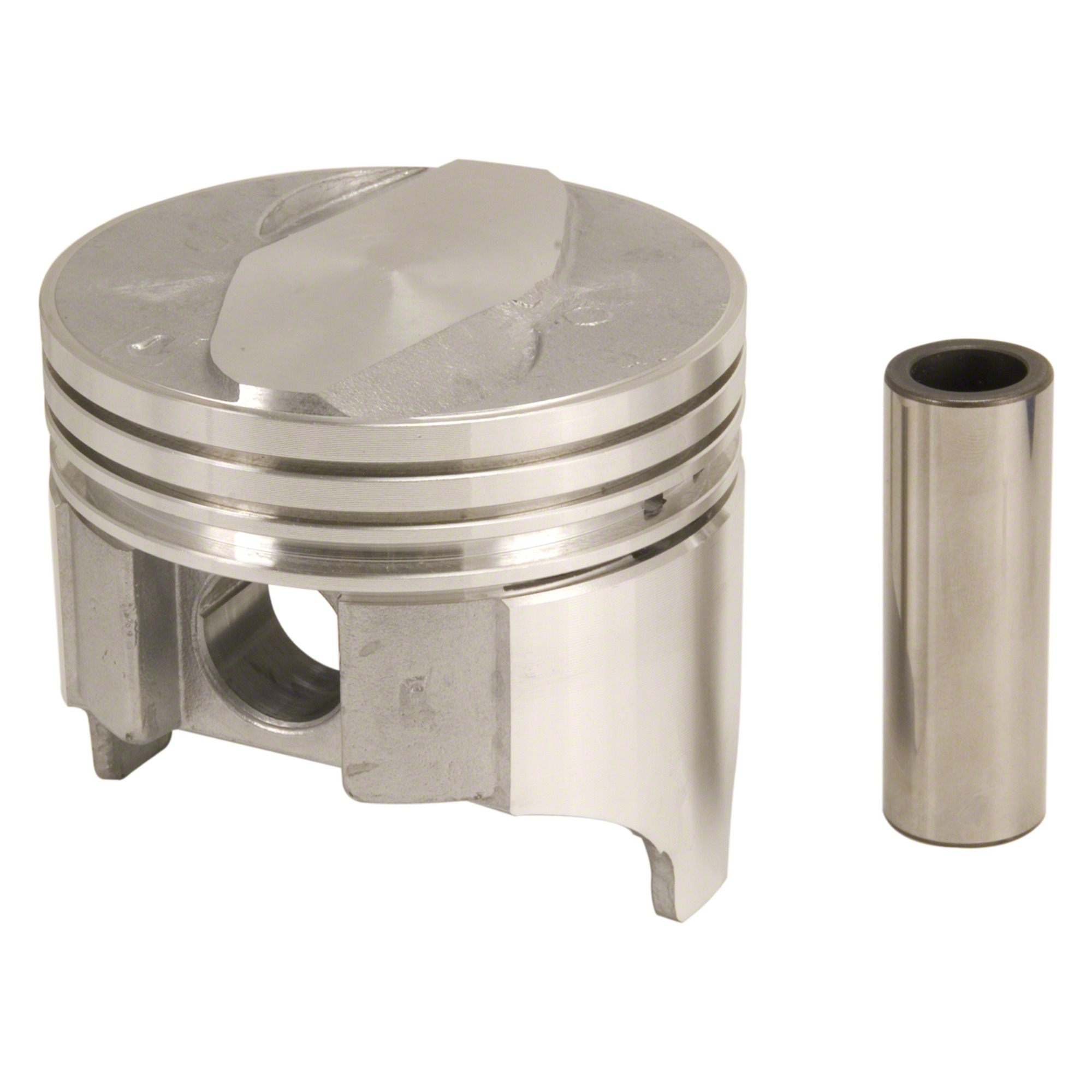

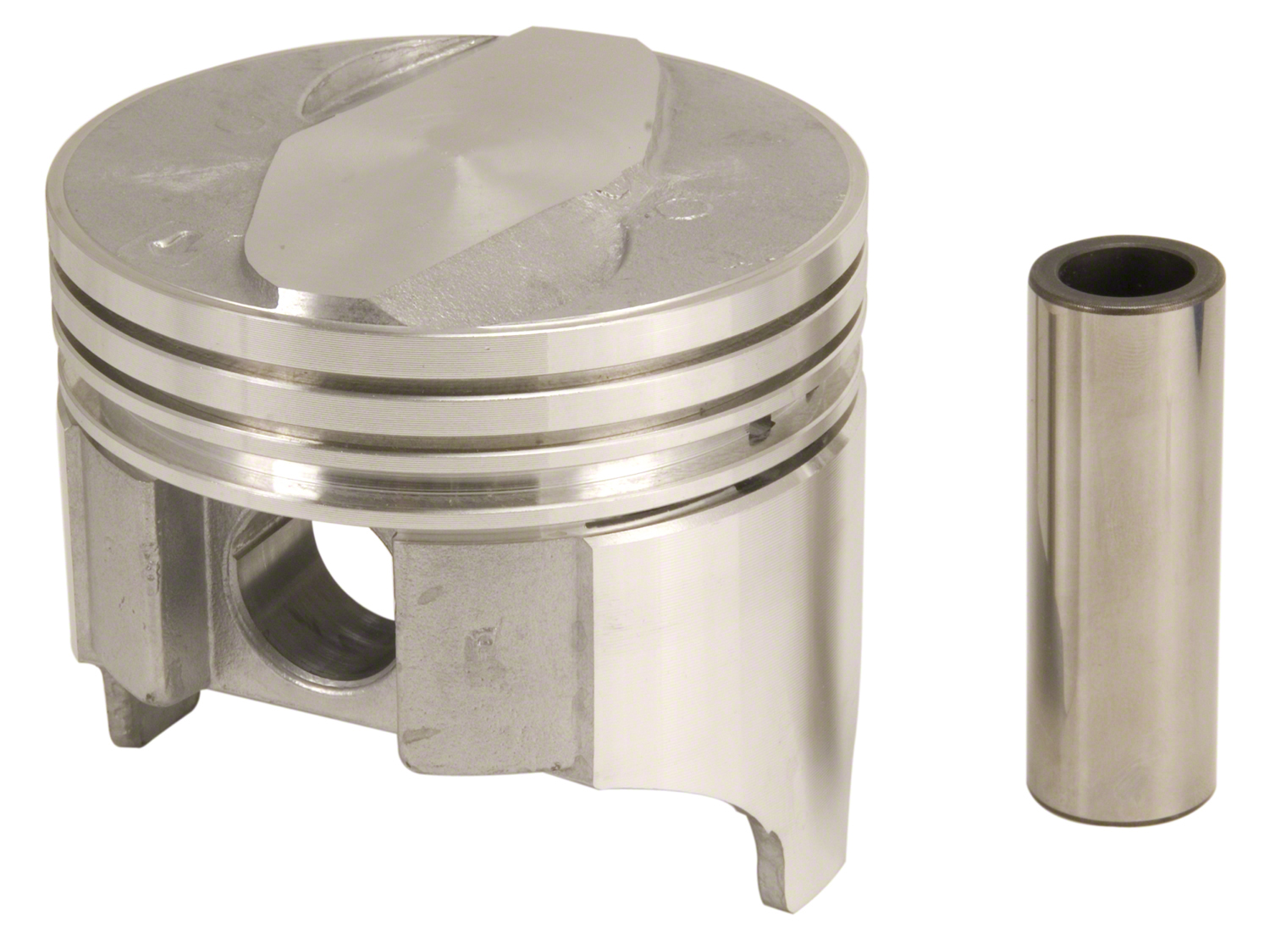

| Part Terminology | Engine Piston |
