| Pin Diameter (Inch) | 0.9275 |
| Minimum Clearance | 0.001 @ 1.830 from top of head |
| Package Alert | Single Piston |
| Oversize Inch | 0.040 |
| Heavy Duty Supplier | Yes |
| Part Material | Cast |
| Bore (Inch) | 4.1250 |
| Weight W Pin Gram | 00785.+/- 00. |
| Note 2 | Single Piston |
| Pin Type | P |
| Pin Offset (MM) | 0.762 |
| Ring 1 Qty | 2 |
| Note 1 | Oversize Inch .040 |
| Dome Volume CC | Negative 025.0 |
| Pin Diameter (MM) | 23.559 |
| Compression Distance | 1.540 |
| Ring 2 Width | 3/16 |

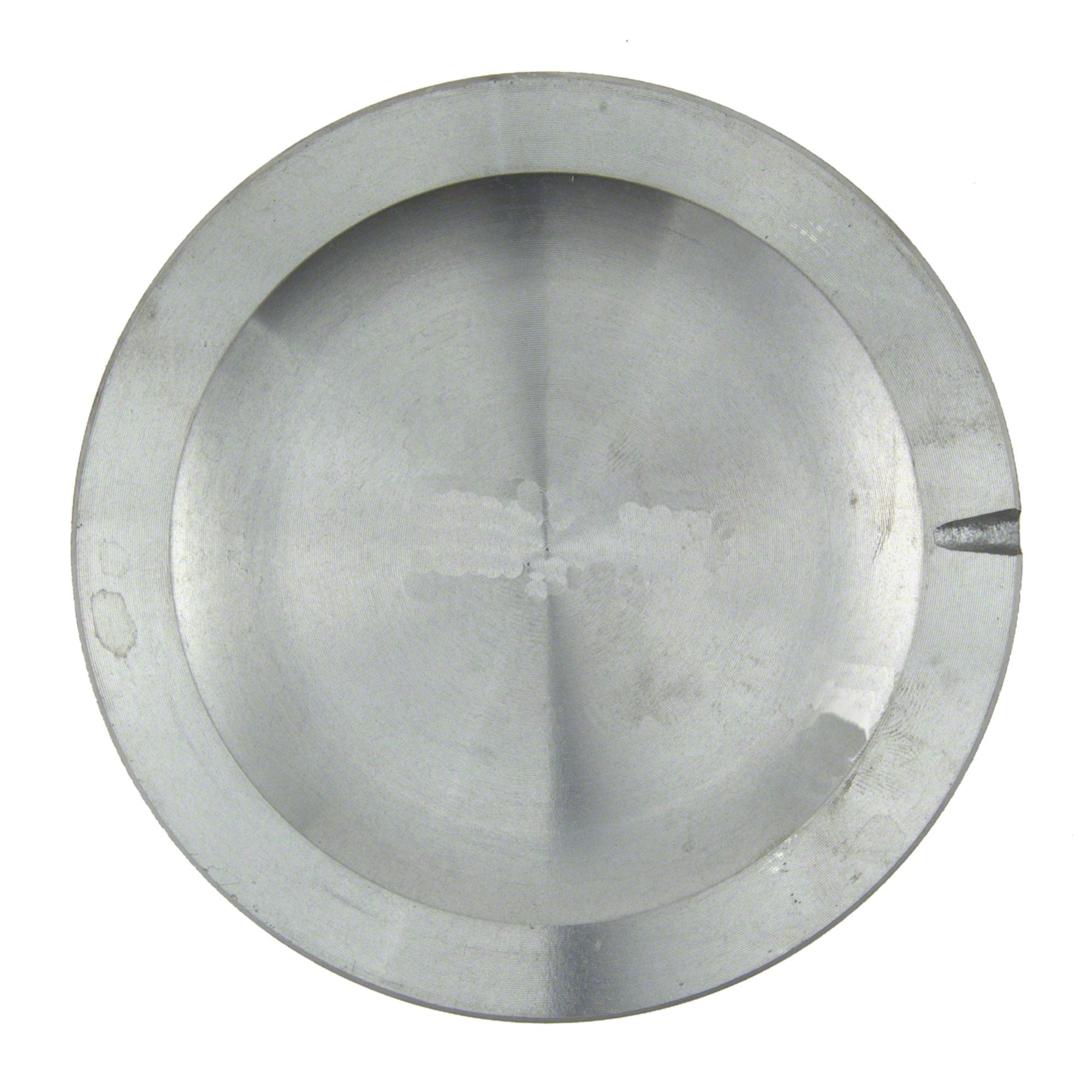

| Head Type | Recessed Head .160 deep x 3.445 dia. - 8.5:1 C.R. |
| Bore (MM) | 104.7800 |
| Ring 2 Qty | 1 |
| Pin Offset (Inch) | 0.03 |
| Ring 1 Width | 5/64 |
| Head Illustration | 28 |

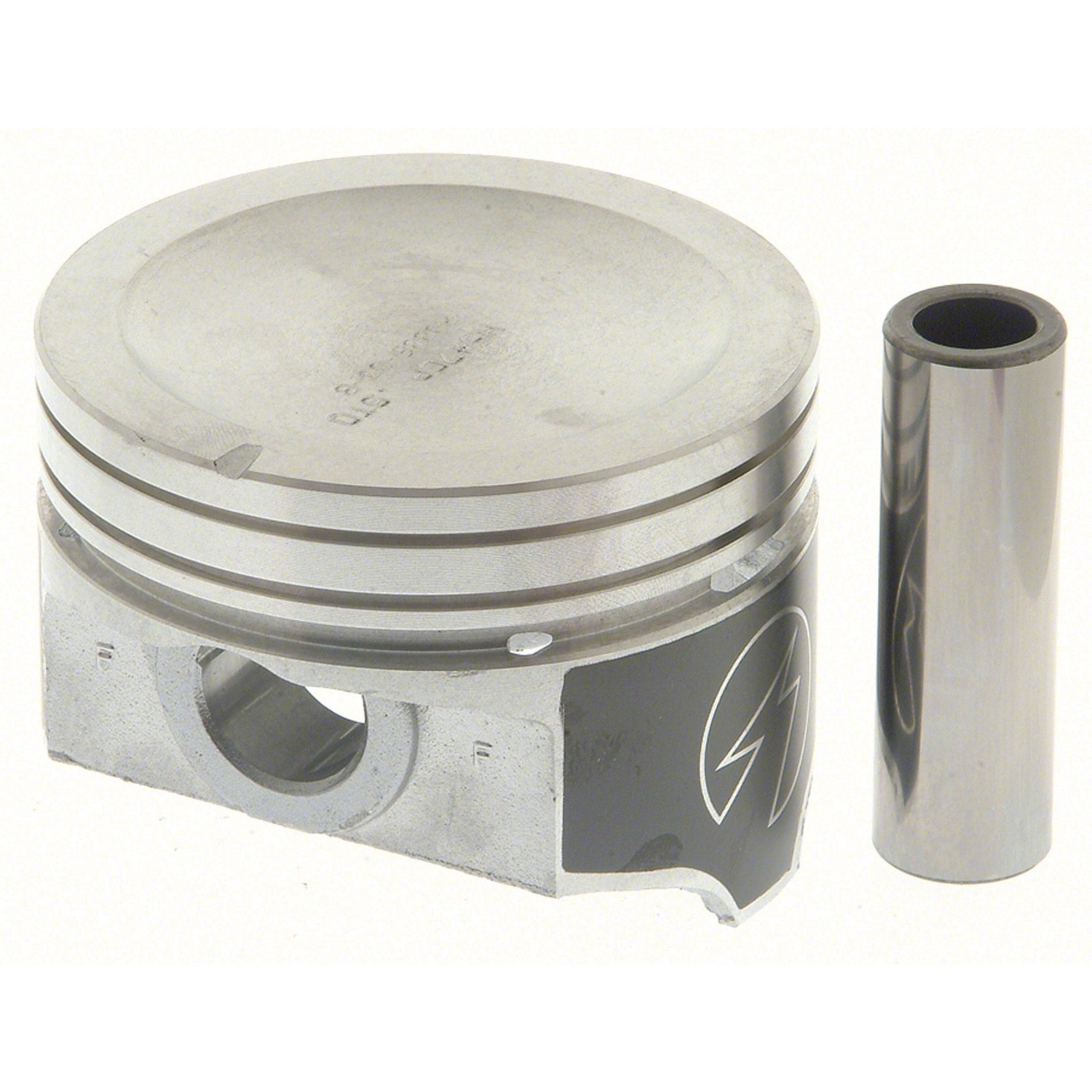

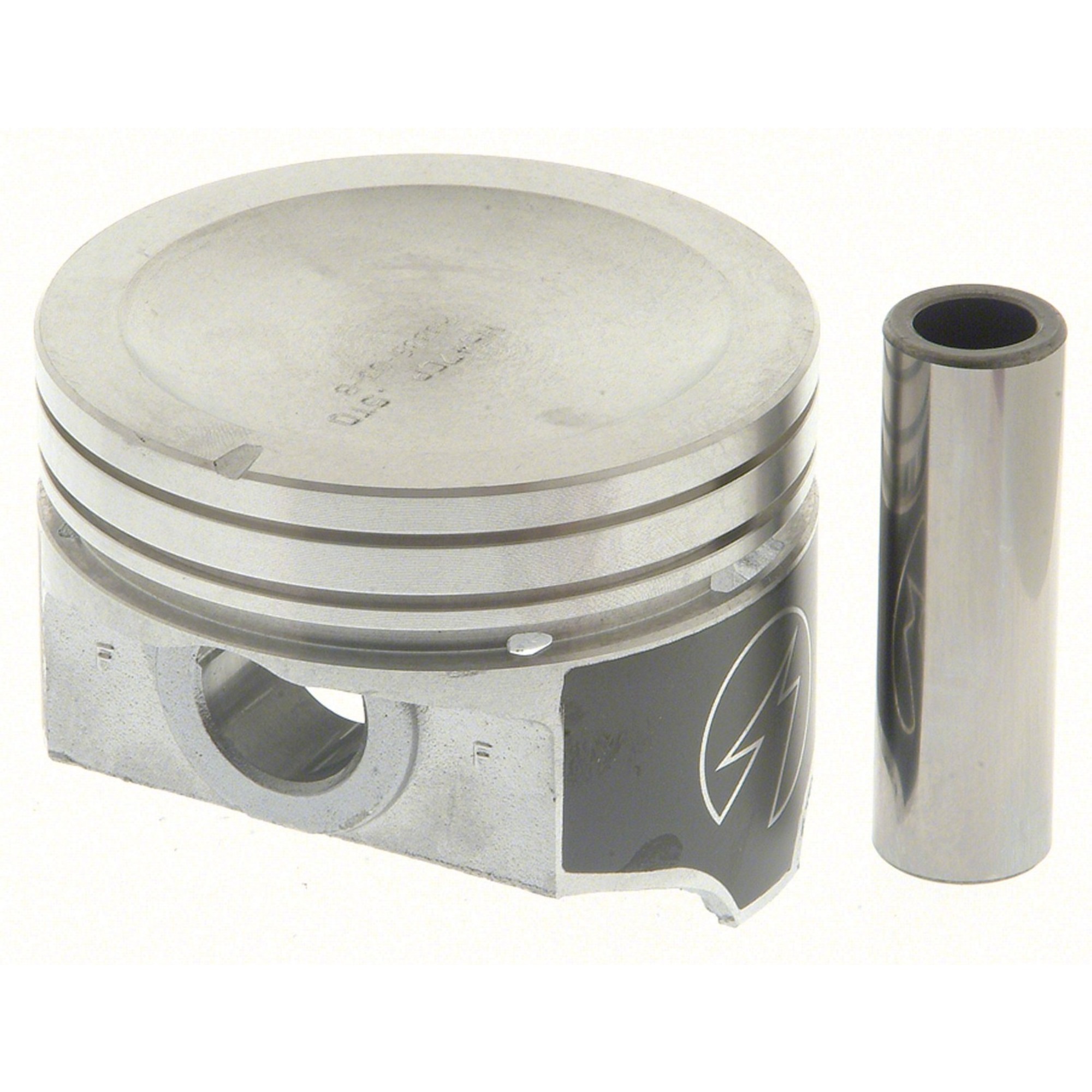

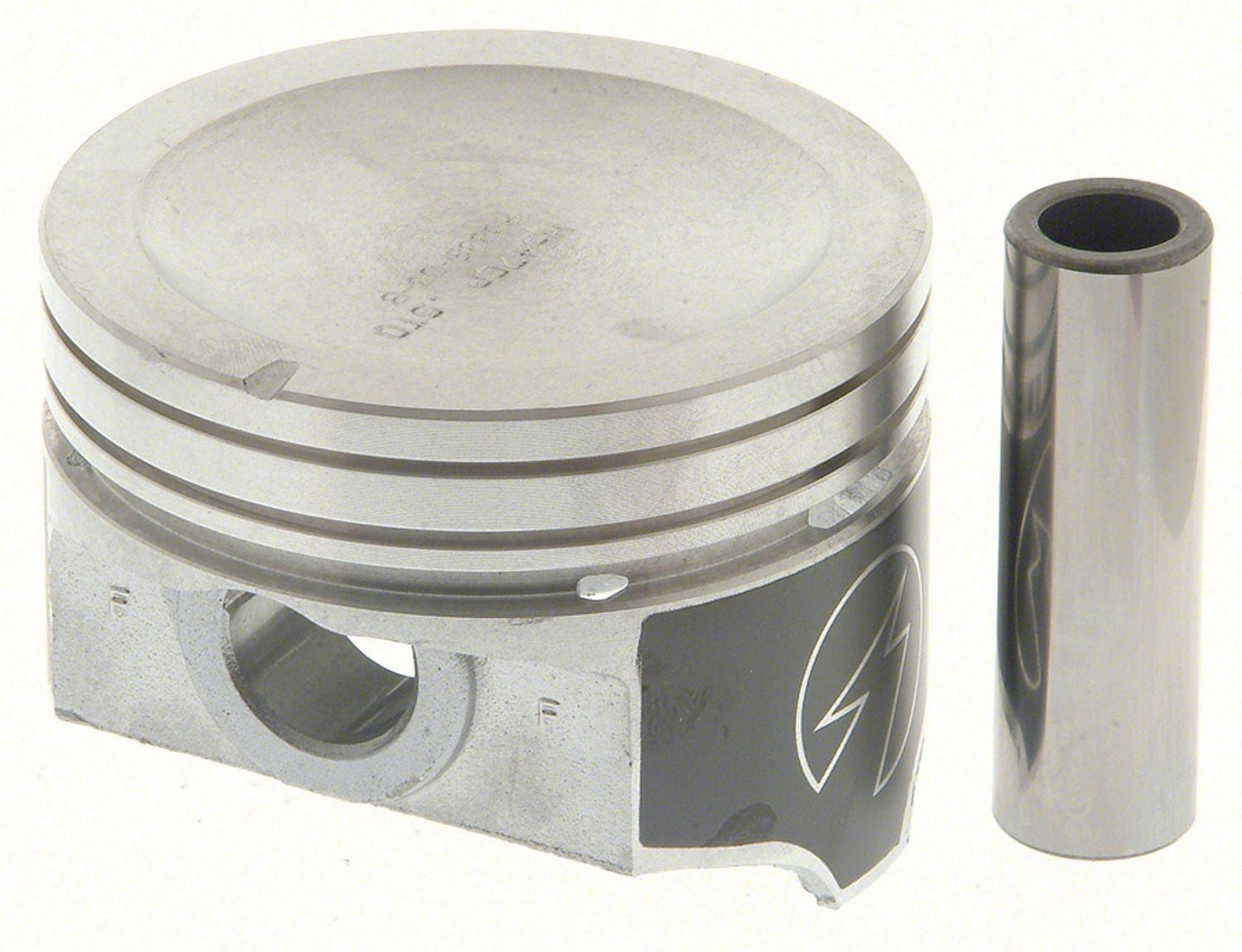

| Part Terminology | Engine Piston |
