| OS Free Height (Inch) | 1.7990 |
| OS Max OD (Inch) | 1.1750 |
| OS Min Open (Inch) | 1.6100 |
| OS Min ID (MM) | 24.3590 |
| OS Free Height (MM) | 45.6950 |
| Spring Configuration | (S) Single |
| OS Min Close (Inch) | 1.9870 |
| Heavy Duty Supplier | Yes |
| OS Min Close (MM) | 50.4700 |
| OS Max OD (MM) | 29.8450 |
| OS Min Open LBS | 128 |
| OS Total Coils | 6.7 |
| OS Min Open (MM) | 40.8940 |
| OS Wire Diameter (Inch) | 0.1580 |
| OS Solid Height (MM) | 27.0760 |
| OS Min Close LBS | 50 |
| OS Solid Height (Inch) | 1.0660 |
| OS Wire Diameter (MM) | 4.0130 |
| OS Min ID (Inch) | 0.9590 |

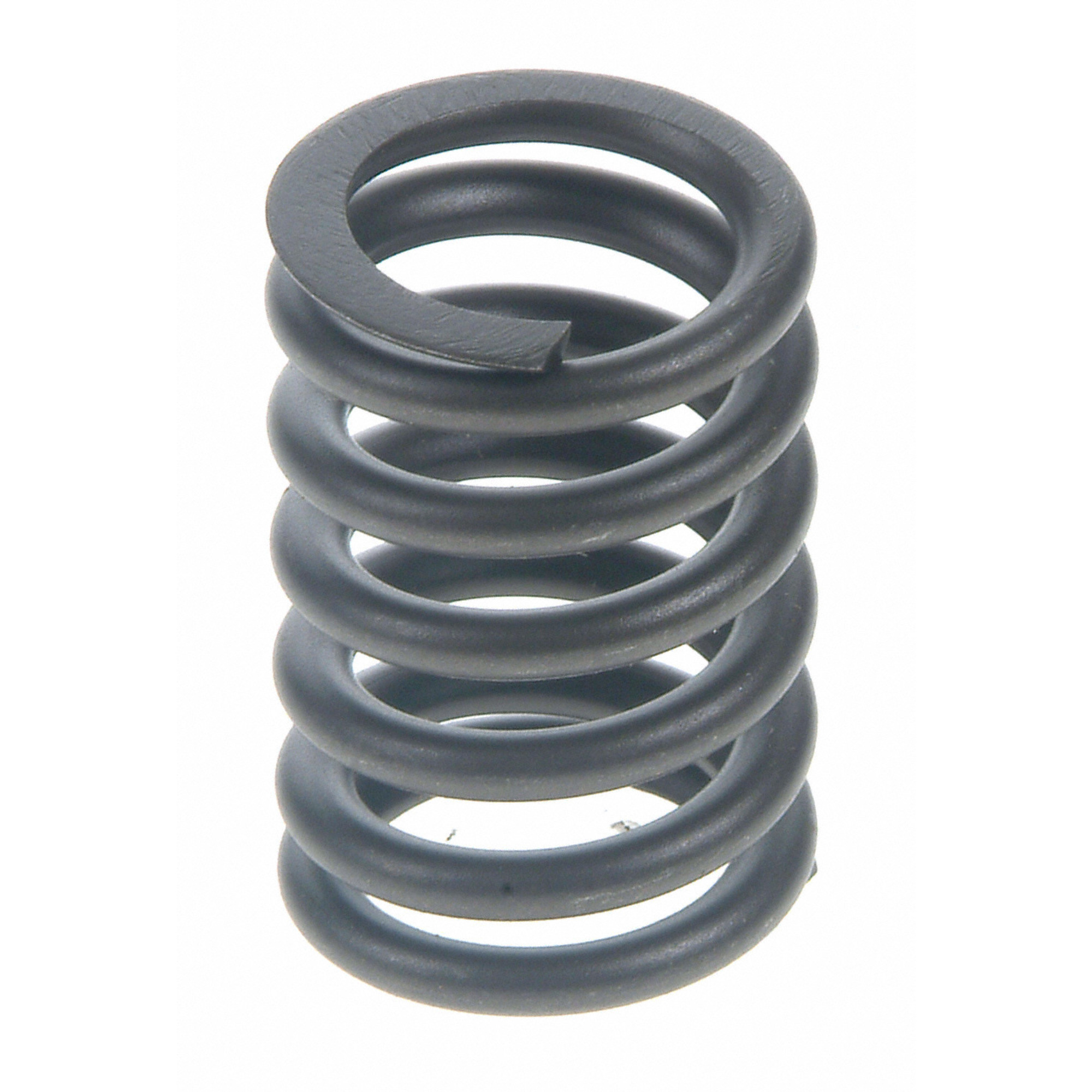

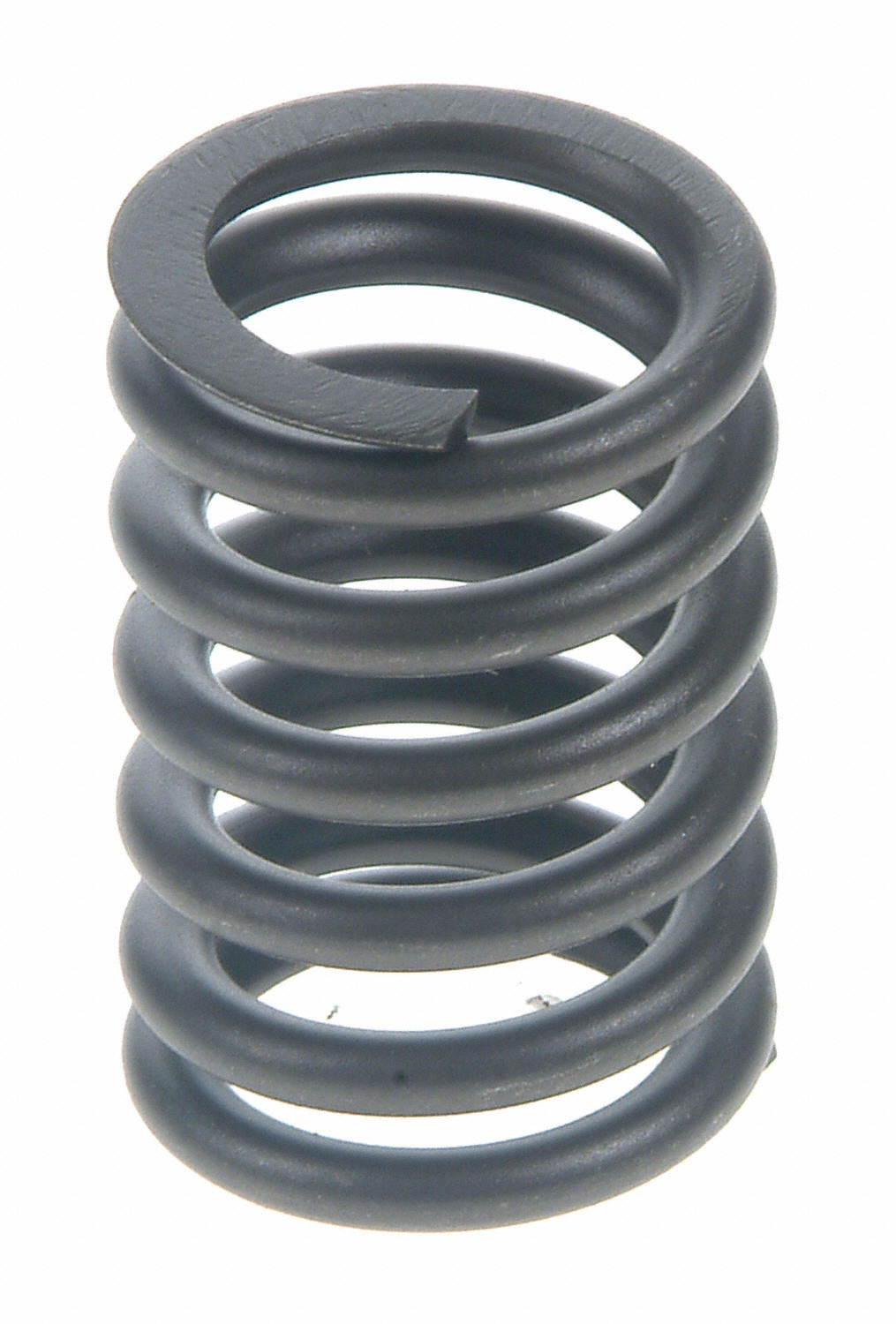

| Part Terminology | Engine Valve Spring |
