| Piston Head Type | Recessed Head .312 deep x 3.210 dia. - 7.6:1 C.R.; DUROSHIELD~ skirt coated piston |
| Oversized | Yes |
| Heavy Duty Supplier | Yes |
| Bore (Inch) | 3.8750 |
| Bore Diameter | 98.4 |
| Assembly Lubricant Included | No |
| Ring 1 Qty | 2 |
| Note 1 | Oversize Inch .030 |
| Top Compression Ring Thickness | 0.0937 |
| Ring 2 Width | 3/16 |
| Head Type | Recessed Head .312 deep x 3.210 dia. - 7.6:1 C.R.; DUROSHIELD~ skirt coated piston |
| Bore (MM) | 98.4000 |
| Oversized Amount | 0.030 |
| Pin Diameter (Inch) | 0.9275 |

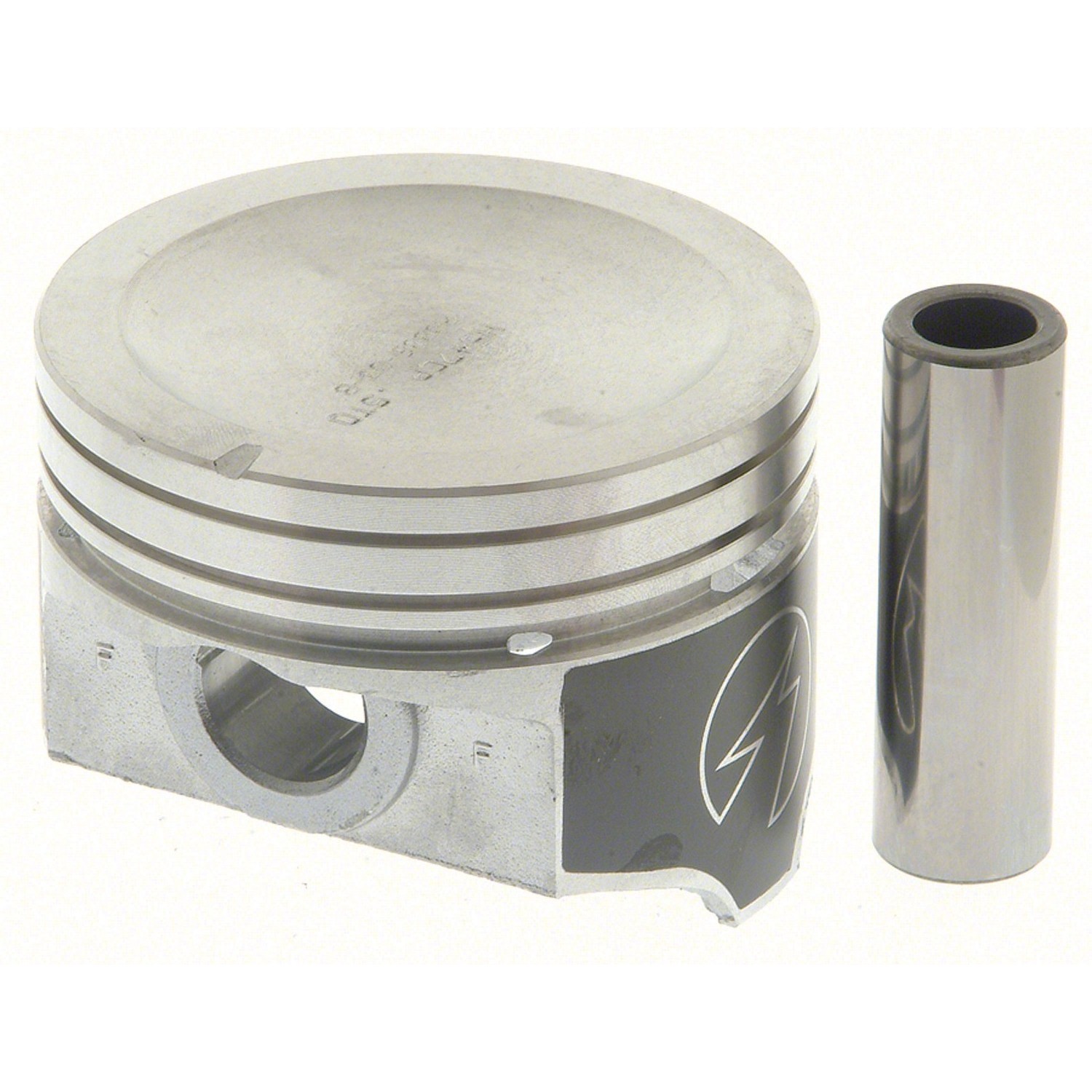

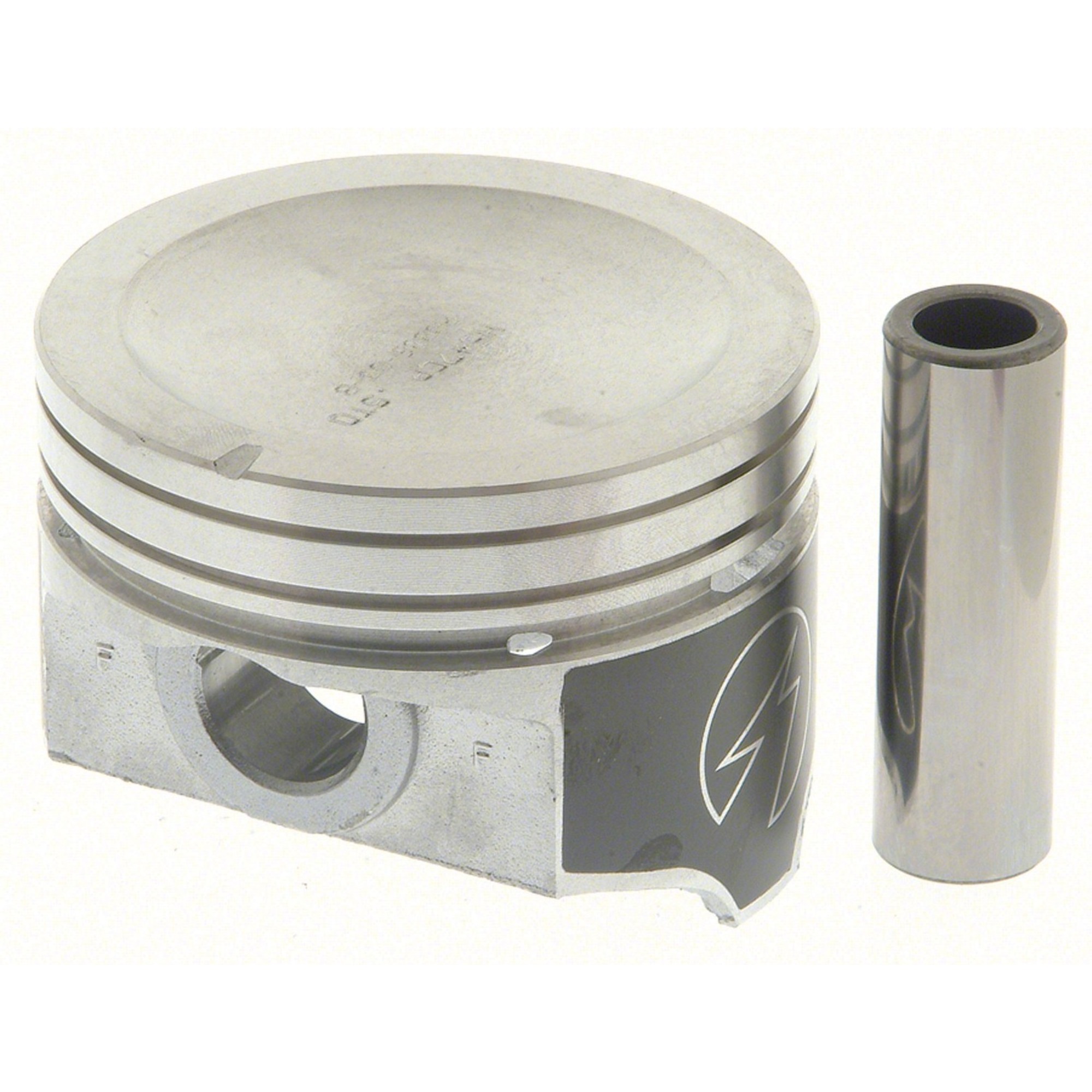

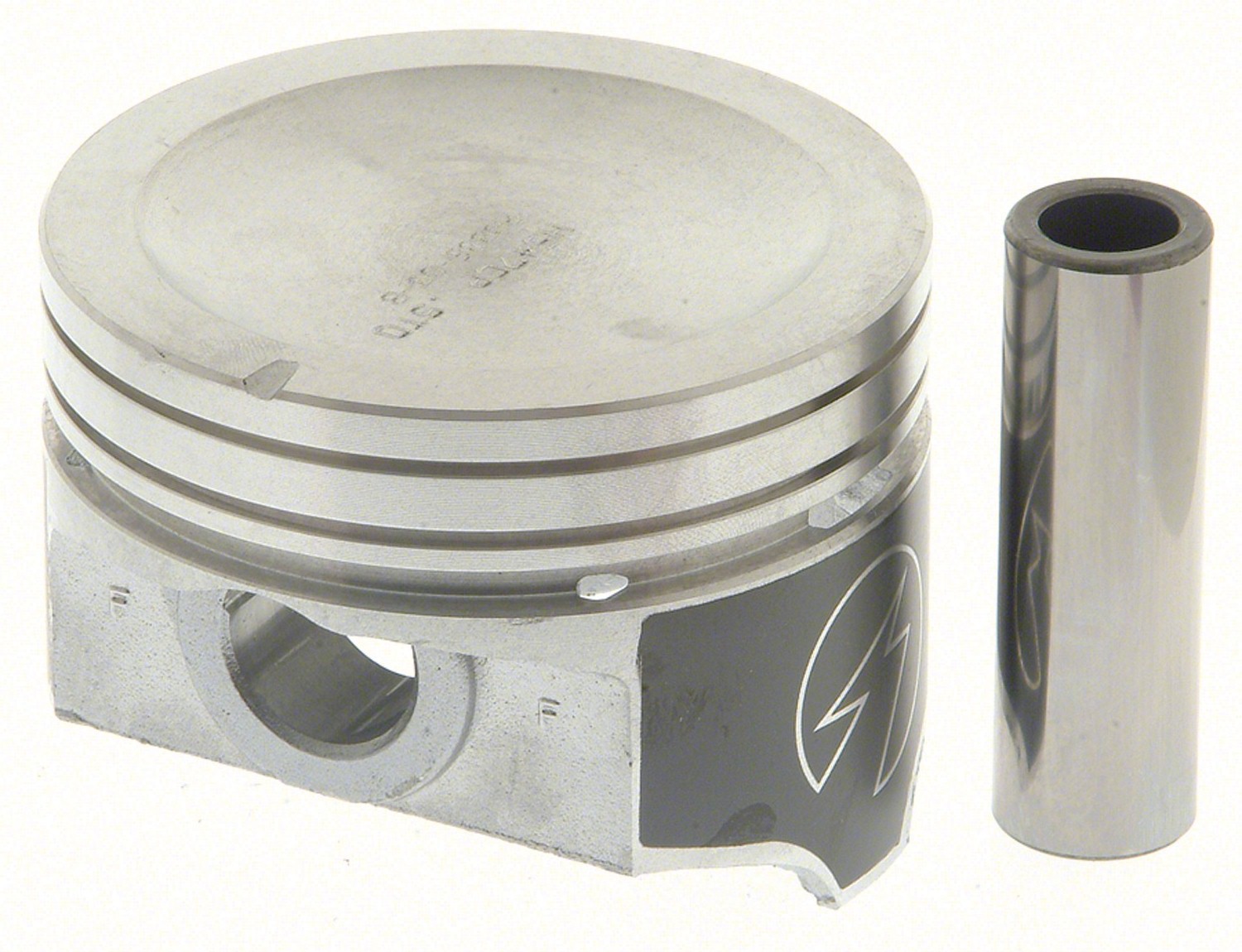

| Part Description | Engine Piston |
| Minimum Clearance | See Piston Fitting Information on carton label |
| Oversize Inch | 0.030 |
| Part Material | Hypereutectic |
| Oil Ring Thickness | 0.1875 |
| Pin Offset (MM) | 1.524 |
| Piston Pin Outside Diameter | 23.559 |
| Second Compression Ring Thickness | 0.0937 |
| Piston Pin Inside Diameter | 23.559 |
| Pin Diameter (MM) | 23.559 |
| Compression Distance | 2.010 |
| Ring Material | Hypereutectic |
| Prop 65 Label (Yes/No) | No |
| Piston Material | Hypereutectic |
| Pin Offset (Inch) | 0.06 |
| Ring 2 Qty | 1 |
| Grade Type | Premium |
| Ring 1 Width | 3/32 |
| Head Illustration | 28 |
| Part Terminology | Engine Piston Set |
