| Pin Diameter (Inch) | 0.9455 |
| Minimum Clearance | See Piston Fitting Information on carton label |
| Oversized | 0.25 |

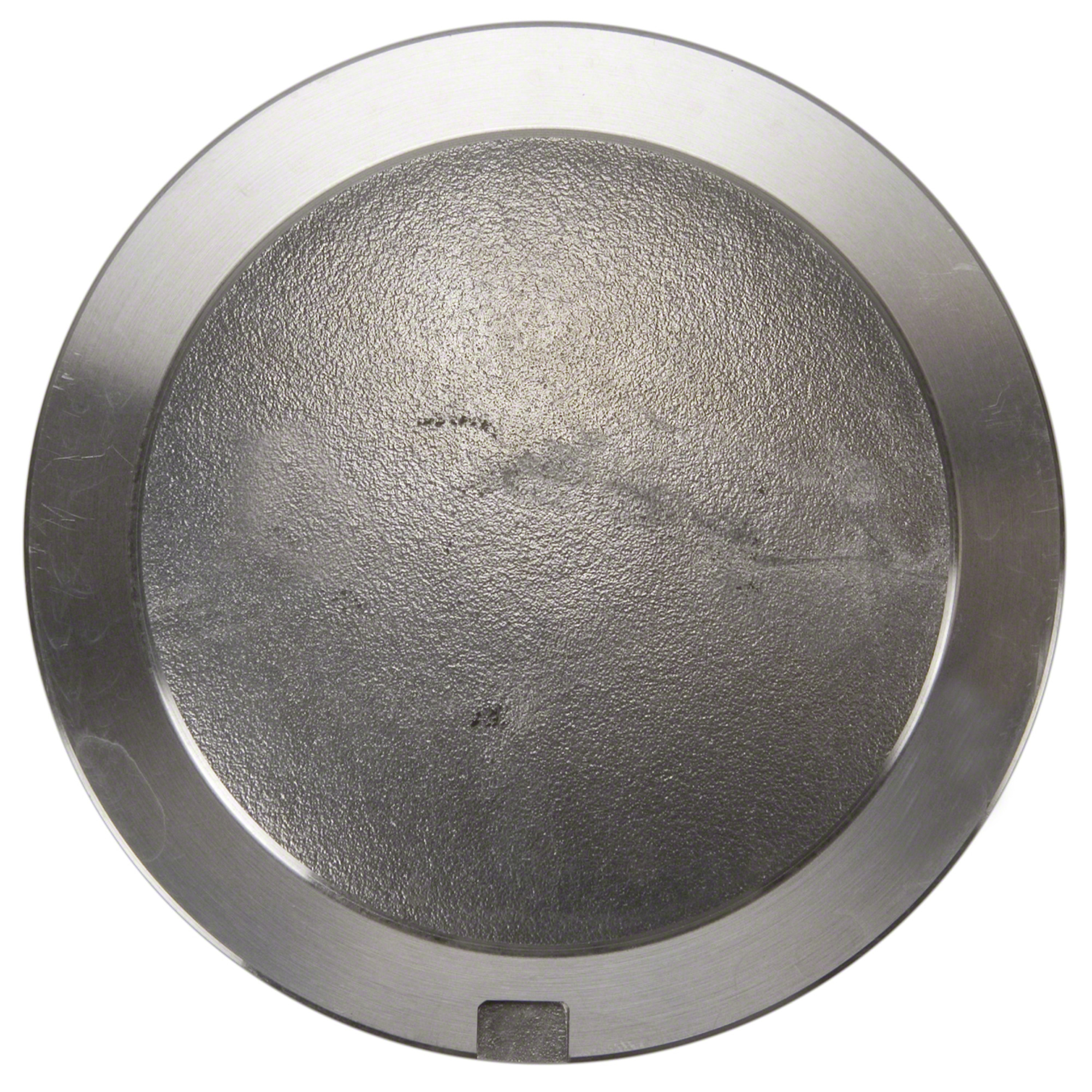

| Piston Head Type | Domed Head .093 high x 2.630 dia.; DUROSHIELD~ skirt coated piston; Thermoshield coating on the head and in the top compression groove |
| Heavy Duty Supplier | Yes |
| Part Material | Hypereutectic |
| Pin Offset (MM) | 0.762 |
| Ring 3 Width | 3.00 |
| Ring 3 Qty | 1 |
| Ring 1 Qty | 1 |
| Note 1 | Oversize MM .25 |
| Piston Pin Inside Diameter | 24.016 |
| Pin Diameter (MM) | 24.016 |
| Compression Distance | 1.205 |
| Ring Material | Hypereutectic |
| Ring 2 Width | 1.50 |
| Oversize MM | 0.25 |
| Head Type | Domed Head .093 high x 2.630 dia.; DUROSHIELD~ skirt coated piston; Thermoshield coating on the head and in the top compression groove |
| Ring 2 Qty | 1 |
| Pin Offset (Inch) | 0.03 |
| Ring 1 Width | 1.50 |

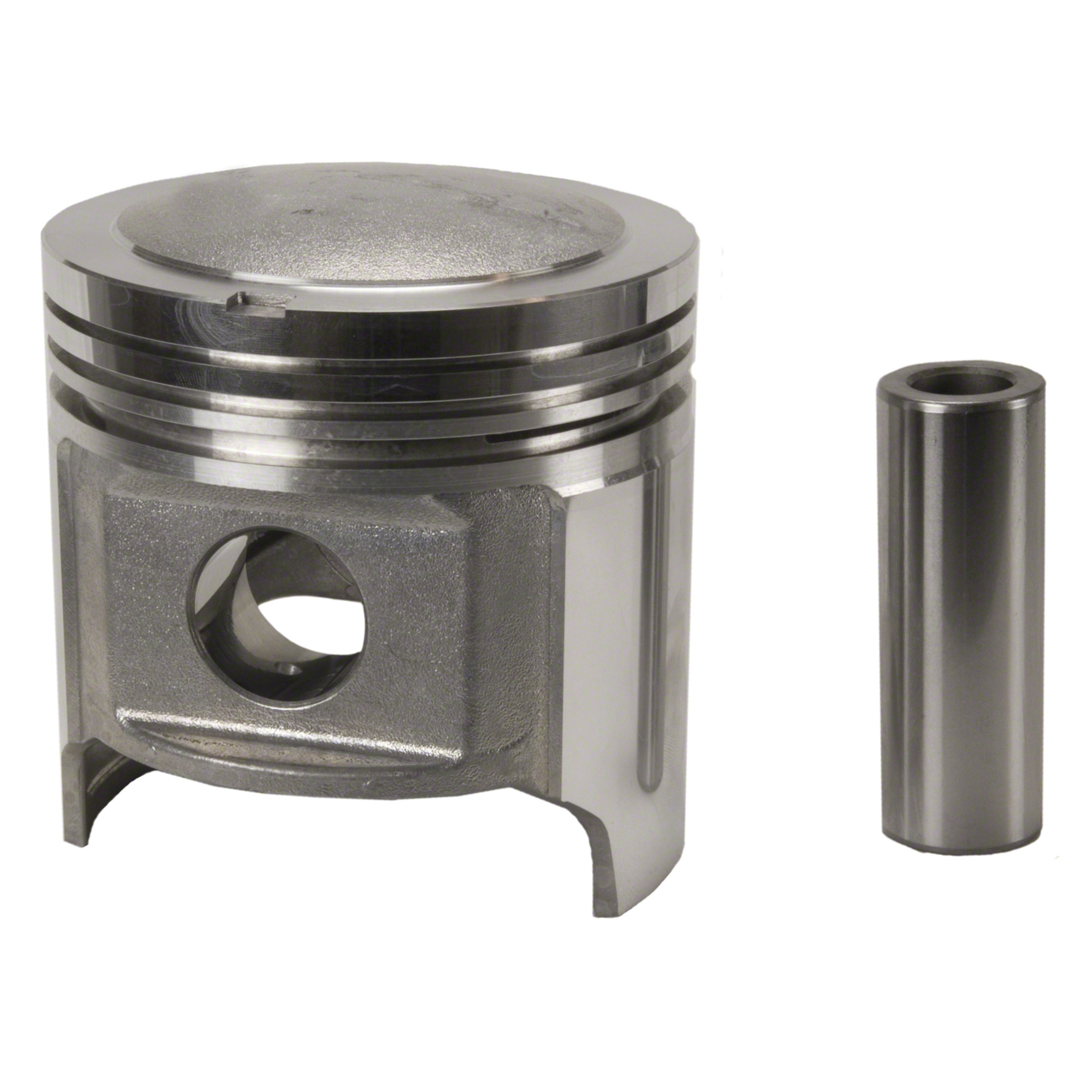

| Part Terminology | Engine Piston Set |
