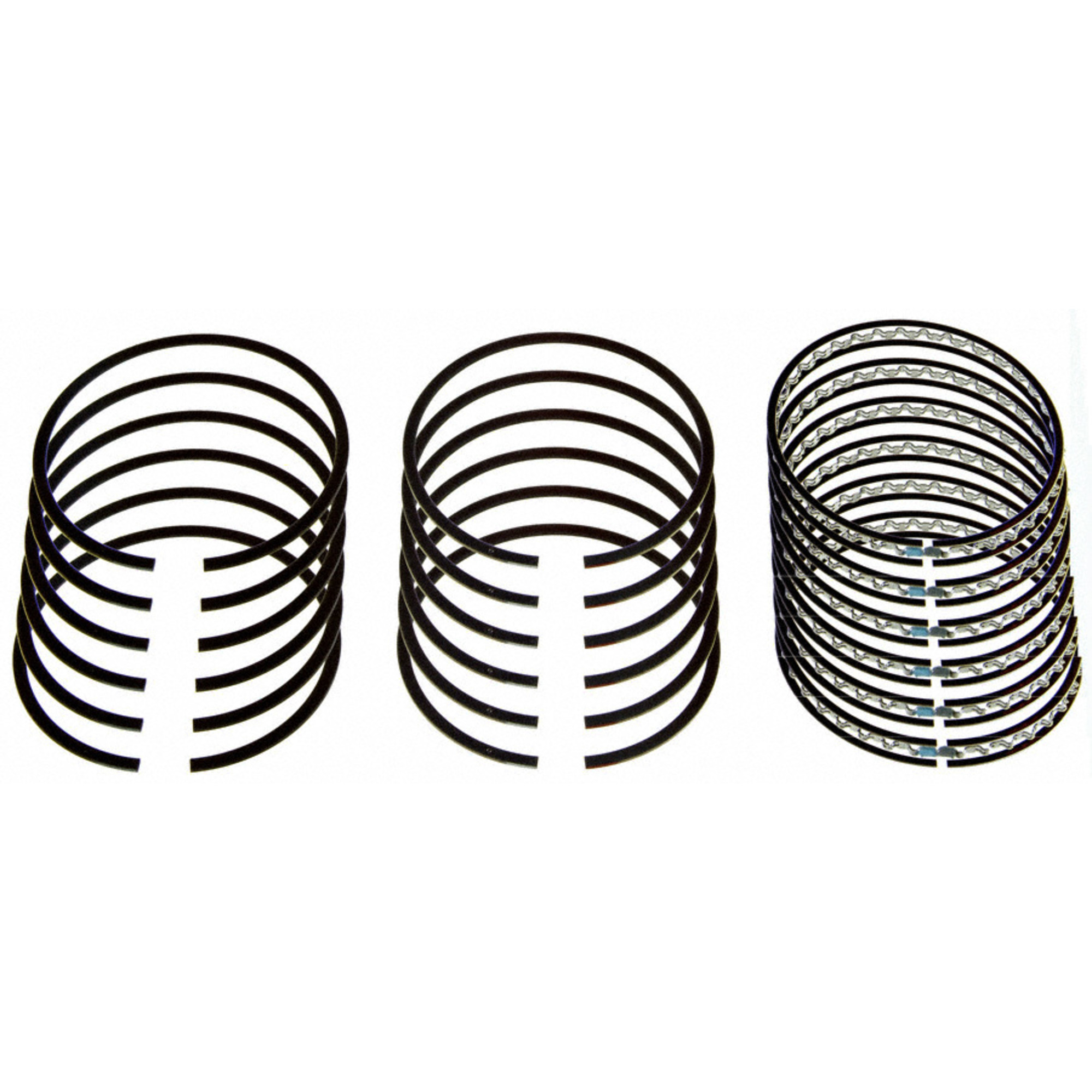

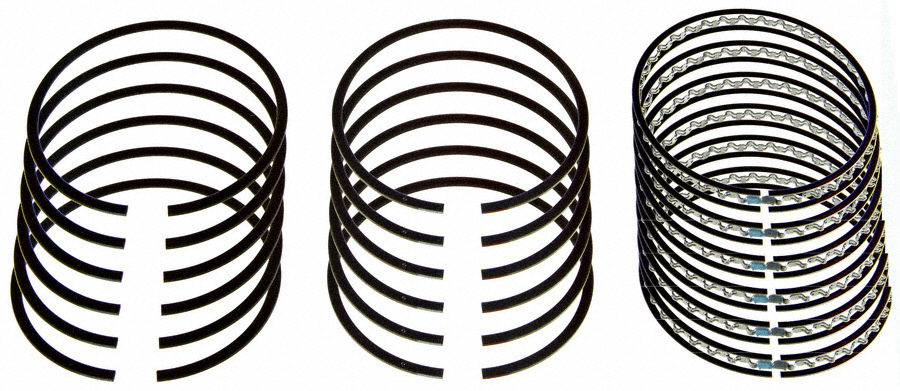

Engine piston ring set
Part # E196K60 | Line Code: 376
brandNameImage
brandNameImage

$125.89
$125.89
error
Not Fitted

Product Details
expand_less
Oil Ring Design 3 Piece Flex Vent
Package Alert Full set
Oversize Inch 0.060
Heavy Duty Supplier Yes
Oversize (in) 0.060
Top Ring Face Design Barrel Face
2nd Ring Width (in) 5/64
Top Ring Width (in) 5/64
Bore Diameter 3.4000
Ring Set Groove Widths (in) 5/64 x 5/64 x 3/16
Bore Size (IN) 3.4000
Oil Ring Width (in) 3/16
2nd Ring Face Design Reverse Torsional
2nd Ring Material Grey Iron
Cylinder Quantity 6
Ring Material Premium Moly
Outside Diameter (In) 3.4600
Top Ring Material Steel w/Moly
Outside Diameter 3.4600
Oversized Amount 0.060
File Fit (Y/N) N
Part Terminology Engine Piston Ring Set

Features & Benefits
expand_more
Sealed Power® parts provide innovative designs, use leading edge materials and utilize ISO & QS certified manufacturing in order to deliver top quality products that meet the rigorous demands of today's modern engines.

Application Summary
expand_more

CHI L6 170CI 2.8L; 1971-1960 CHR L6 170CI 2.8L; 1969-1961 DT L/D L6 170CI 2.8L; 1961 DT M/D L6 170CI 2.8L; 1974-1970 CHR L6 198CI 3.2L; 1973-1970 DT L/D L6 198CI 3.2L; CAS L6 225CI 3.7L; CHI L6 225CI 3.7L;+(MORE)
