| Pin Diameter (Inch) | 0.9272 |
| Minimum Clearance | 0.0015 @ 2.240 from top of head |
| Oversized | 0.040 |

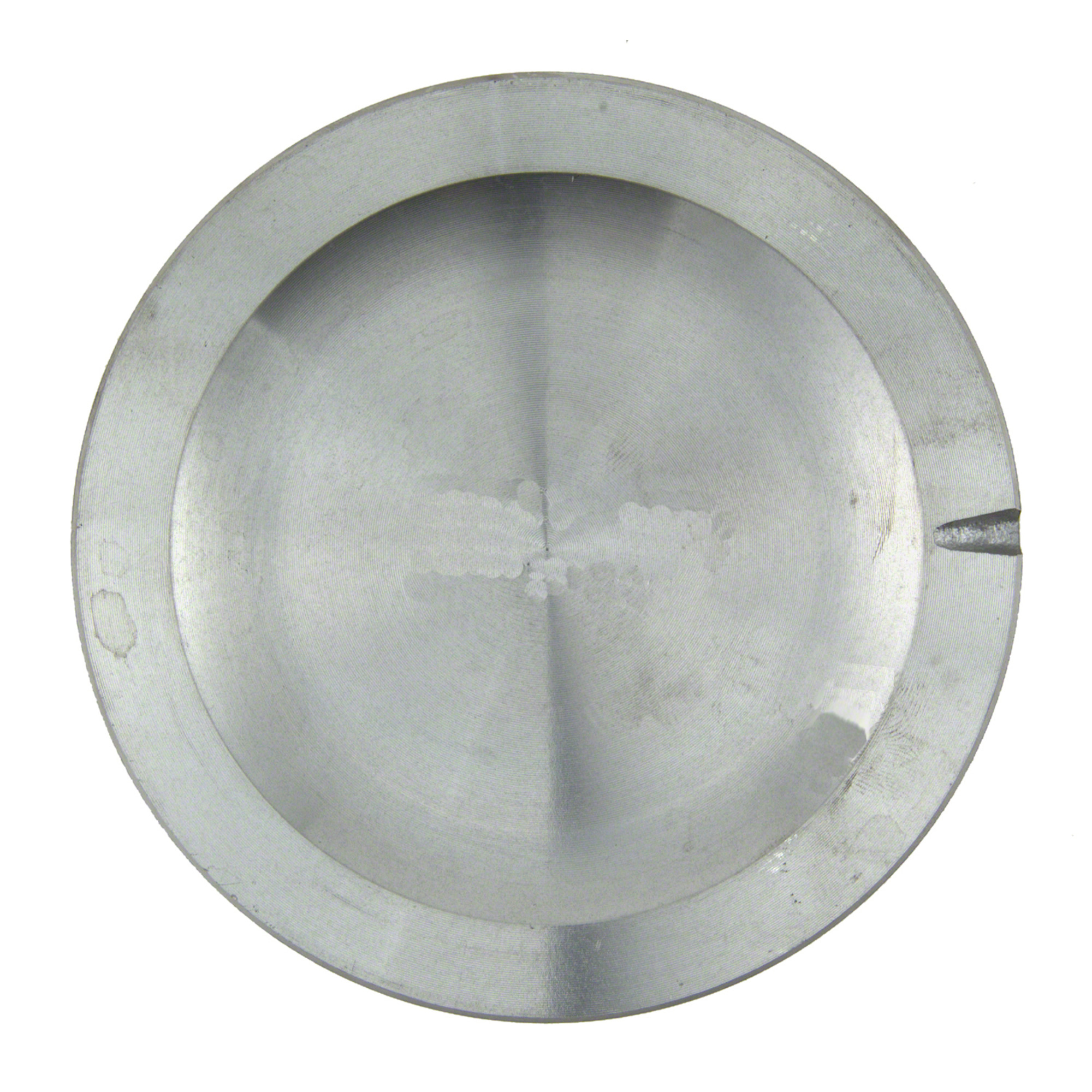

| Piston Head Type | Recessed Head .142 deep x 2.880 dia. - 8.2:1 C.R. |
| Oversize Inch | 0.040 |
| Heavy Duty Supplier | Yes |
| Part Material | Cast |
| Bore (Inch) | 3.5000 |
| Pin Offset (MM) | 1.524 |
| Bore Diameter | 3.5000 |
| Ring 1 Qty | 2 |
| Note 1 | Oversize Inch .040 |
| Piston Pin Inside Diameter | 23.551 |
| Compression Distance | 1.540 |
| Pin Diameter (MM) | 23.551 |
| Ring Material | Cast |
| Ring 2 Width | 3/16 |
| Head Type | Recessed Head .142 deep x 2.880 dia. - 8.2:1 C.R. |
| Bore (MM) | 88.9000 |
| Pin Offset (Inch) | 0.06 |
| Ring 2 Qty | 1 |
| Ring 1 Width | 5/64 |
| Head Illustration | 28 |

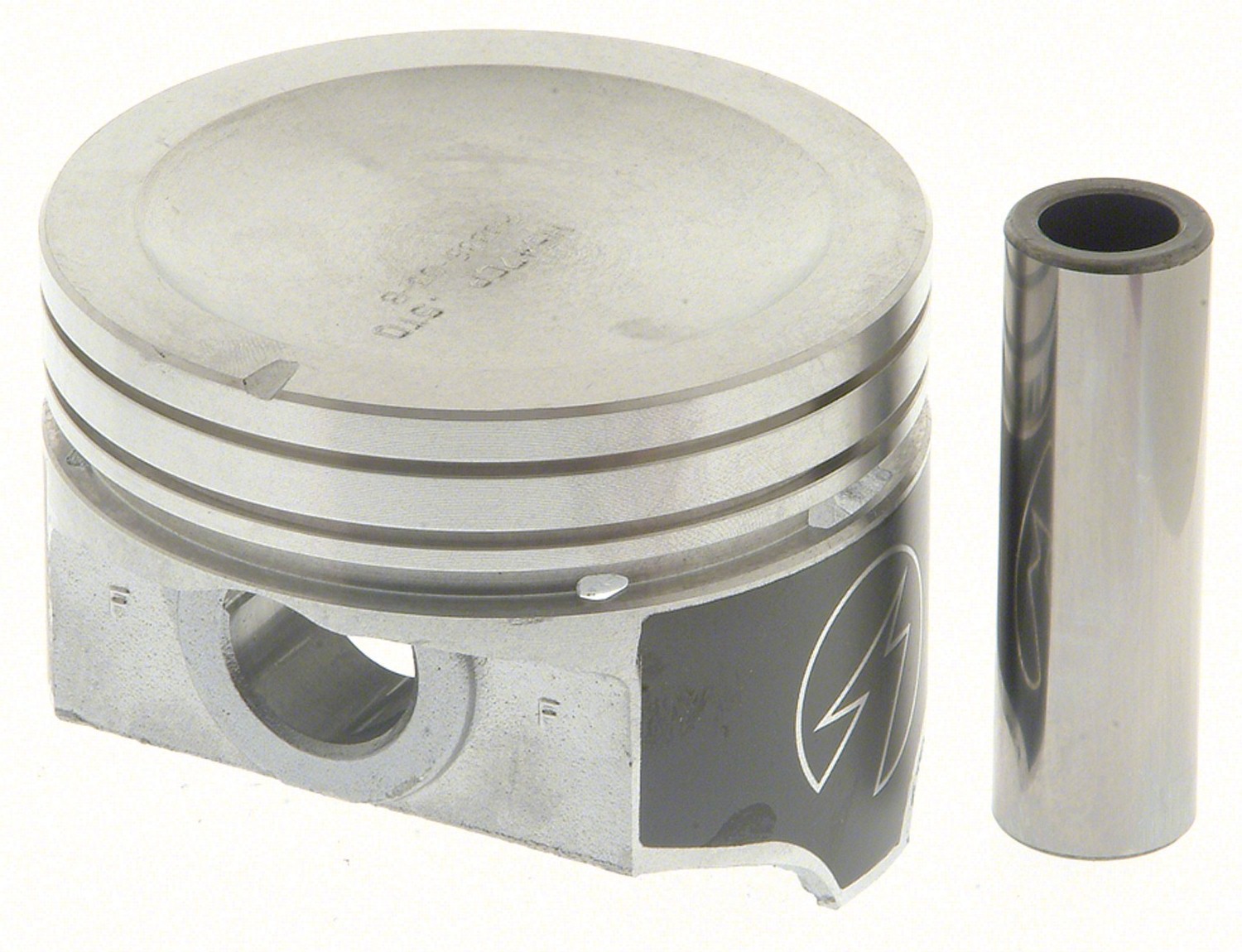

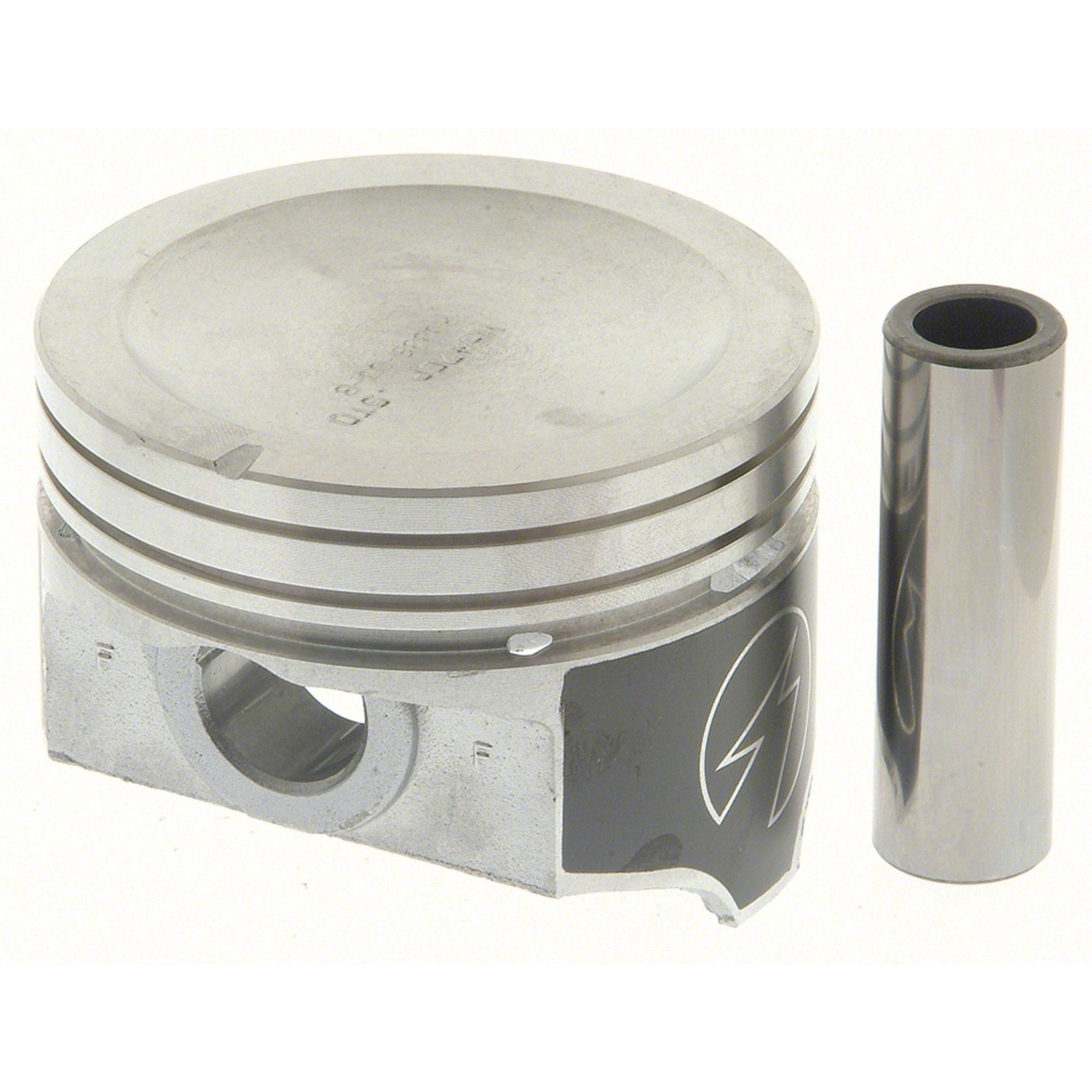

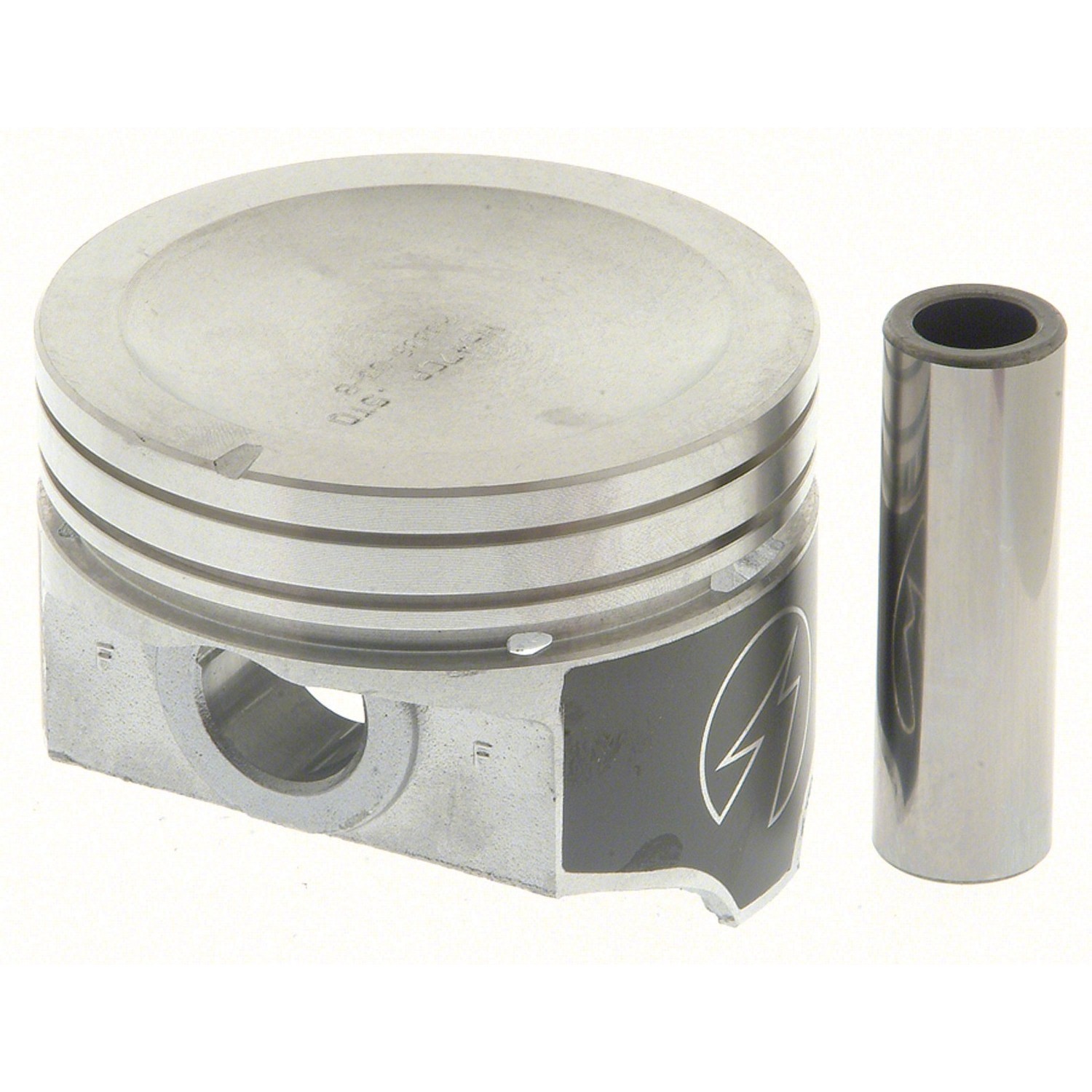

| Part Terminology | Engine Piston Set |
