| Pin Diameter (Inch) | 0.9804 |
| Minimum Clearance | 0.001 @ 2.600 from top of head |

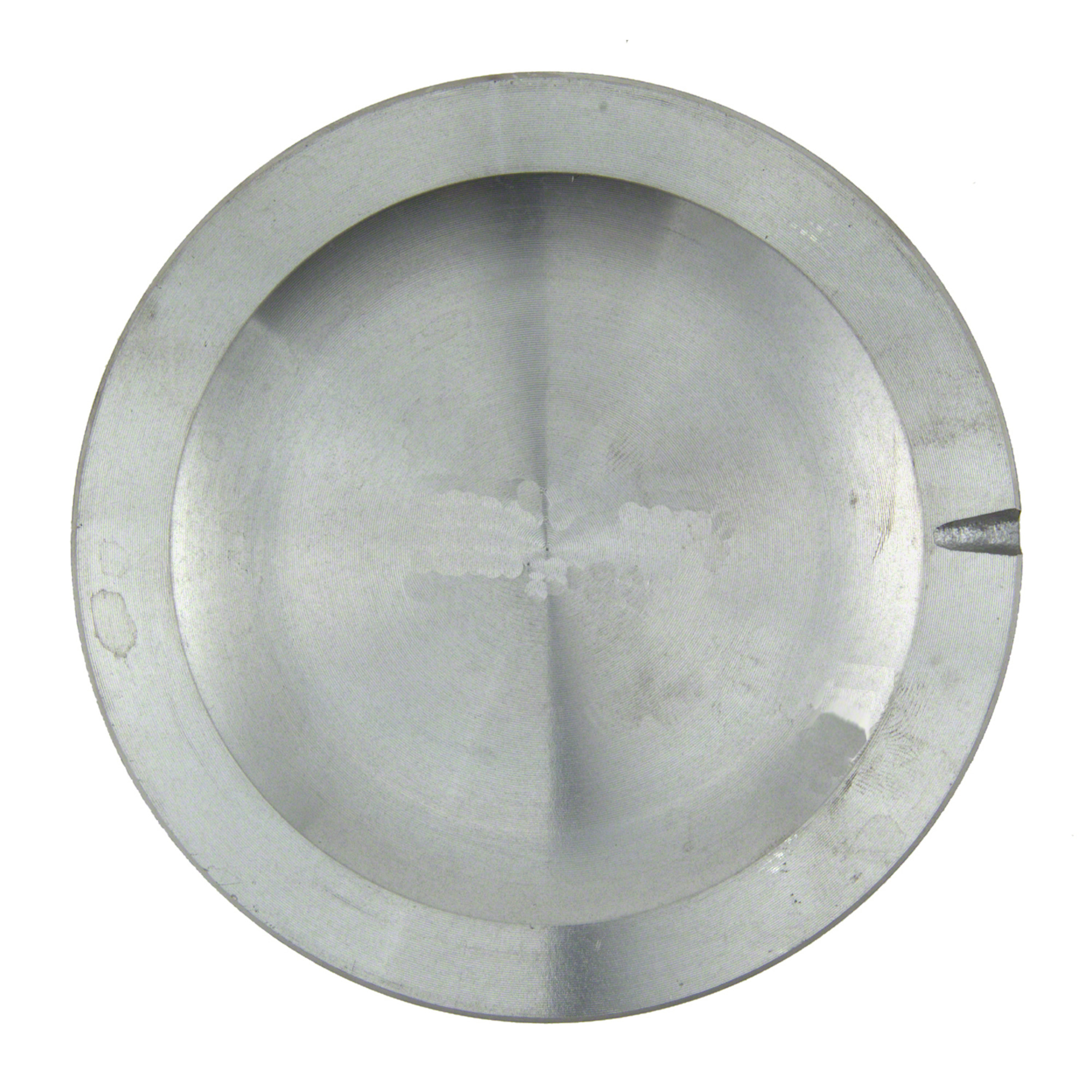

| Piston Head Type | Recessed Head .127 deep x 2.660 dia. - 7.9:1 C.R. |
| Heavy Duty Supplier | Yes |
| Part Material | Cast |
| Bore (Inch) | 3.8000 |
| Pin Offset (MM) | 1.524 |
| Bore Diameter | 3.8000 |
| Note 1 | Standard Size |
| Ring 1 Qty | 2 |
| Piston Pin Inside Diameter | 24.902 |
| Pin Diameter (MM) | 24.902 |
| Compression Distance | 1.596 |
| Ring Material | Cast |
| Standard Size | Standard |
| Ring 2 Width | 3/16 |
| Head Type | Recessed Head .127 deep x 2.660 dia. - 7.9:1 C.R. |
| Bore (MM) | 93.1000 |
| Pin Offset (Inch) | 0.06 |
| Ring 2 Qty | 1 |
| Ring 1 Width | 5/64 |
| Head Illustration | 28 |

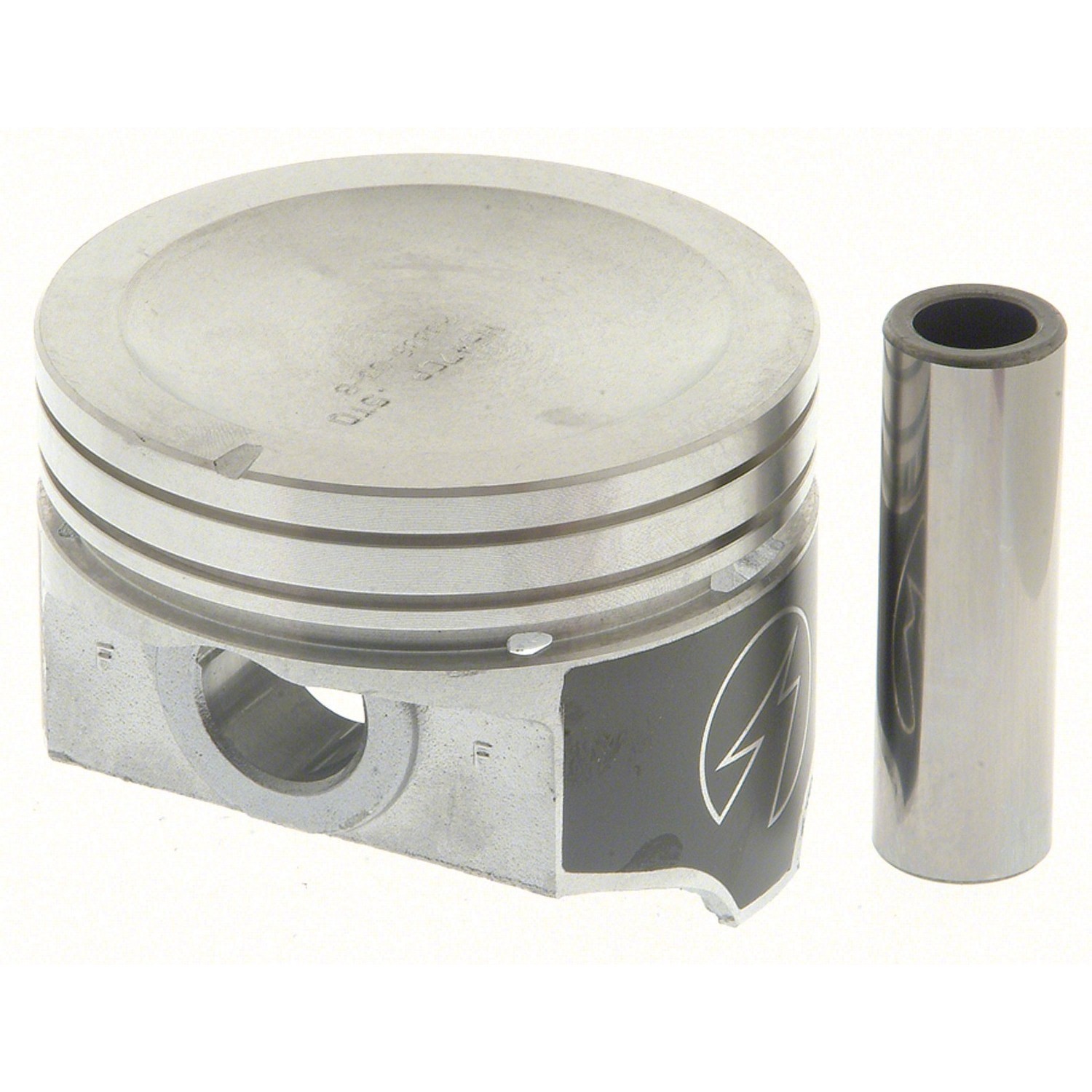

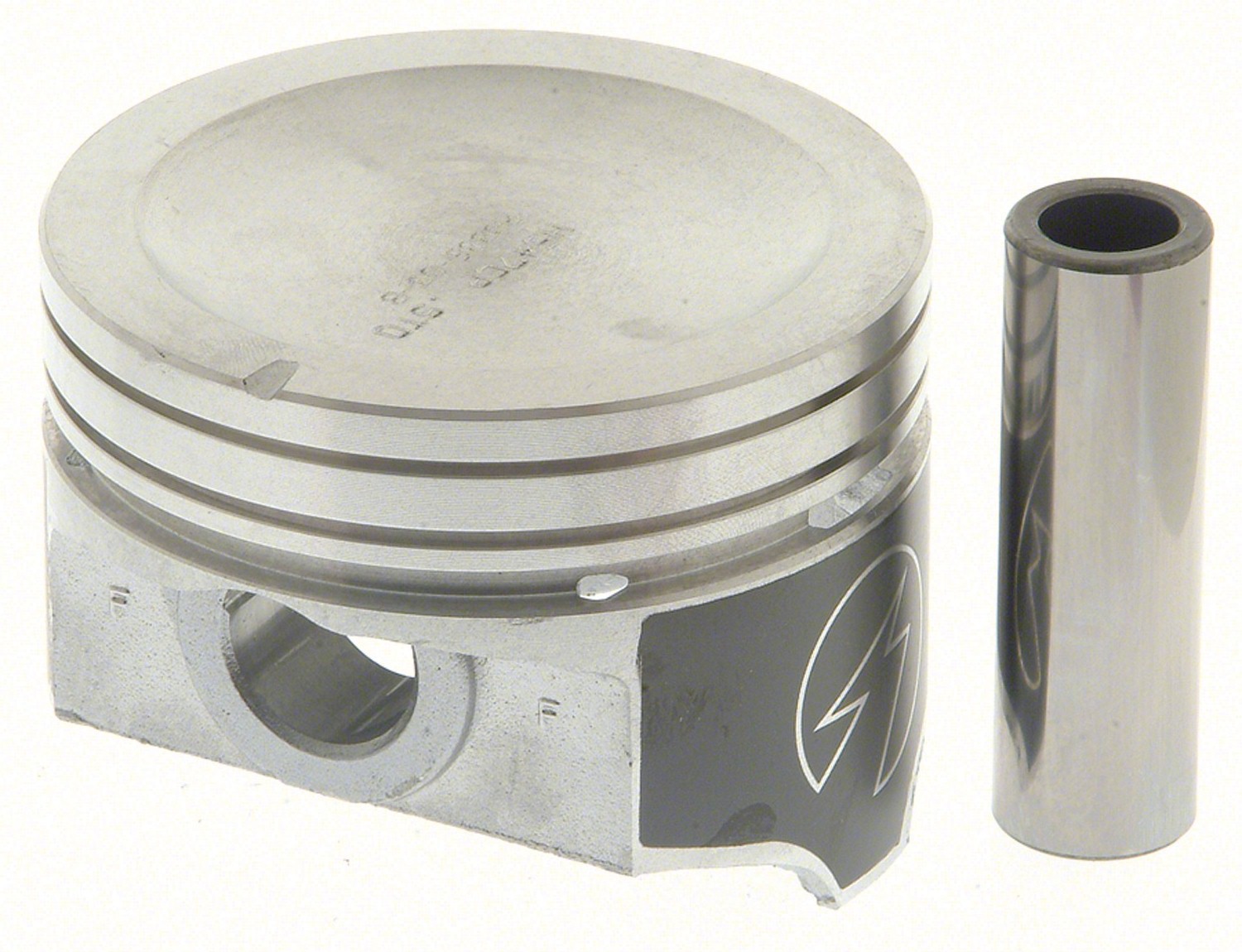

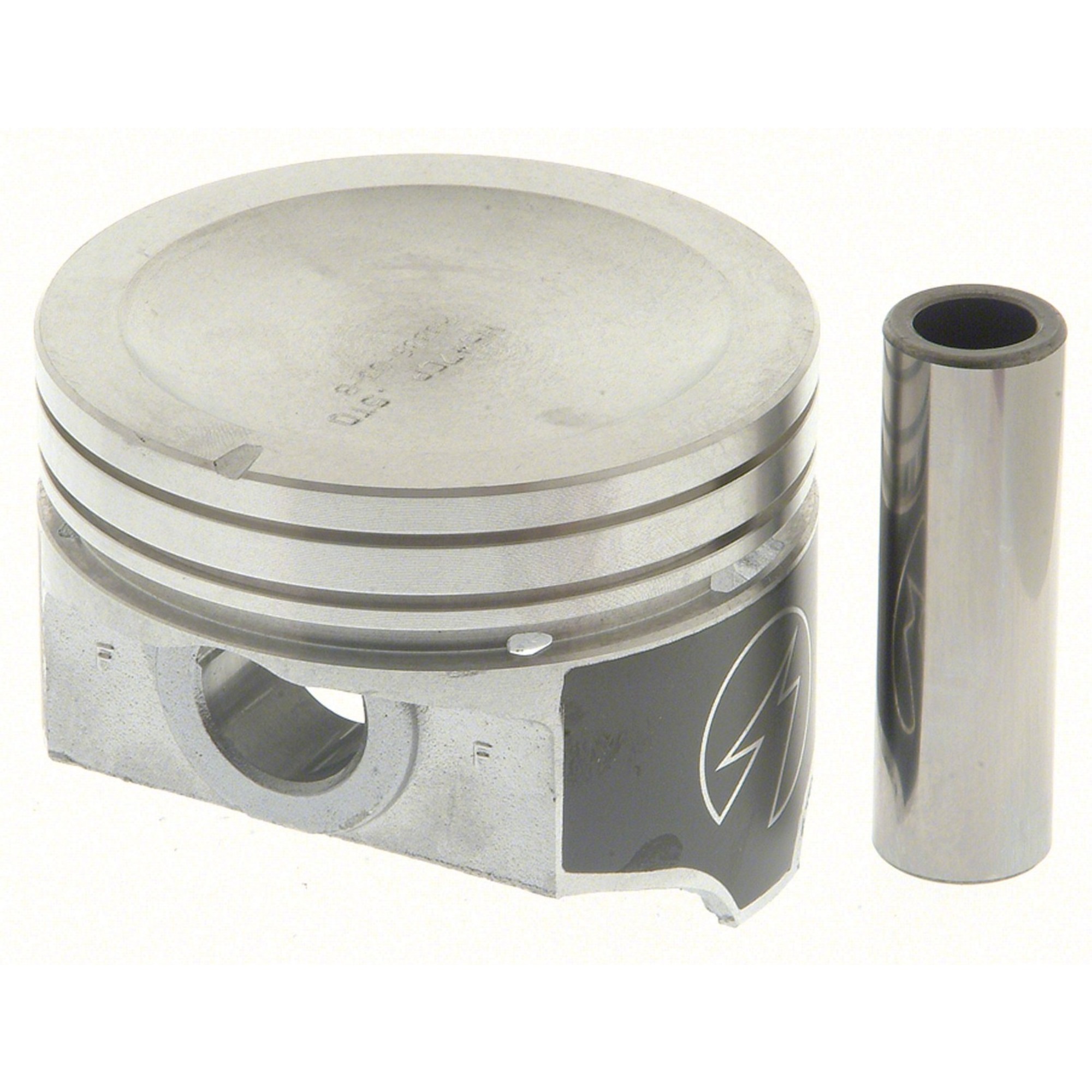

| Part Terminology | Engine Piston Set |
