| Pin Diameter (Inch) | 0.9122 |
| Minimum Clearance | 0.0015 @ 2.460 from top of head |
| Oversized | 0.040 |

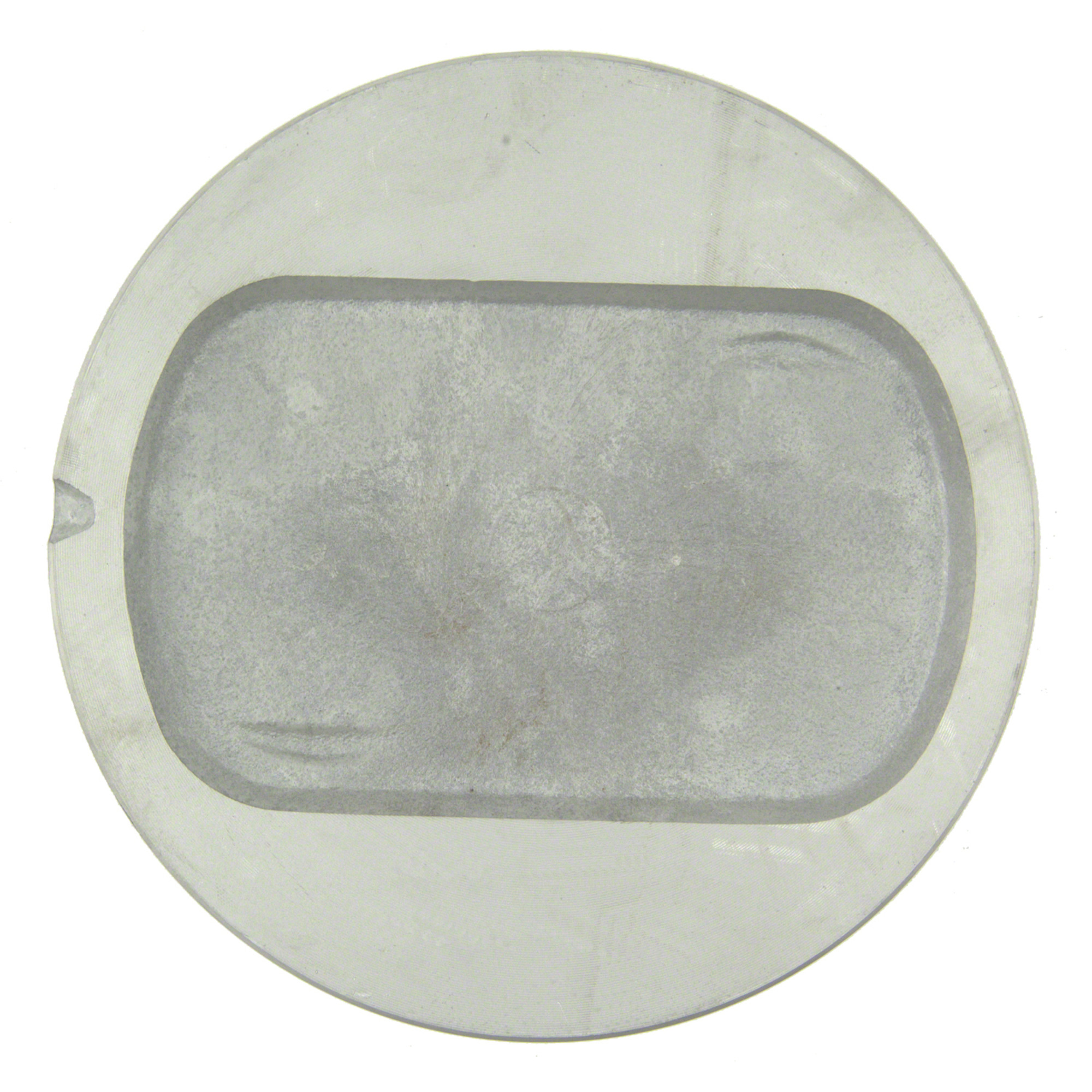

| Piston Head Type | Recessed Head .140 deep w/2 valve reliefs - 8.1:1 C.R. |
| Oversize Inch | 0.040 |
| Heavy Duty Supplier | Yes |
| Part Material | Cast |
| Bore (Inch) | 4.0000 |
| Pin Offset (MM) | 1.524 |
| Bore Diameter | 4.0000 |
| Ring 1 Qty | 2 |
| Note 1 | Oversize Inch .040 |
| Piston Pin Inside Diameter | 23.17 |
| Pin Diameter (MM) | 23.17 |
| Compression Distance | 1.752 |
| Ring Material | Cast |
| Ring 2 Width | 3/16 |
| Head Type | Recessed Head .140 deep w/2 valve reliefs - 8.1:1 C.R. |
| Bore (MM) | 101.6000 |
| Pin Offset (Inch) | 0.06 |
| Ring 2 Qty | 1 |
| Ring 1 Width | 5/64 |
| Head Illustration | 140 |

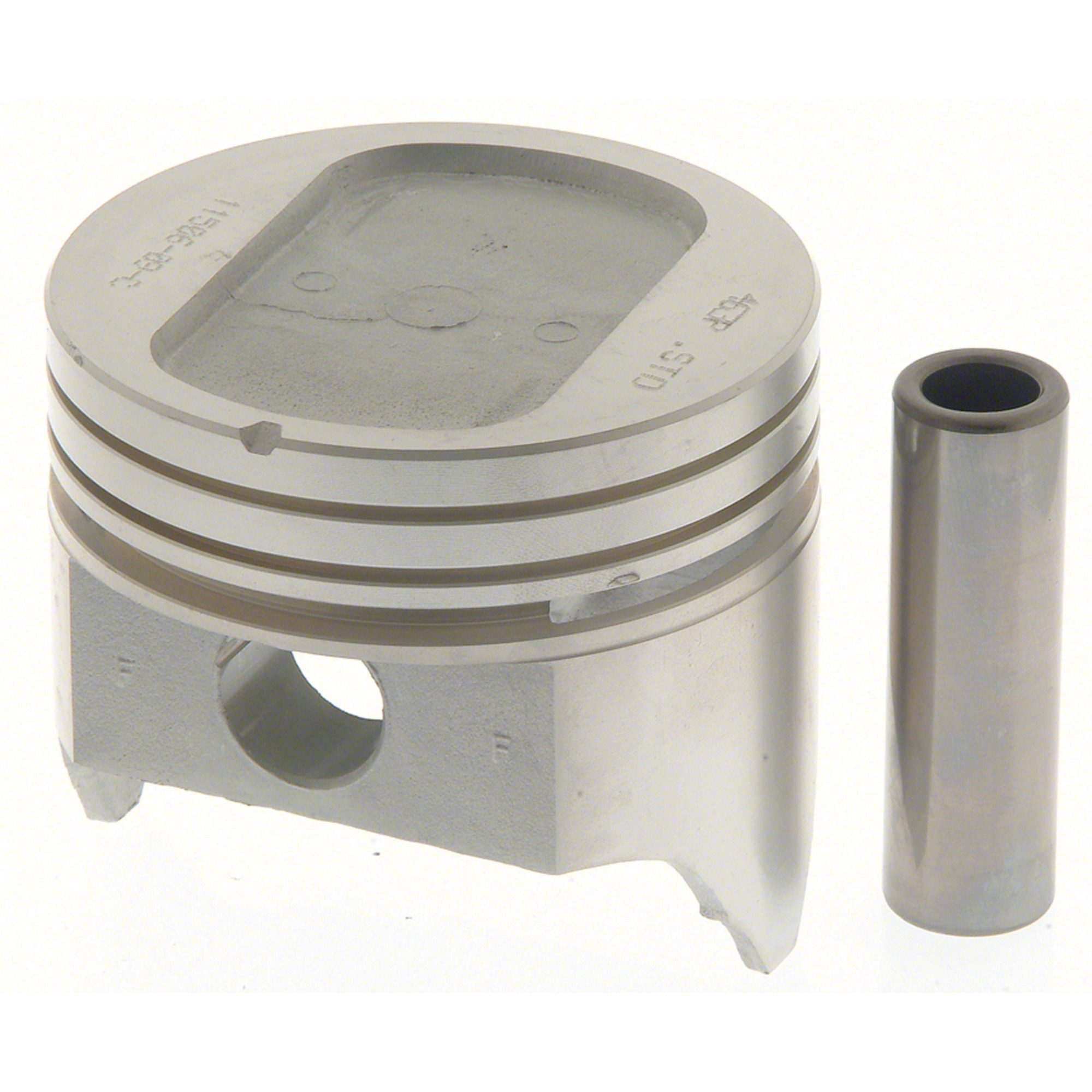

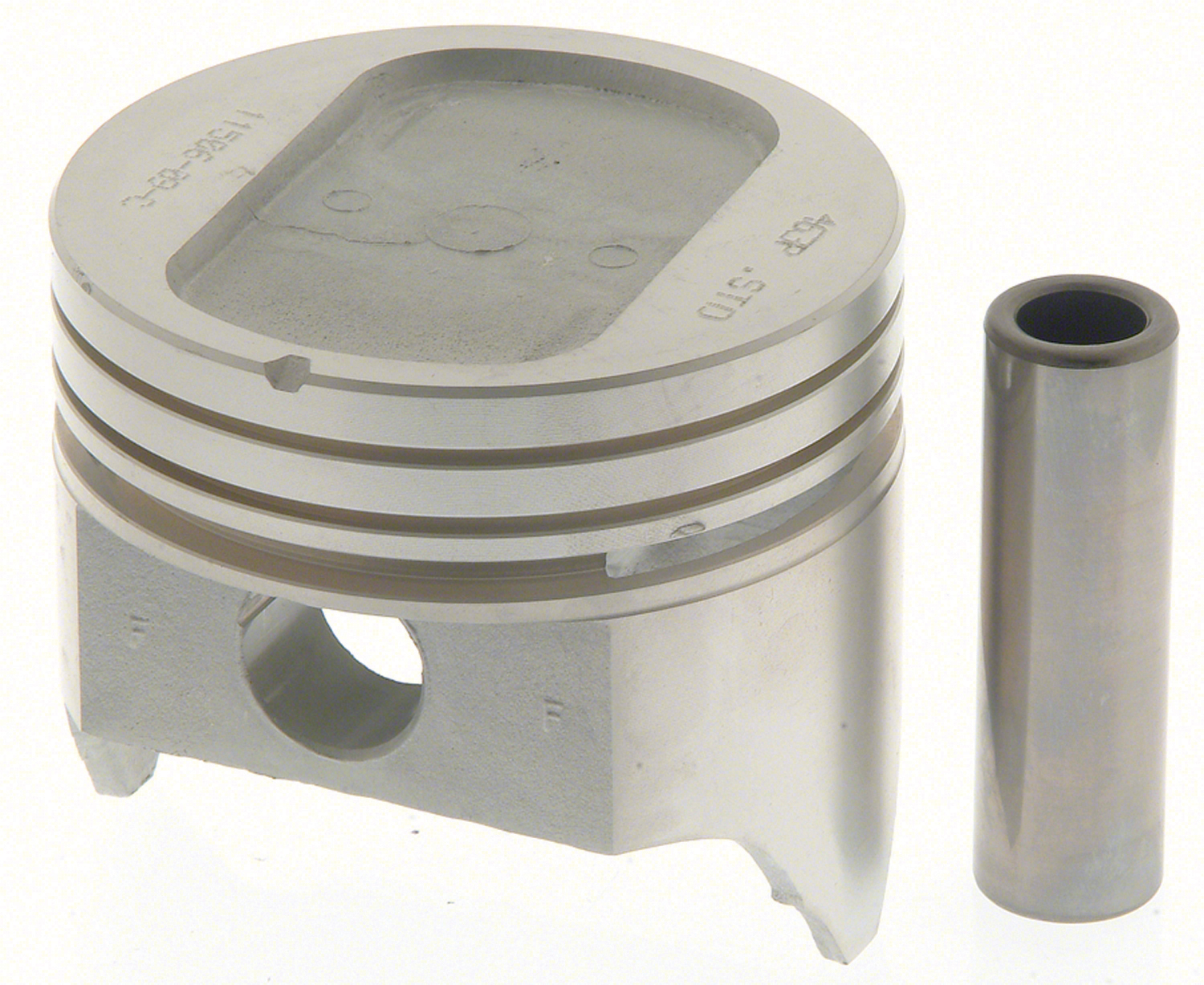

| Part Terminology | Engine Piston Set |
