| Piston Head Type | Step Head - 9.6:1 C.R.; Fits both L.H. & R.H. banks |
| Oversized | Yes |
| Heavy Duty Supplier | Yes |
| Bore (Inch) | 4.0938 |
| Bore Diameter | 104.3 |
| Assembly Lubricant Included | No |
| Ring 1 Qty | 2 |
| Note 1 | Oversize Inch .030 |
| Top Compression Ring Thickness | 0.0781 |
| Ring 2 Width | 3/16 |
| Head Type | Step Head - 9.6:1 C.R.; Fits both L.H. & R.H. banks |
| Bore (MM) | 104.3000 |
| Oversized Amount | 0.030 |
| Pin Diameter (Inch) | 0.9894 |

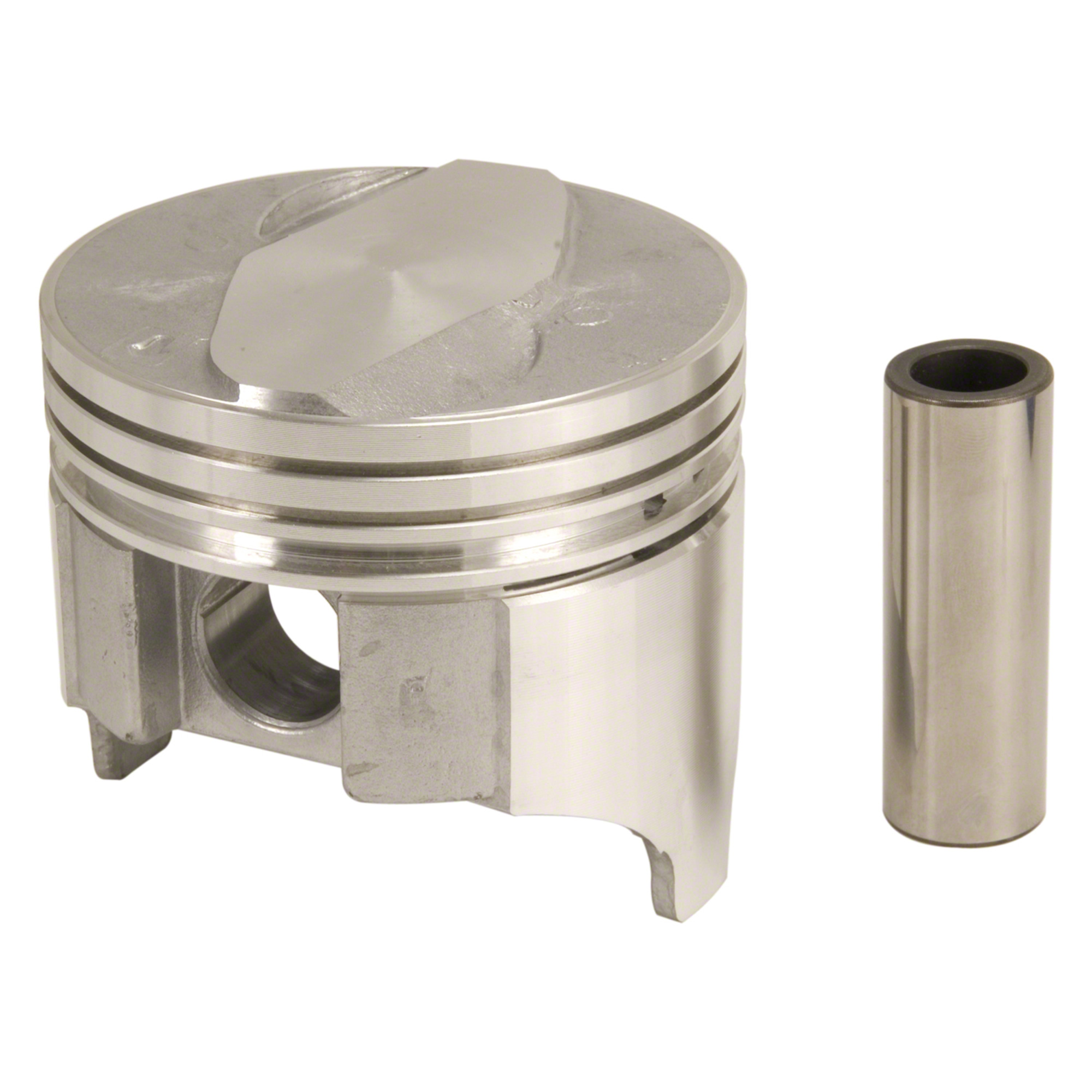

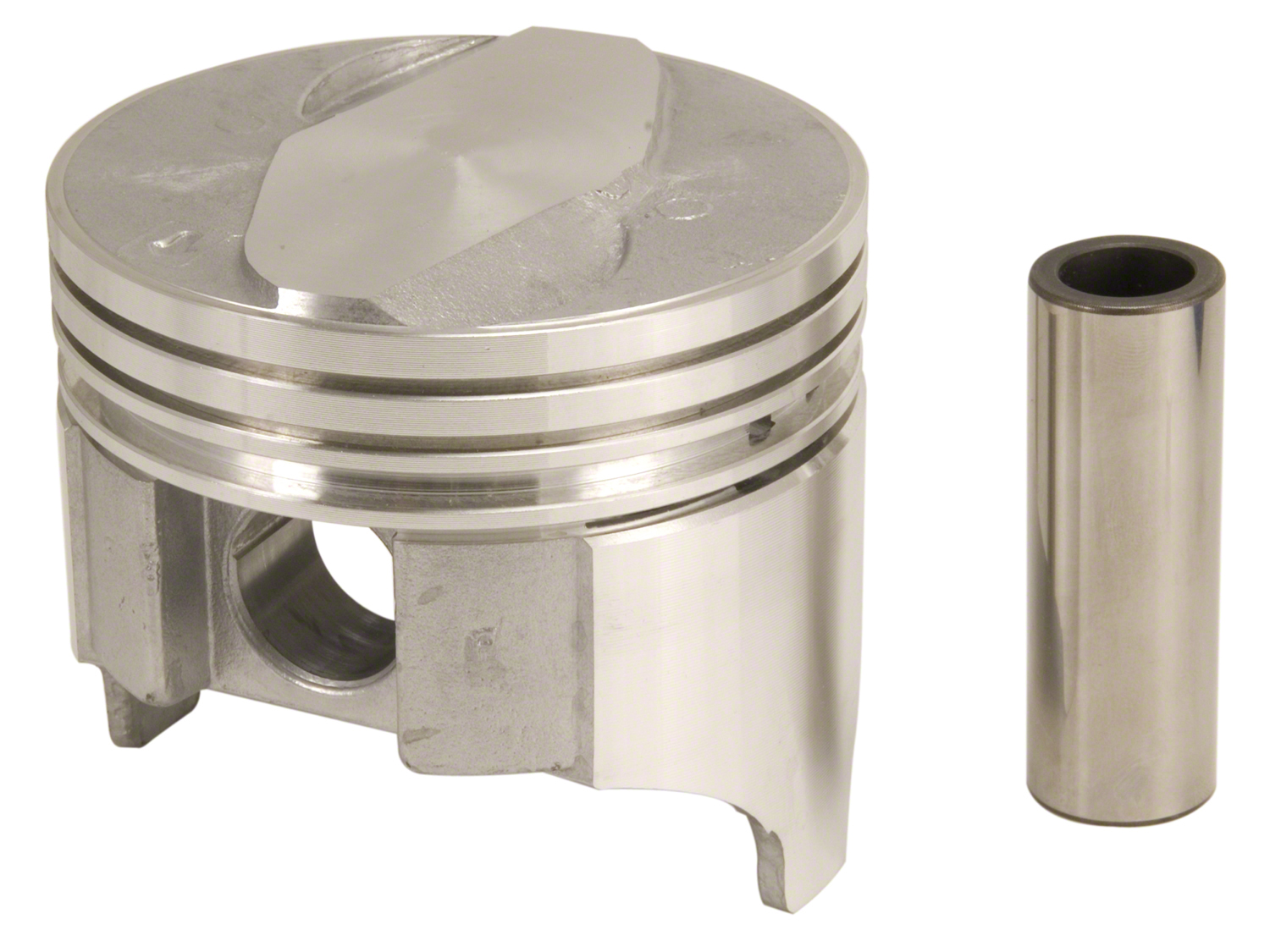

| Part Description | Engine Piston |
| Minimum Clearance | 0.0015 @ 2.630 from top of head |
| Oversize Inch | 0.030 |
| Part Material | Cast |
| Oil Ring Thickness | 0.1875 |
| Pin Offset (MM) | 1.524 |
| Piston Pin Outside Diameter | 25.131 |
| Second Compression Ring Thickness | 0.0781 |
| Piston Pin Inside Diameter | 25.131 |
| Pin Diameter (MM) | 25.131 |
| Compression Distance | 1.730 plus .200 step |
| Ring Material | Cast |
| Piston Material | Cast Aluminum |
| Pin Offset (Inch) | 0.06 |
| Ring 2 Qty | 1 |
| Grade Type | Premium |
| Ring 1 Width | 5/64 |
| Head Illustration | 3 |
| Part Terminology | Engine Piston Set |
