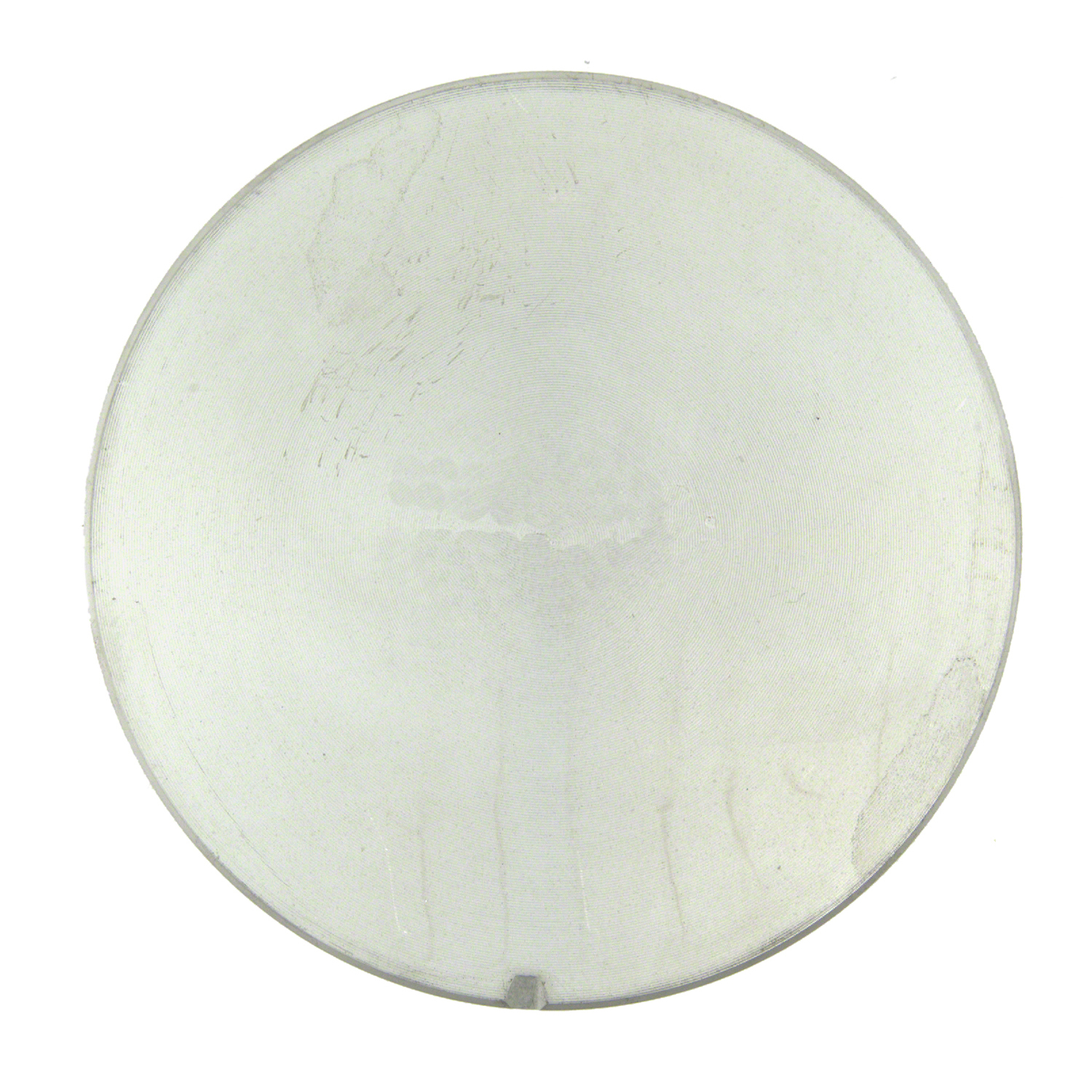

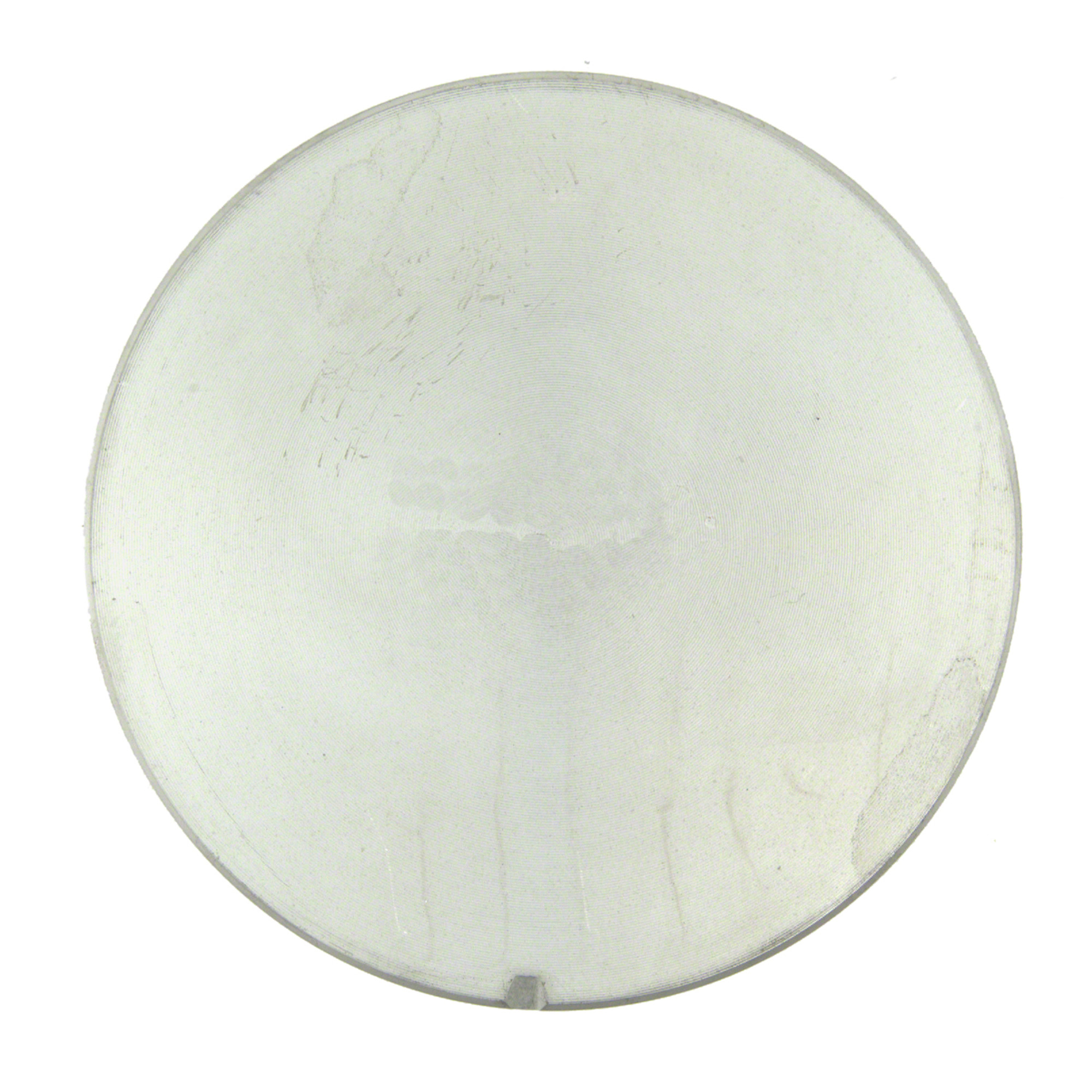

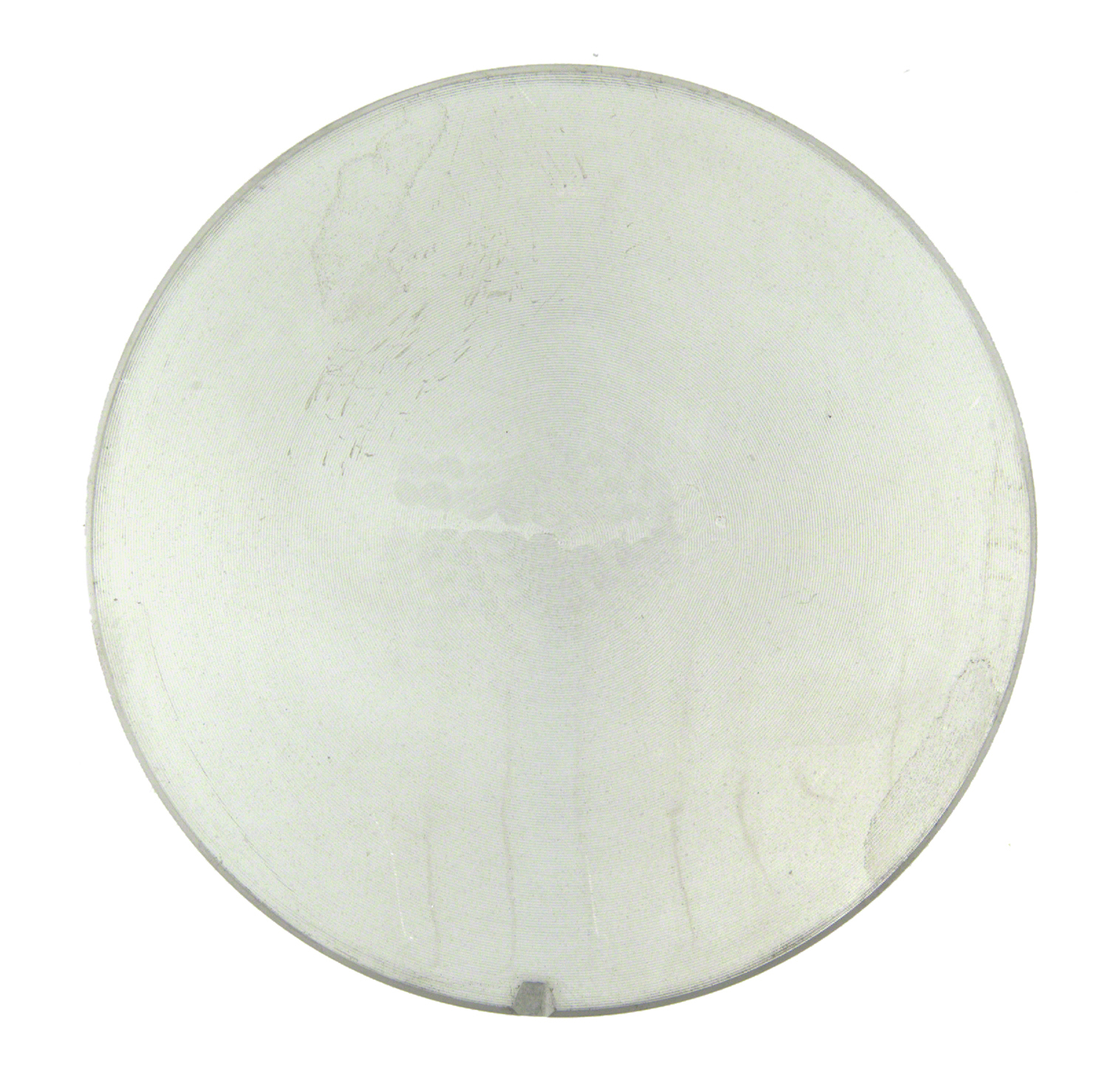

| Piston Head Type | Flat Head - 6.9:1 C.R. |
| Oversized | Yes |
| Heavy Duty Supplier | Yes |
| Bore (Inch) | 3.4375 |
| Bore Diameter | 87.3 |
| Assembly Lubricant Included | No |
| Ring 1 Qty | 2 |
| Note 1 | Oversize Inch .060 |
| Top Compression Ring Thickness | 0.0937 |
| Ring 2 Width | 5/32 |
| Head Type | Flat Head - 6.9:1 C.R. |
| Bore (MM) | 87.3000 |
| Oversized Amount | 0.060 |
| Pin Diameter (Inch) | 0.8591 |
| Part Description | Engine Piston |
| Minimum Clearance | 0.0015 @ bottom of skirt |
| Oversize Inch | 0.060 |
| Third Compression Ring Thickness | 0.1562 |
| Part Material | Cast |
| Oil Ring Thickness | 0.1562 |
| Piston Pin Outside Diameter | 0.8591 |
| Second Compression Ring Thickness | 0.0937 |
| Piston Pin Inside Diameter | 21.821 |
| Pin Diameter (MM) | 21.821 |
| Compression Distance | 1.977 |
| Ring Material | Cast |
| Prop 65 Label (Yes/No) | No |
| Piston Material | Cast Aluminum |
| Ring 2 Qty | 2 |
| Grade Type | Premium |
| Ring 1 Width | 3/32 |
| Head Illustration | 23 |
| Part Terminology | Engine Piston Set |
