| Piston Head Type | Ricardo |
| Oversized | No |
| Heavy Duty Supplier | Yes |
| Weight W Pin Gram | 01300.+/- 00. |
| Bore (Inch) | 4.0551 |
| Pin Type | F |
| Ring 3 Width | 4.00mm |
| Assembly Lubricant Included | No |
| Note 1 | Standard Size |
| Ring 1 Qty | 1 |
| Top Compression Ring Thickness | 3.00 |
| Standard Size | Standard |
| Ring 2 Width | 2.00mm |
| Cylinder Bore Diameter | 103.0 |
| Head Type | Flat Head w/Ricardo Cup; Anodized top |
| Bore (MM) | 103.0000 |
| Pin Diameter (Inch) | 1.22 |

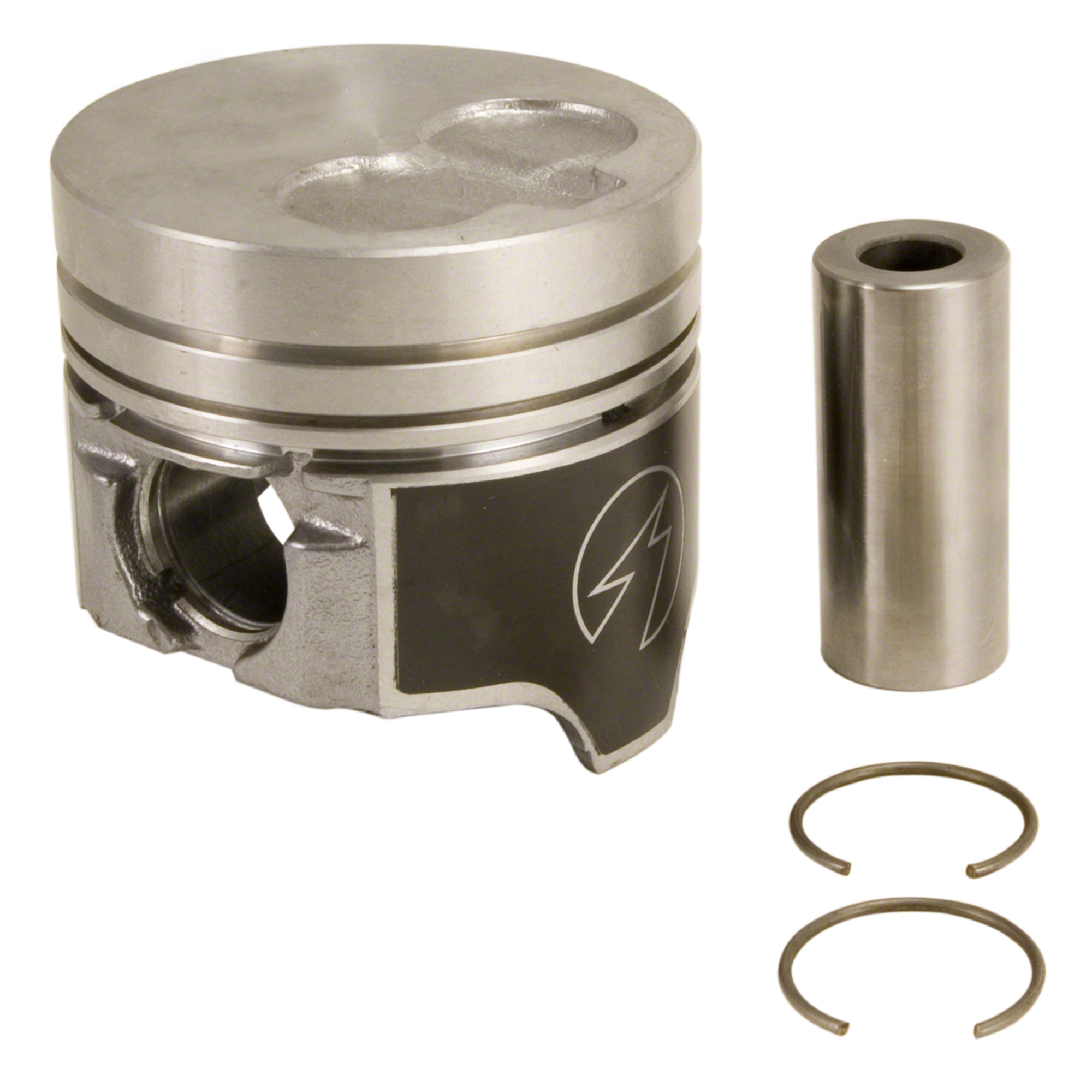

| Part Description | Engine Piston |
| Minimum Clearance | 0.10mm @ 16.0mm from the bottom |
| Part Material | Cast |
| Oil Ring Thickness | 4.00 |
| Ring 3 Qty | 1 |
| Piston Pin Outside Diameter | 1.220 |
| Second Compression Ring Thickness | 2.00 |
| Pin Diameter (MM) | 30.988 |
| Compression Distance | 53.77mm |
| Prop 65 Label (Yes/No) | No |
| Piston Material | Cast Aluminum |
| Ring 2 Qty | 1 |
| Grade Type | Premium |
| Ring 1 Width | 3.00mm |
| Head Illustration | 123 |
| Part Terminology | Engine Piston |
