| Piston Head Type | Recessed Head .105 deep x 2.320 dia. - 9.2:1 C.R. |
| Oversized | No |
| Heavy Duty Supplier | Yes |
| Weight W Pin Gram | 00631.+/- 00. |
| Bore (Inch) | 3.6800 |
| Pin Type | P |
| Bore Diameter | 3.6800 |
| Assembly Lubricant Included | No |
| Note 1 | Standard Size |
| Ring 1 Qty | 2 |
| Top Compression Ring Thickness | 0.0781 |
| Standard Size | Standard |
| Ring 2 Width | 3/16 |
| Head Type | Recessed Head .105 deep x 2.320 dia. - 9.2:1 C.R. |
| Bore (MM) | 93.5000 |
| Pin Diameter (Inch) | 0.9125 |

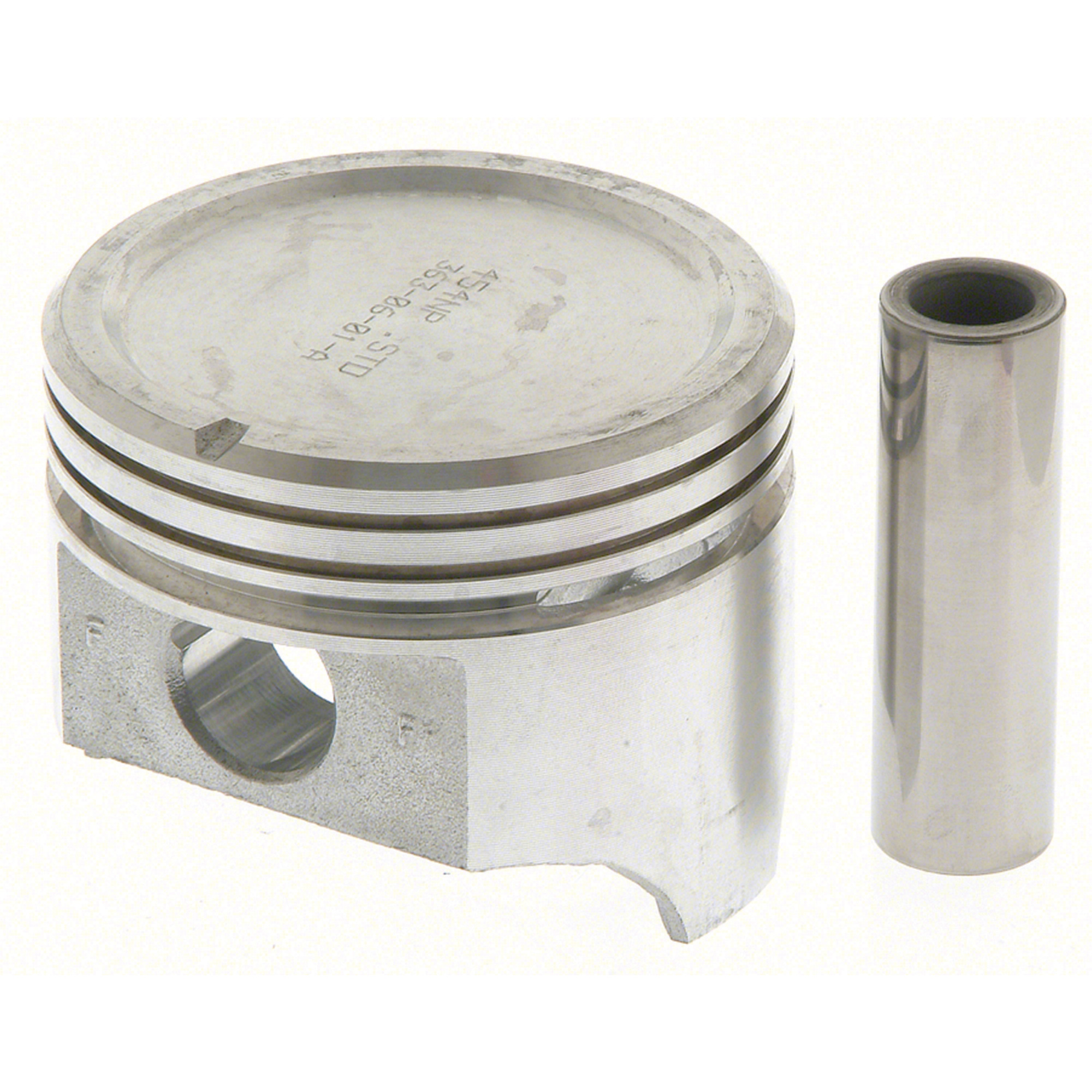

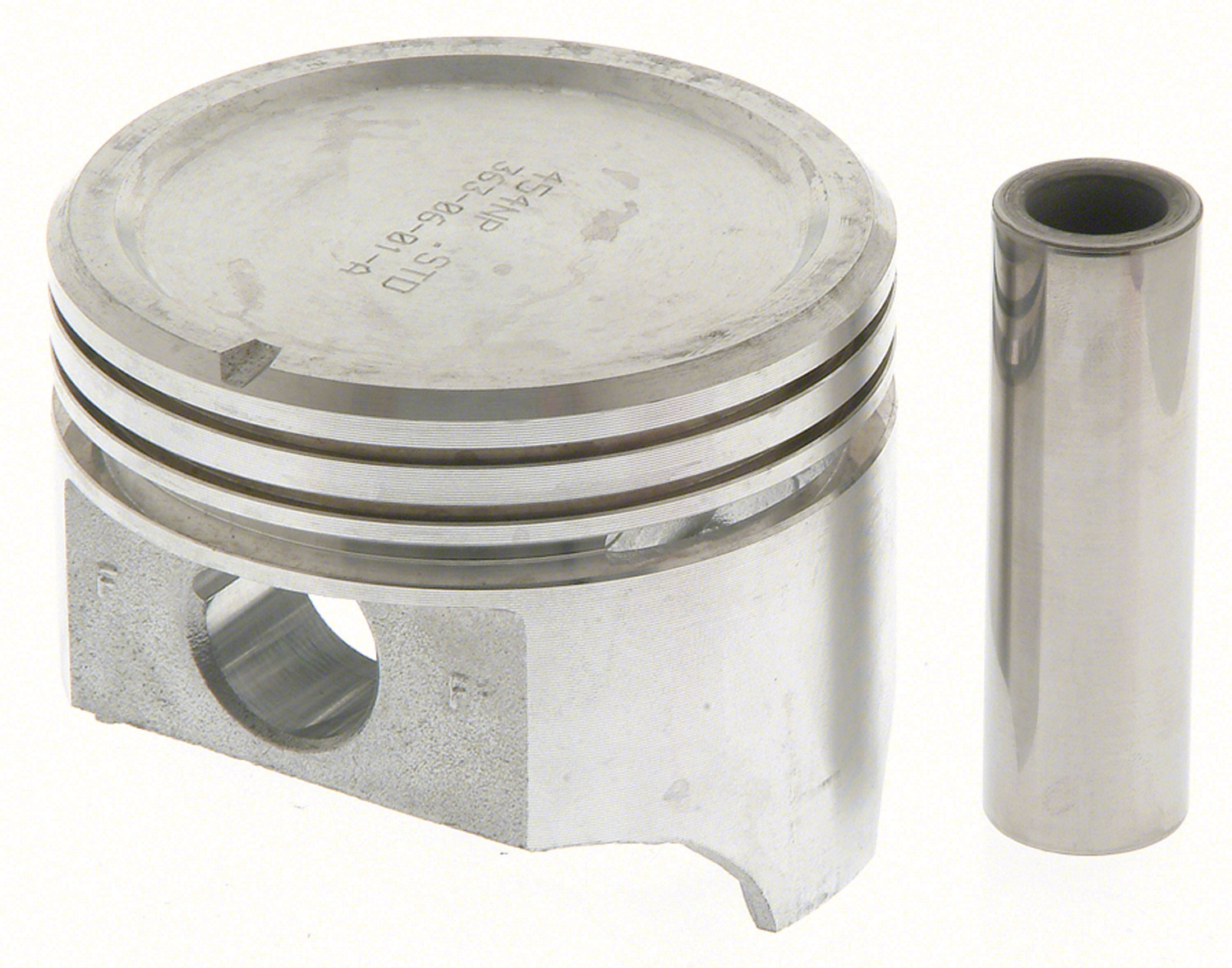

| Part Description | Engine Piston |
| Minimum Clearance | 0.0015 @ 1.940 from top of head |
| Part Material | Cast |
| Oil Ring Thickness | 0.1875 |
| Pin Offset (MM) | 1.524 |
| Piston Pin Outside Diameter | 23.178 |
| Second Compression Ring Thickness | 0.0781 |
| Piston Pin Inside Diameter | 23.178 |
| Pin Diameter (MM) | 23.178 |
| Compression Distance | 1.500 |
| Ring Material | Cast |
| Piston Material | Cast Aluminum |
| Pin Offset (Inch) | 0.06 |
| Ring 2 Qty | 1 |
| Grade Type | Premium |
| Ring 1 Width | 5/64 |
| Head Illustration | 43 |
| Part Terminology | Engine Piston Set |
