Product Details
expand_less
| Temperature |
190 Deg. F |
| Seal Type |
O-Ring |
| Heavy Duty Supplier |
Yes |
| Freight Class |
70 |
| Sealing Flange Outside Diameter |
67.31 |
| Duty Type |
Heavy Duty |
| Height from Flange to Top of Bridge |
1.82 in |
| Start to Open Temperature |
87.78 |
| Jiggle Pin Weep Hole |
No |
| Height from Flange to Bottom |
1.45 in |
| Design |
Sleeve |
| Flange Diameter (With Seal) (in) |
2.875 |
| Installation Tool Included |
No |
| Bolt Hole Quantity |
0 |
| Seal Material |
Rubber |
| Height from Flange to Bottom (in) |
1.45 |
| Flange Diameter (With Seal) |
2.875 in |
| Gasket Or Seal Included |
Yes |
| Color |
Silver |
| Electric |
No |
| Material |
Stainless Steel |
| Bypass Plate Diameter |
1.03 in |
| Type |
Heavy Duty |
| Gasket Or Seal Required |
Yes |
| Gasket Or Seal Material |
Metal |
| MAP Controlled |
No |
| Prop 65 |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Gasket Quantity |
1 |
| Temperature (F) |
190 Degrees |
| Flange Diameter (Without Seal) |
2.652 in |
| Bypass Plate Diameter (in) |
1.03 |
| Flange Diameter (Without Seal) (in) |
2.652 |
| Height Between Flanges |
36.83 |
| Grade Type |
OEM |
| Height from Flange to Top of Bridge (in) |
1.82 |
| Part Terminology |

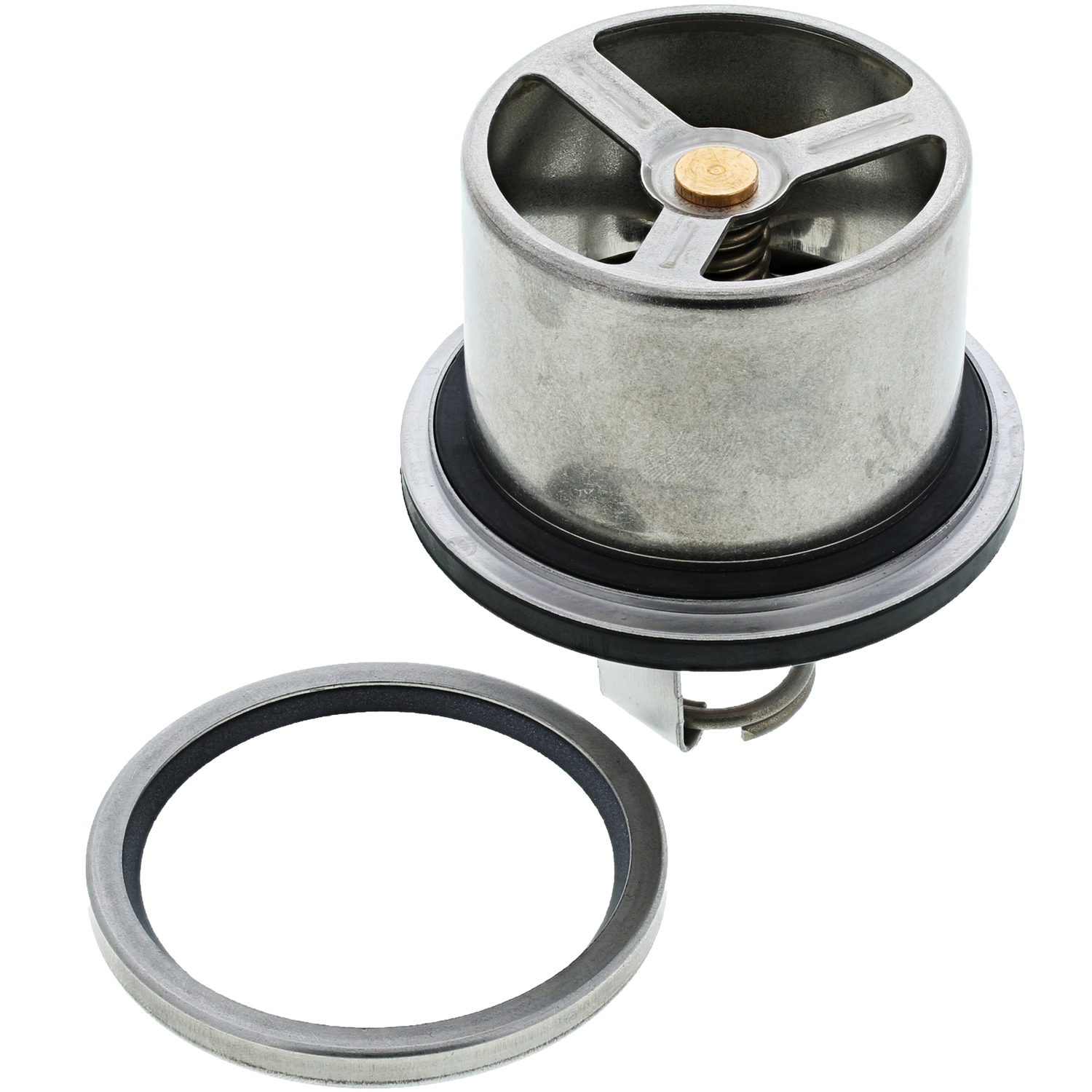

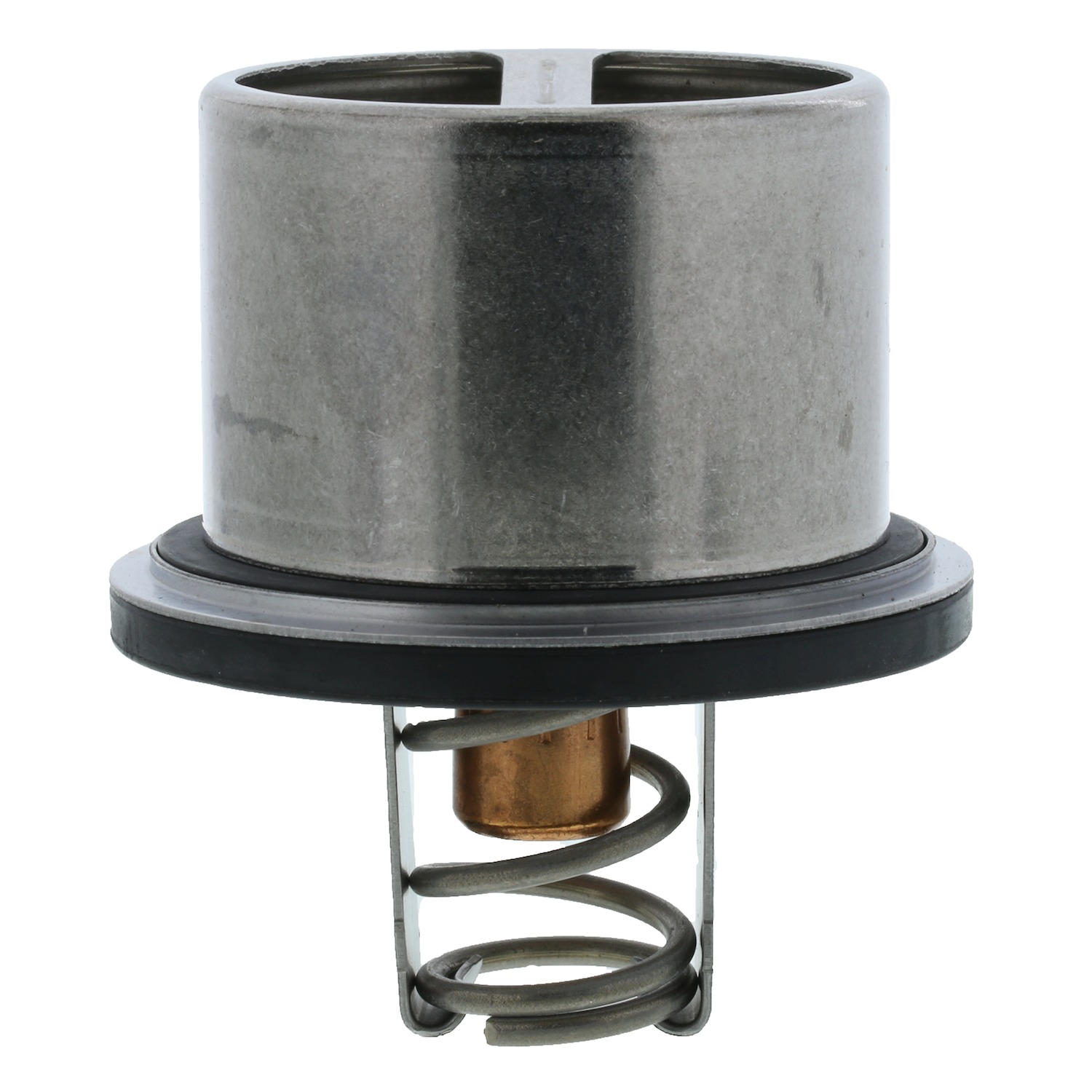

Engine Coolant Thermostat |
Features & Benefits
expand_more
Manufactured with OEM quality materials and safety standards by an OE Supplier. Stands up to even the most demanding automotive cooling systems. Manufactured with OEM specifications and processes. Copper case and wax compound assures rapid response to temperature changes in the coolant.
Application Summary
expand_more
(1990-02) Evobus S 215 HDH,(1990-97) Duplex D350,(1990-97) Duplex D500,(1990-97) Ford LTA9000,(1990-98) Advance Mixer S,(1991-03) Crane Carrier Low Entry,(1991-91) Crane Carrier IRL,(1991-97) Ford LA9000,(1991-97) Ford LS9000,(1992-96) Ford LLA9000,(1992-96) Ford LTLS9000,(1992-97) Ford LT9000,(1992-97) Ford LTLA9000,(1992-97) Ford LTS9000,(1993-95) Flxible Transit Bus Metro 30,(1993-95) Flxible Transit Bus Metro 35,(1993-95) Flxible Transit Bus Metro 40,(1993-97) Ford L9000,(1994-05) Emergency One Emergency One,(1994-94) Duplex D9800,(1994-94) Ford LLS9000,(1994-97) Advance Mixer Glider,(1994-97) Duplex D9400,(1995-00) Dina Transit Bus Viaggio 1000,(1995-03) Blue Bird Wanderlodge,(1995-97) Duplex D8400,(1996-98) Ford A9513,(1996-98) Ford AT9513,(1996-98) Ford LT9513,(1996-99) Advance Mixer M,(1997-09) American LaFrance ALF Eagle,(1997-97) Ford A9522,(1997-98) Ford AT9522,(1997-98) Ford L9513,(1997-98) Ford LT9522,(1998-03) Blue Bird Commercial Bus,(1998-98) Ford LT9501,(1998-98) Ford LT9511,(2000-06) Advance Mixer Advance Mixer,(2003-16) Evobus S 417,(2006-12) Crane Carrier Equipment Carrier,(2013-13) Crane Carrier Drill Rig
