| Overall Height | 7.00 in |
| Bypass Diameter | 1.58 IN |
| Seal Type | Gasket |
| Open Temperature | 187 Deg. F |
| Heavy Duty Supplier | Yes |
| Mounting Hole Quantity | 10 |
| Sensor Included | No |
| Gasket/Seal Material | Metal |
| Mounting Depth From Flange | N/A |
| Sealing Flange Outside Diameter | 1.58 in |
| Bolt Hole Center To Bolt Hole Center | 2.77, 2.02, 1.62, 2.72, 1.62, 2.03, 2.78 in |
| Start to Open Temperature | 86.11 |
| Jiggle Pin Weep Hole | Yes |
| Mounting Hole Diameter | 8.382 |
| Gasket Type | Gasket |
| Installation Tool Included | No |
| Height From Flange | 2.07 in |
| Bolt Hole Quantity | 10 |
| Meets or Exceeds Original Equipment Manufacture Specifications | Yes |
| Height | 7.00 IN |
| Number Of Outlet Ports | 4 |
| Width | 6.50 in |
| Outlet Outside Diameter | 17.272 |
| Bypass Length | 1.58 IN |
| Pulley Included | Yes |
| Bleeder Hole | Yes |
| Gasket Or Seal Included | Yes |
| Color | Black, Silver |
| Mounting Hardware Included | No |
| Flange Thickness | 0.11 |
| Material | Metal |
| Number of Gaskets | 2 |
| Outlet Inside Diameter | 13.21 |
| Gasket Or Seal Required | Yes |
| Inlet Inside Diameter | N/A |
| Gasket Or Seal Material | Metal |
| Jiggle Pin Included | Yes |
| Prop 65 | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Flange Diameter | 1.58 in |
| Gasket Quantity | 2 |
| Outlet Port Quantity | 4 |
| Flange Width | 40.132 |
| Gasket/Seal Preinstalled | No |
| Pulley Material | Steel |
| Number of Seals | 0 |
| Height Between Flanges | 2.14 in |

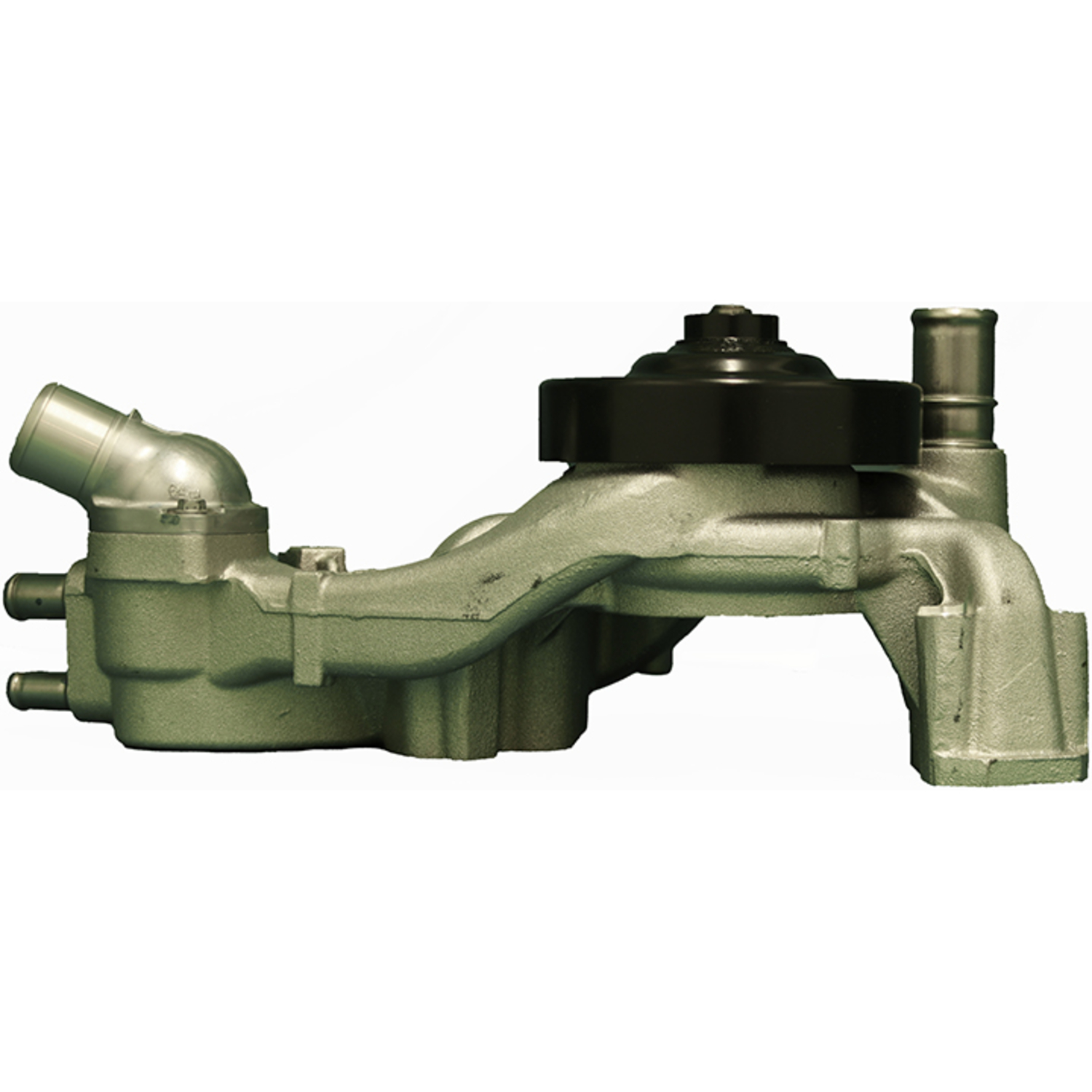

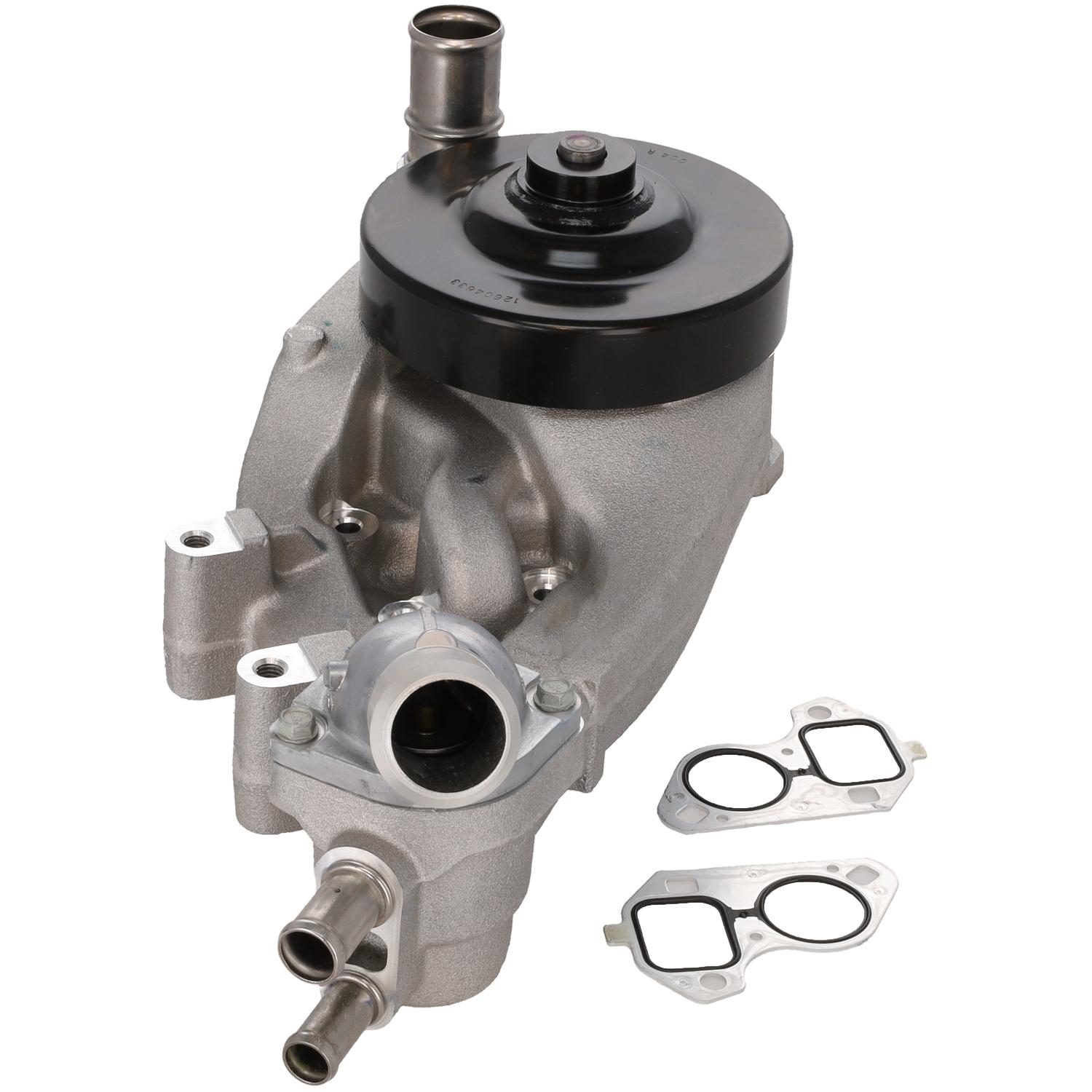

| Part Terminology | Engine Water Pump and Thermostat Assembly |
