Wheel Bearing and Hub Assembly MOOG Hub Assemblies 515016

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

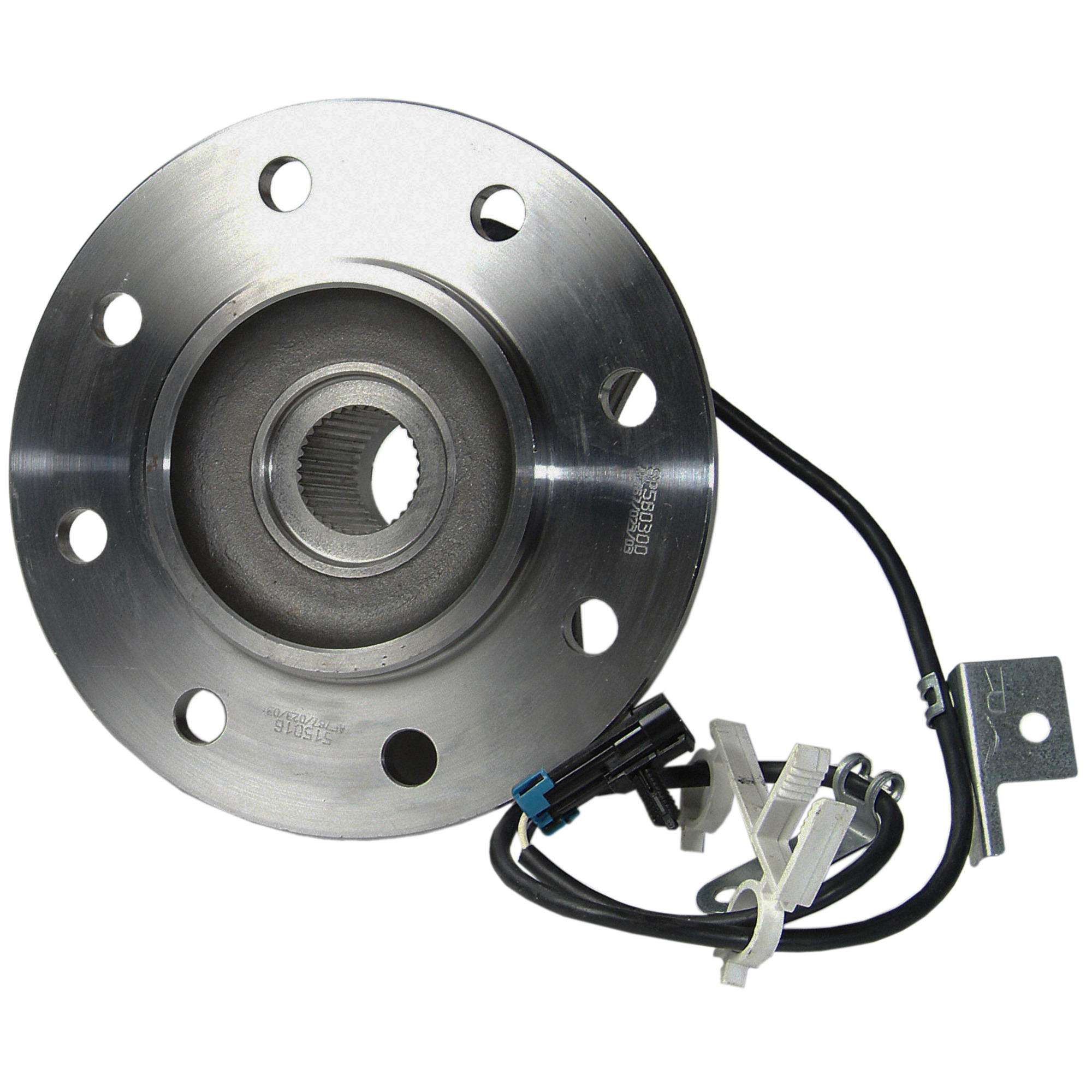

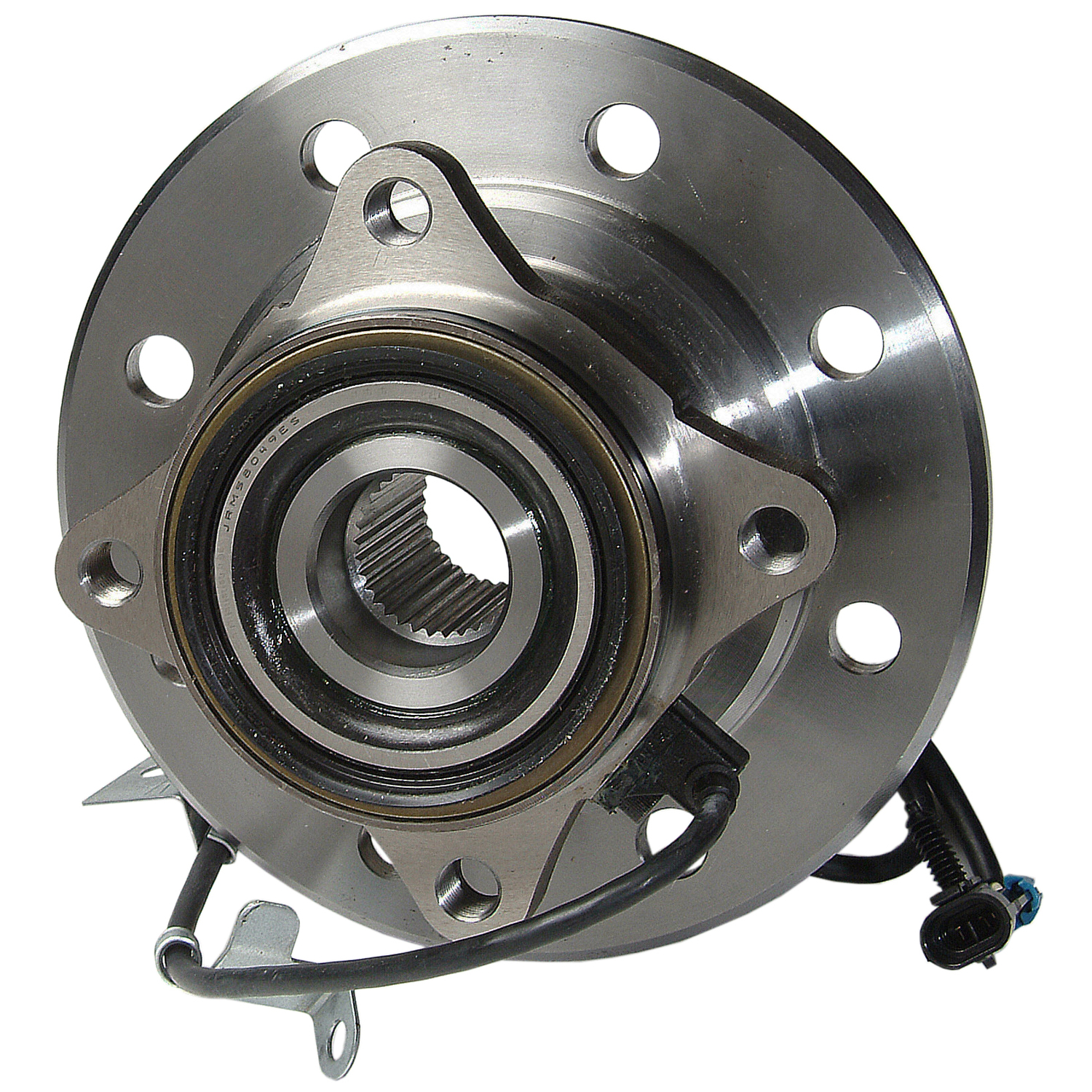

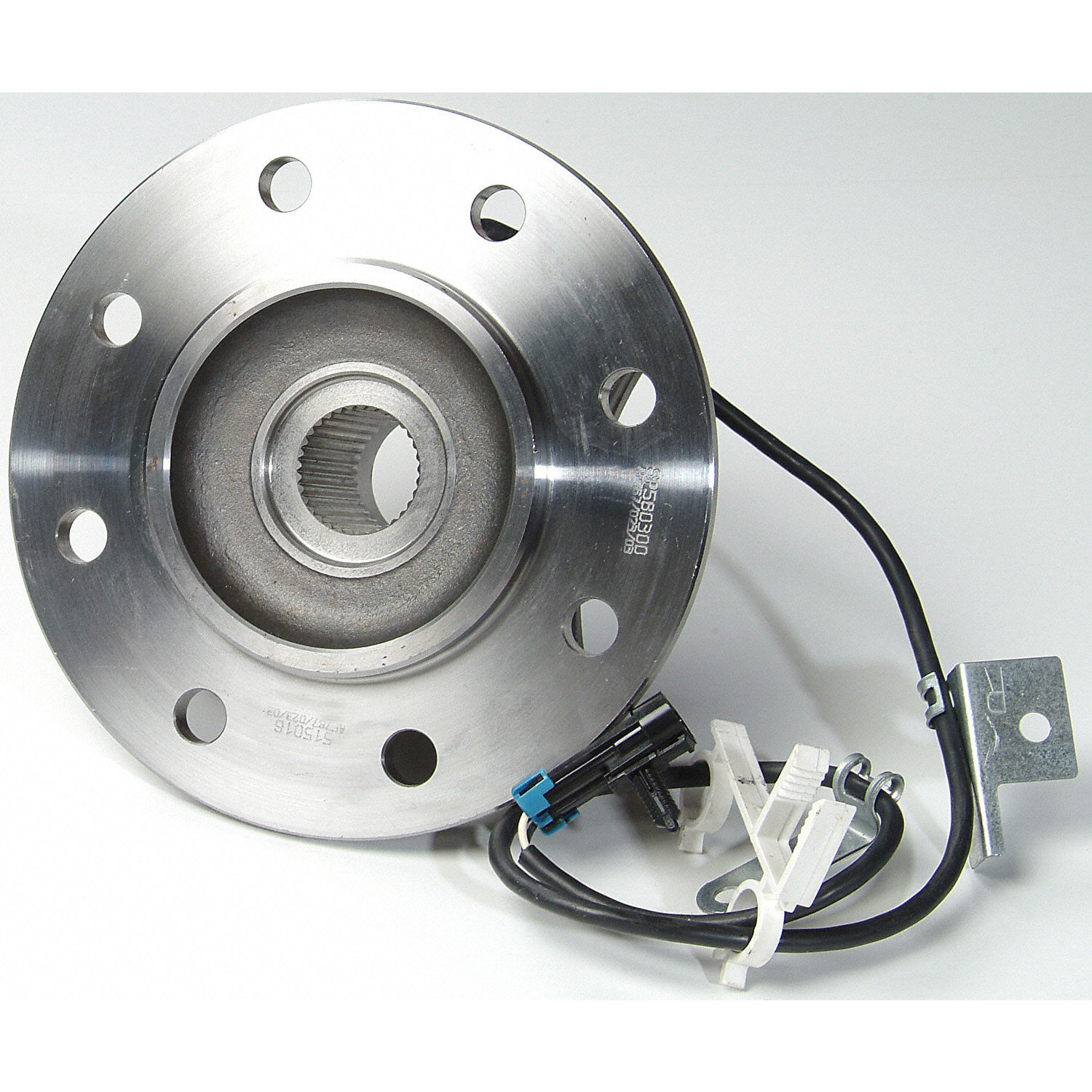

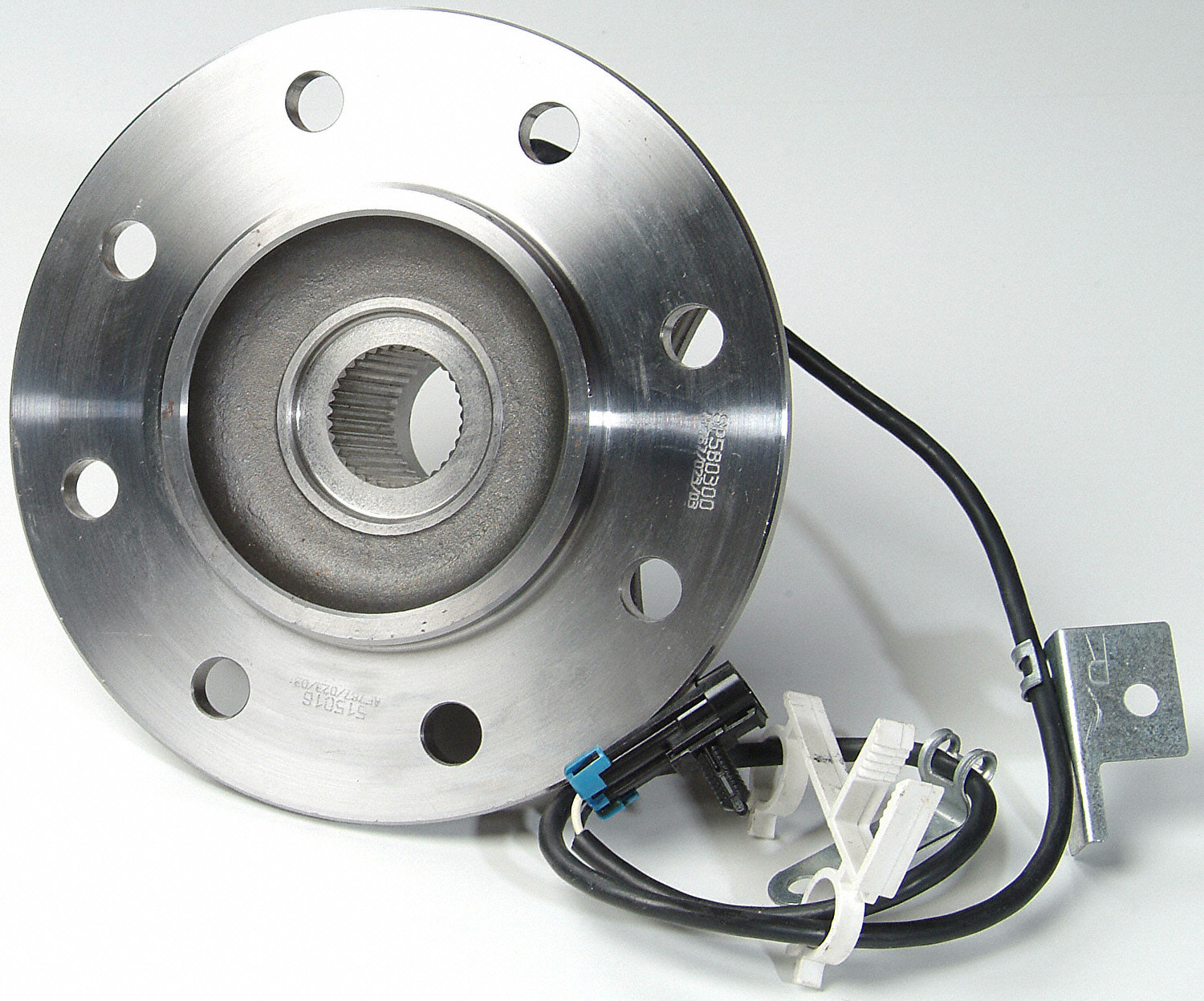

Front Right Wheel Bearing and Hub Assembly

Part # 515016 | Line Code: 307

$307.46

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Product Details

Brake Pilot Diameter	136.900
Flange Shape	MODIFIED CIRCLE
Spline Quantity	33
Anti Lock Brake Sensor Included	Yes
Heavy Duty Supplier	Yes
Wheel Pilot Diameter	116.600
Flange Bolt Hole Quantity	4
Wheel Stud Quantity	8
Wheel Stud Size	15.3
Bolt Circle Diameter	6.500
Flange Diameter	208.000
Flange Offset	68.300
Hub Pilot Diameter	104.800
Part Terminology	Wheel Bearing and Hub Assembly

Features & Benefits

By constantly introducing design enhancements that extend product life and simplify installation and replacement, MOOG has earned its reputation as the chassis industry's Problem Solver.

Application Summary

1995-1996 Chevrolet K1500 Suburban Base LS LT (Front Right) (Liter: 6.5); 1995 Chevrolet K2500 (Front Right) (Qualifier: with 8 Stud Hub); 1995 Chevrolet K2500 Suburban (Front Right) (Qualifier: with 8 Stud Hub); 1995 Chevrolet K3500 (Front Right); 1995-1996 GMC K1500 Suburban SLE Base SLT (Front Right) (Liter: 6.5); 1995 GMC K2500 (Front Right) (Qualifier: with 8 Stud Hub); 1995 GMC K2500 Suburban (Front Right) (Qualifier: with 8 Stud Hub); 1995 GMC K3500 (Front Right)
