Wheel Bearing and Hub Assembly MOOG Hub Assemblies 513368

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

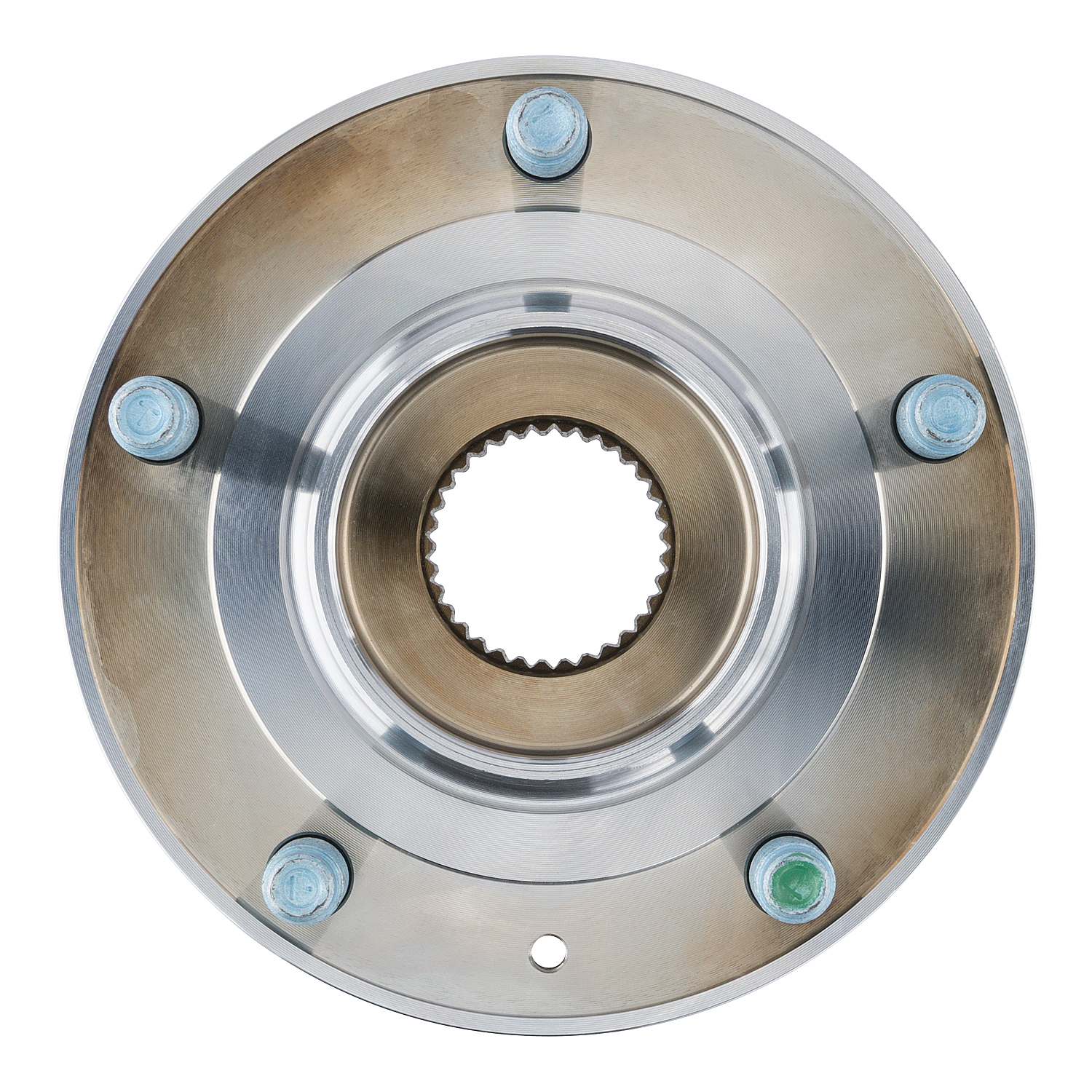

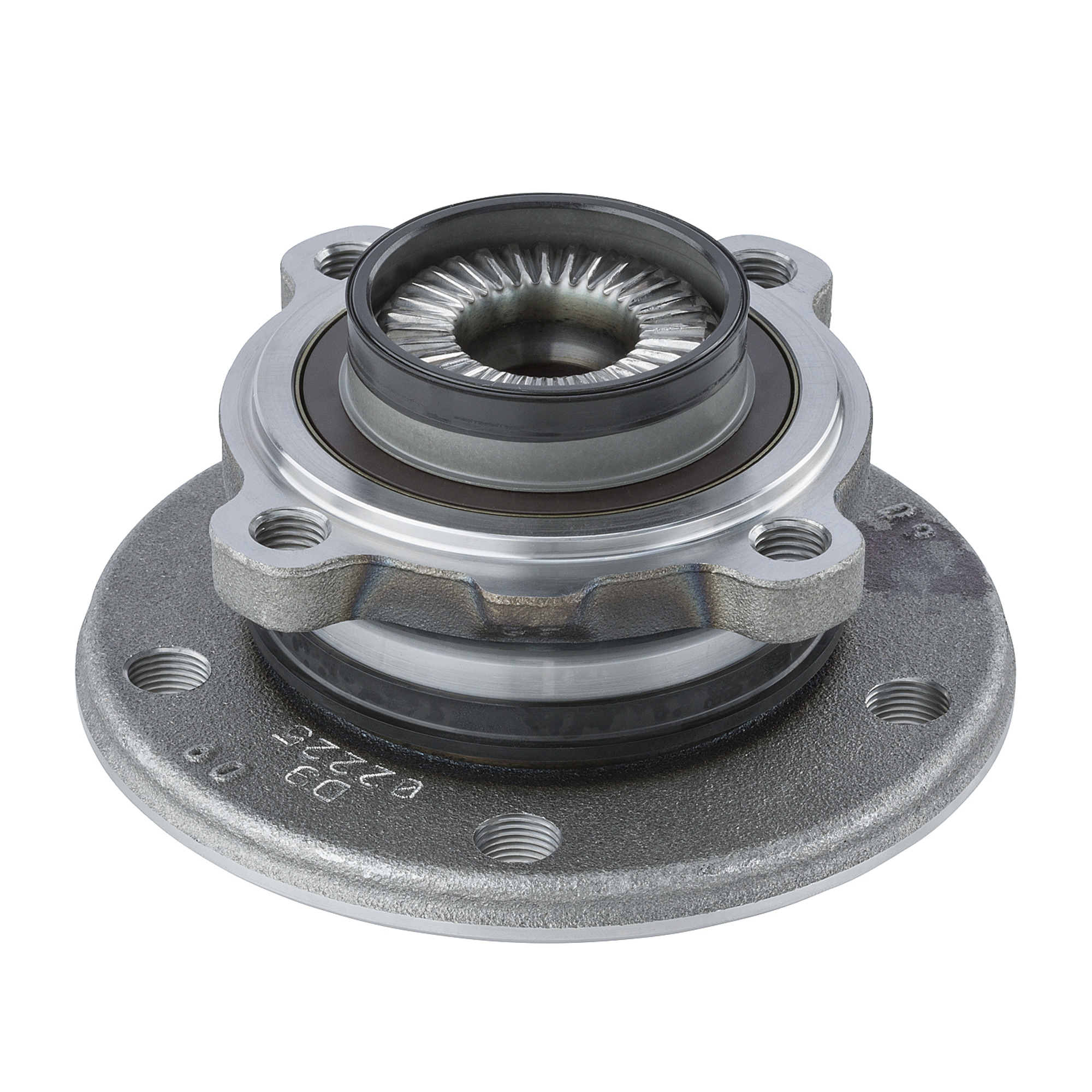

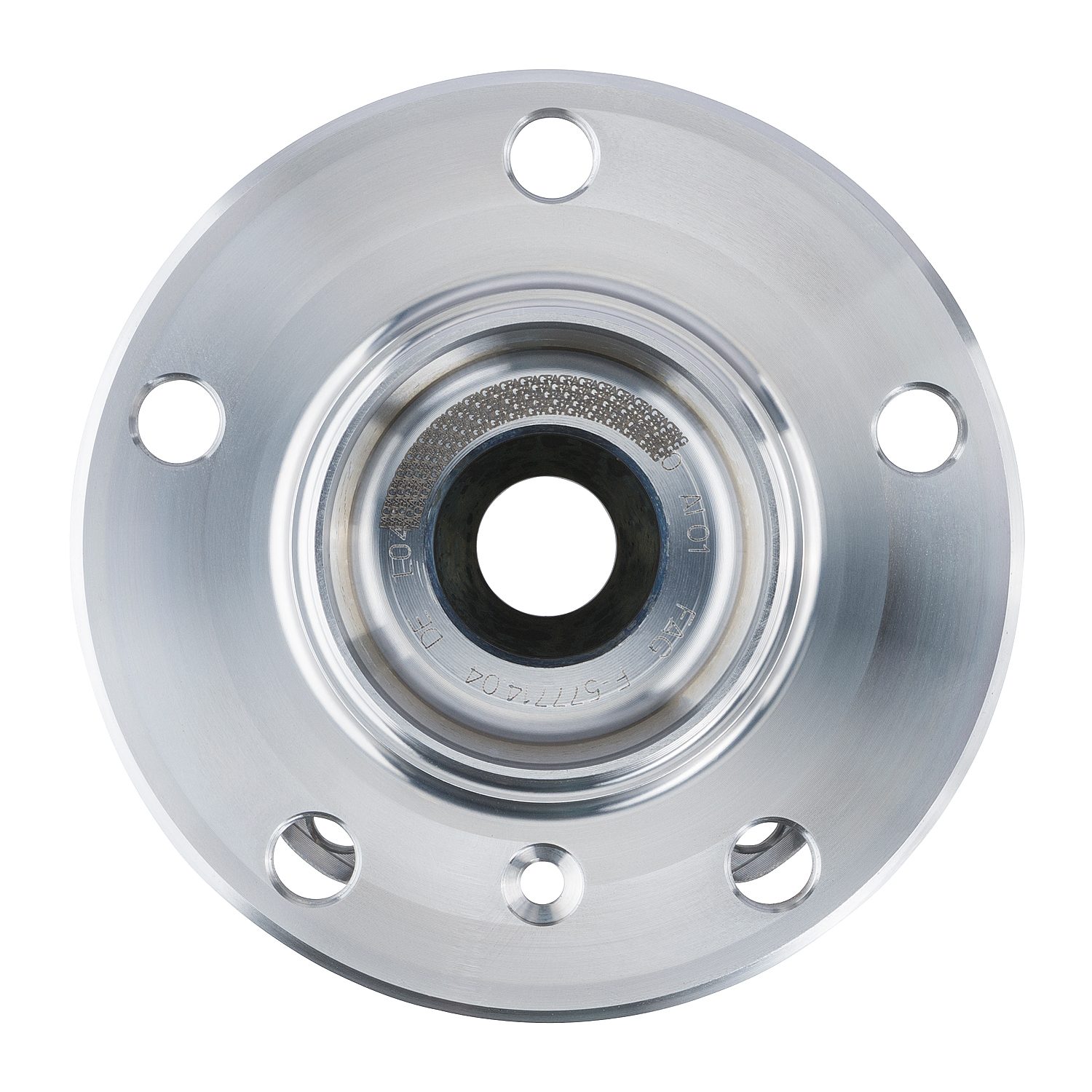

Front Wheel Bearing and Hub Assembly

Part # 513368 | Line Code: 307

$240.87

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Product Details

Wheel Stud Quantity	5
Brake Pilot Diameter	78.900
Bolt Circle Diameter	120.200
Spline Quantity	31
Flange Diameter	147.000
Anti Lock Brake Sensor Included	Yes
Heavy Duty Supplier	Yes
Wheel Pilot Diameter	72.500
Flange Bolt Hole Quantity	4
Flange Offset	51.000
Hub Pilot Diameter	90.000
Part Terminology	Wheel Bearing and Hub Assembly

Features & Benefits

By constantly introducing design enhancements that extend product life and simplify installation and replacement, MOOG has earned its reputation as the chassis industry's Problem Solver.

Application Summary

2013-2016 BMW 320i xDrive (Front) (Drive: AWD); 2014-2016 BMW 428i xDrive (Front) (Drive: AWD / Qualifier: From 10/2013); 2014-2016 BMW 435i xDrive (Front) (Drive: AWD / Qualifier: From 10/2013); 2014-2016 BMW 328i GT xDrive (Front) (Drive: AWD / Qualifier: From 10/2013); 2014-2016 BMW 335i GT xDrive (Front) (Drive: AWD); 2014-2016 BMW 328d xDrive (Front) (Drive: AWD / Qualifier: From 10/2013); 2015-2016 BMW 435i xDrive Gran Coupe (Front) (Drive: AWD); 2015-2016 BMW 428i xDrive Gran Coupe (Front) (Drive: AWD); 2015-2016 BMW 228i xDrive (Front) (Drive: AWD); 2015-2016 BMW M235i xDrive (Front) (Drive: AWD); 2016 BMW 340i xDrive (Front) (Drive: AWD); 2013-2016 BMW 328i xDrive (Front) (Liter: 2.0 & Engine(cc): 1997 & Engine(ci): 122 & Cylinder: 4 & Block: L & Bore(in): 3.31 & Bore(mm): 84.0 & Stroke(in): 3.55 & Stroke(mm): 90.1 & Drive: AWD / Qualifier: From 10/2013); 2013-2015 BMW 335i xDrive (Front) (Doors: 4 & Body: Sedan & Drive: AWD)
