Wheel Bearing and Hub Assembly MOOG Hub Assemblies 513062

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

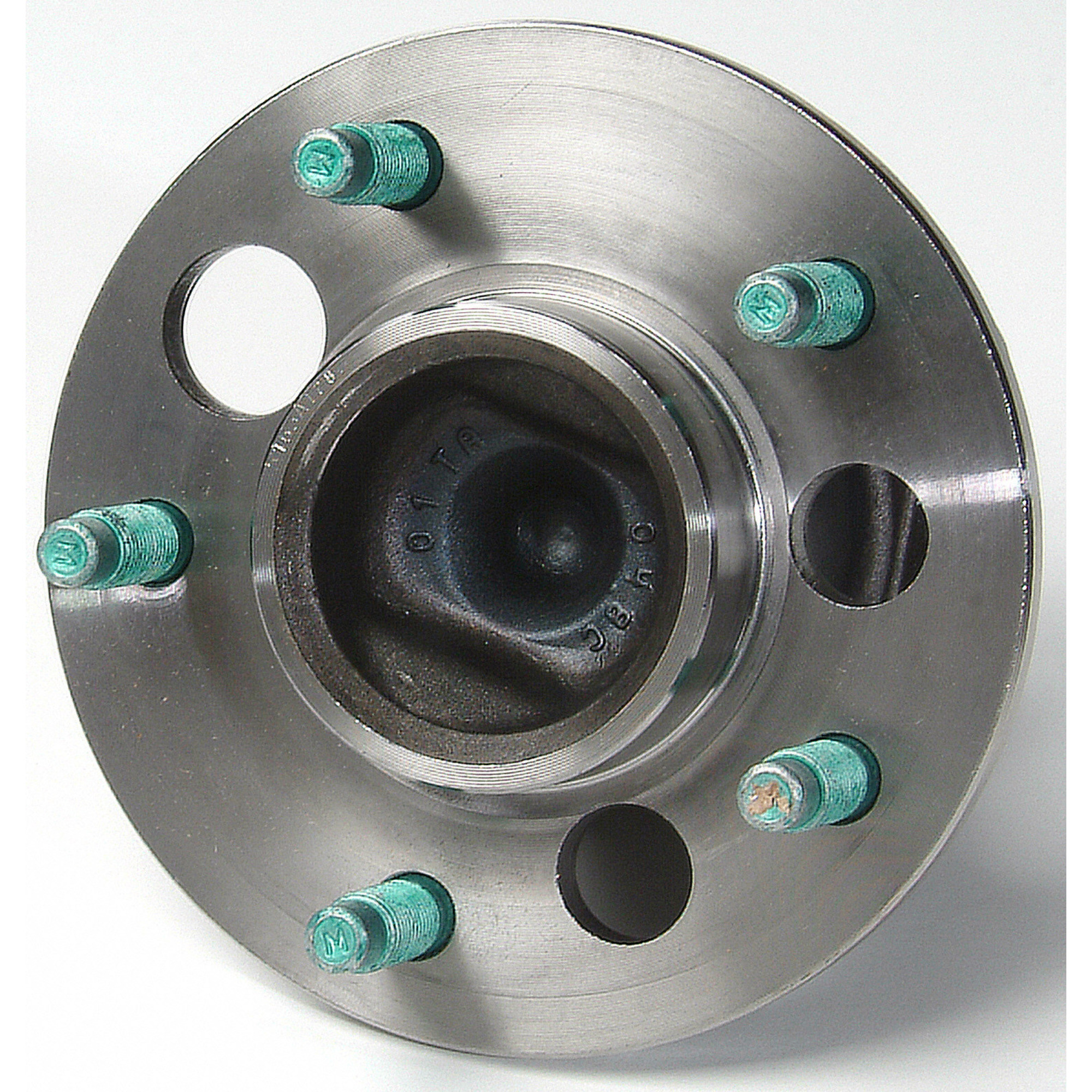

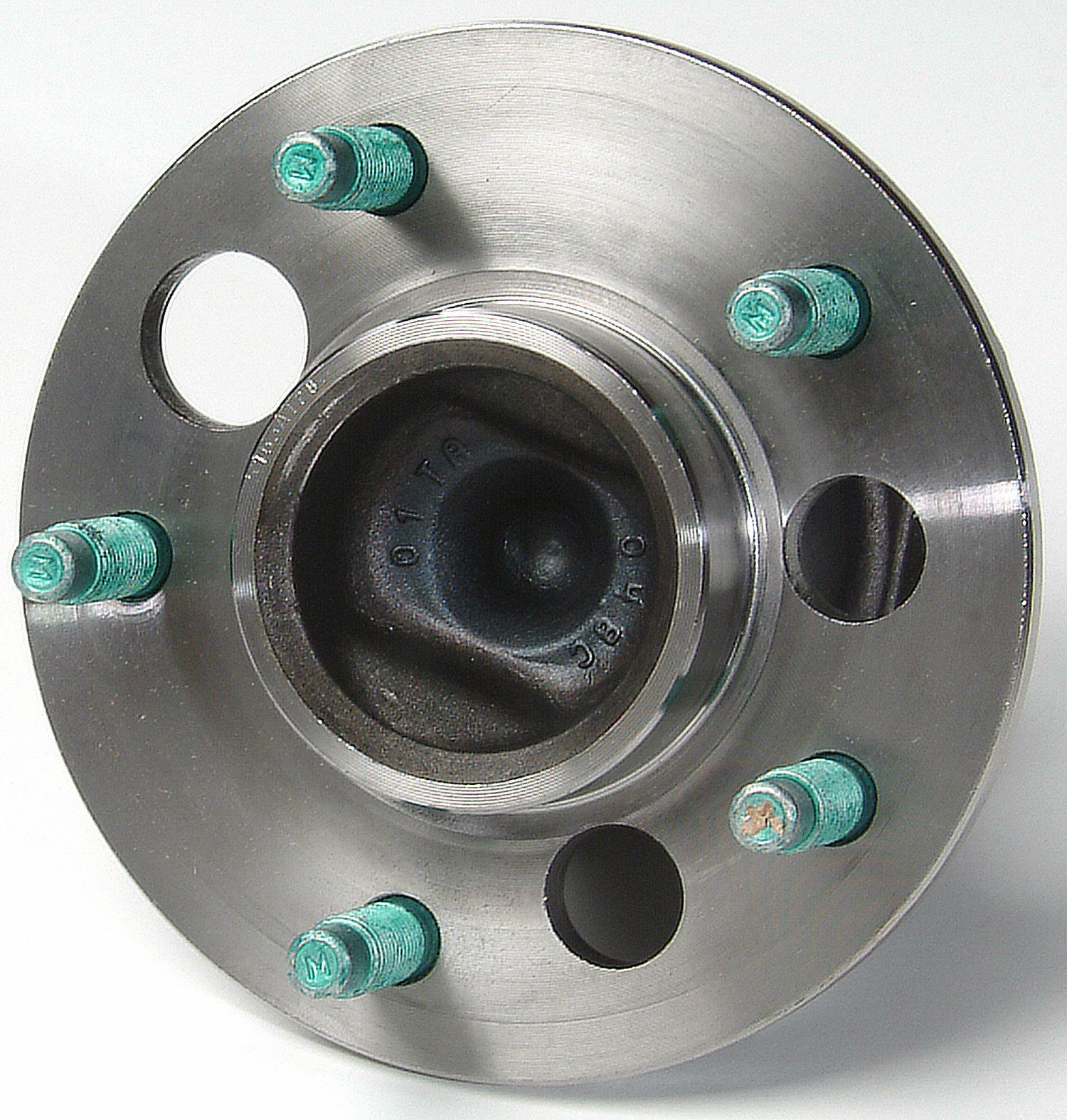

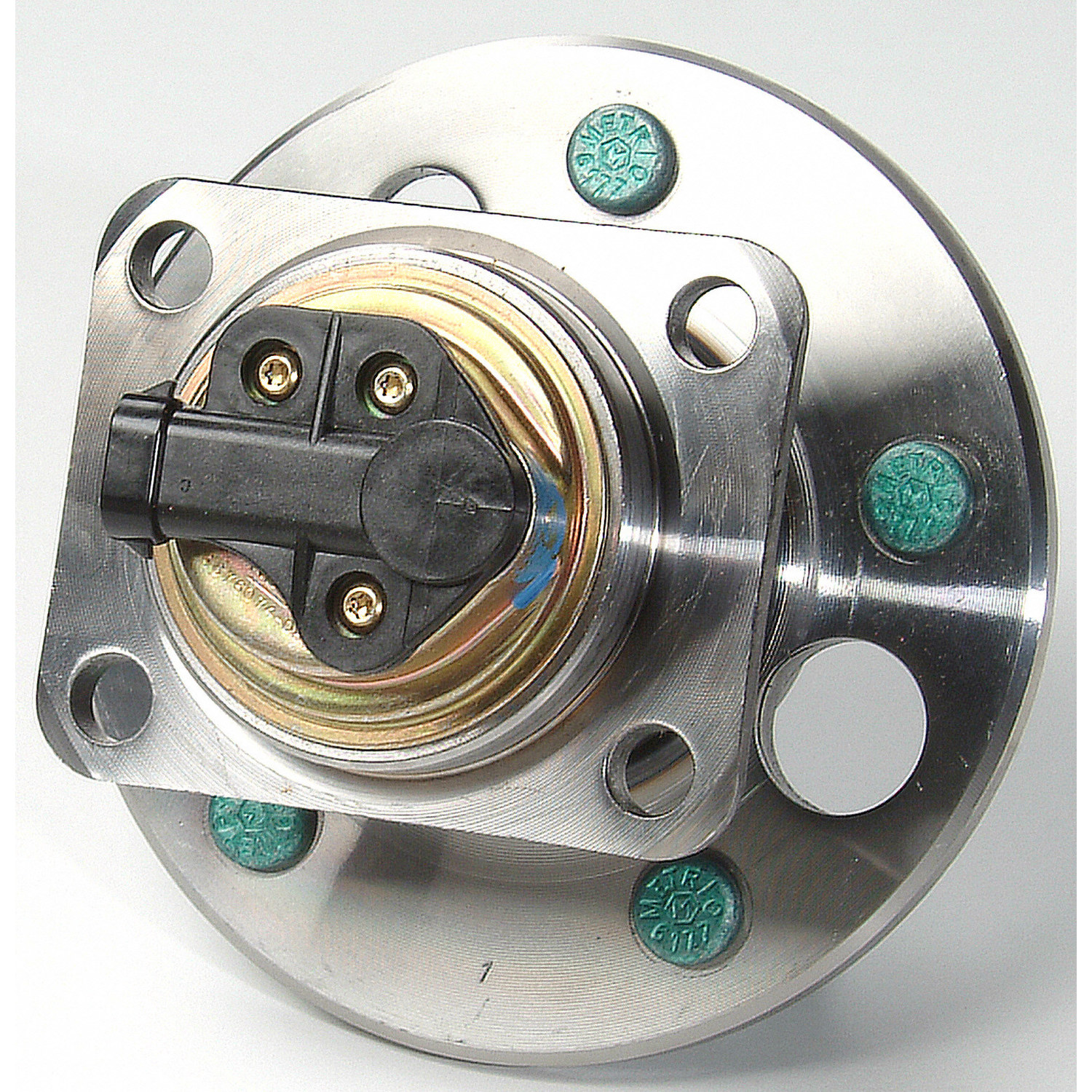

Rear Wheel Bearing and Hub Assembly

Part # 513062 | Line Code: 307

$241.19

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Product Details

Wheel Stud Quantity	5
Brake Pilot Diameter	70.600
Bolt Circle Diameter	115.000
Flange Shape	Rectangular
Flange Diameter	150.000
Anti Lock Brake Sensor Included	Yes
Heavy Duty Supplier	Yes
Wheel Pilot Diameter	70.100
Flange Bolt Hole Quantity	4
Flange Offset	65.000
Hub Pilot Diameter	71.800
Part Terminology	Wheel Bearing and Hub Assembly

Features & Benefits

By constantly introducing design enhancements that extend product life and simplify installation and replacement, MOOG has earned its reputation as the chassis industry's Problem Solver.

Application Summary

1991-1999 Buick LeSabre (Rear) (ABS: 4-Wheel ABS); 1991-1996 Buick Park Avenue (Rear); 1991-1993 Cadillac Commercial Chassis (Rear) (Liter: 4.9 & Engine(ci): 300 & Cylinder: 8 & Block: V & Bore(in): 3.62 & Bore(mm): 92.0 & Stroke(in): 3.62 & Stroke(mm): 92.0 & ABS: 4-Wheel ABS & Drive: FWD); 1991-1993 Cadillac DeVille (Rear); 1991-1992 Cadillac Fleetwood (Rear); 1993 Cadillac 60 Special (Rear); 1991-1996 Oldsmobile 98 (Rear); 1991 Oldsmobile Delta 88 (Rear) (ABS: 4-Wheel ABS); 1992-1999 Oldsmobile 88 (Rear) (ABS: 4-Wheel ABS); 1996-1999 Oldsmobile LSS (Rear); 1997-1998 Oldsmobile Regency (Rear); 1991-1999 Pontiac Bonneville (Rear) (ABS: 4-Wheel ABS)
