| Performance Rated? | Yes |
| Fan Bolt Circle IN | 6 |
| Description | Fan Clutches |
| Mounting Hole Quantity | 6 |
| Use Type | Severe |
| Fan Bolt Circle MM | 152.4 |
| Thermal Or Centrifugal | D - Severe Duty & Truck Fan Drive |
| New or Reman | New |
| Mounting Hardware? | Not Included |
| Overall Height MM | 103.6 |
| Mount Type | Flange |
| Pilot Depth MM | 16.5 |
| Bolt Quantity | 6 |
| Bolt Hole Quantity | 6 |
| Overall Height IN | 4.08 |
| Style | Severe Duty |
| Pilot Depth IN | 0.66 |
| Clutch Type | D - Severe Duty & Truck Fan Drive |
| SDS Required | No (135233618) |
| Drawing Type | D |
| Overall Dia. MM | 188 |
| O.E. Replacement? | Yes |
| Mount Dia. IN | 3.22 |
| Pilot Dia. IN | 0.75 |
| Warranty | 1 year/12,000 miles |
| Duty Rating | Severe |
| Printed Foot Note | Exhaust inventory and reorder new number [36711] |
| Overall Dia. IN | 7.4 |
| Color | Raw Aluminum in Color |
| Terminal Type | N/A |
| Mounting Hardware Included | No |
| Material | Aluminum |
| Mount Dia. MM | 82 |
| Mounting Type | Flange |
| Clutch Maximum Diameter | 7.4 |
| Rotation | REV |
| Meets / Exceeds OEM? | Yes |
| Type | Thermal |
| Dia. IN | 7.4 |
| Distance From Clutch To Mounting Flange | 1.76 |
| Bolt Thread | M8 x 1.25 Hole |
| Fan Mount Height MM | 44.7 |
| Fan Mount Dia. IN | 5 |
| Electronic Clutch? | Non Electronic |
| Grade Type | Severe |
| Mount Hole Qty | 6 |
| Fan Mount Dia. MM | 126.9 |

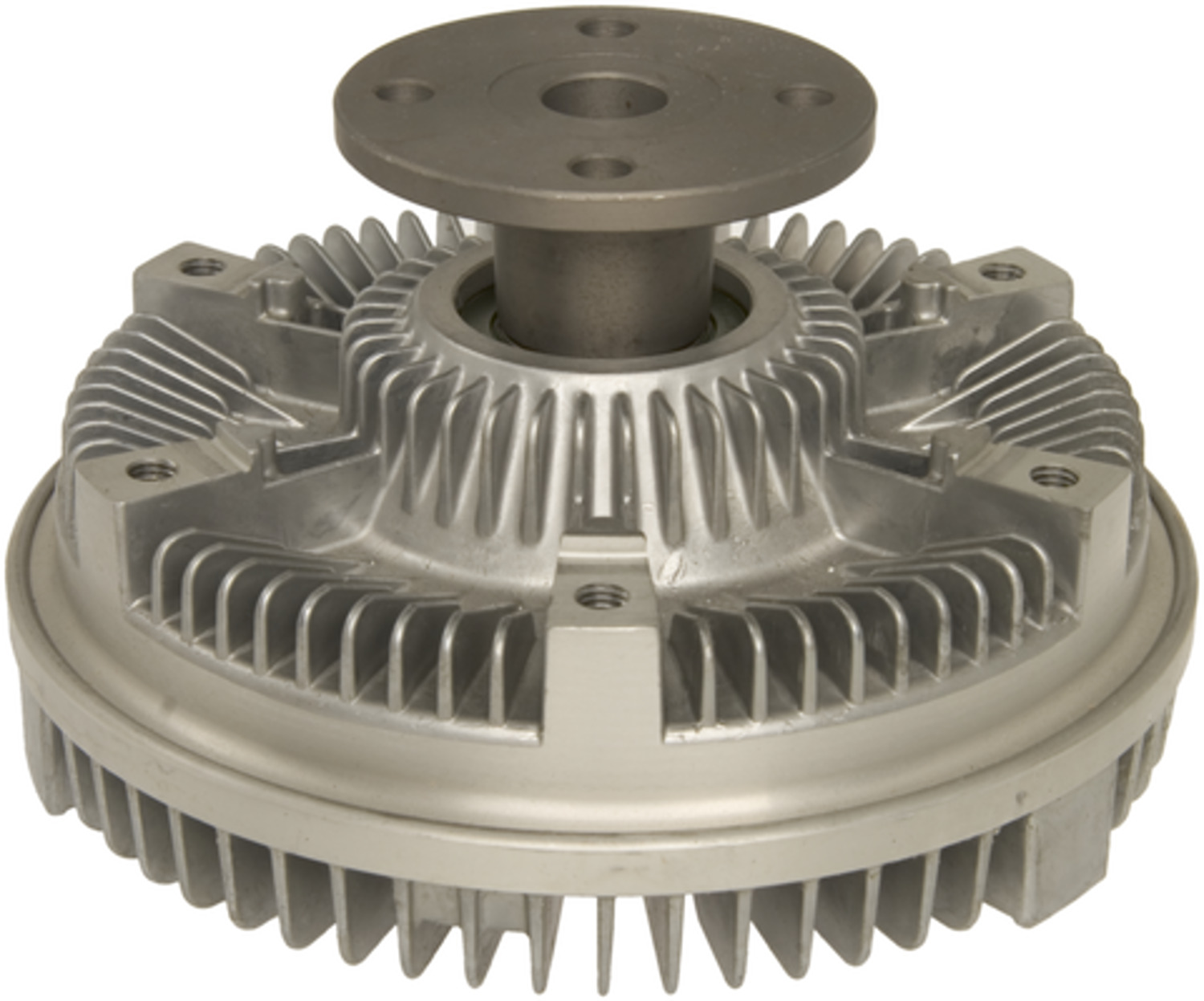

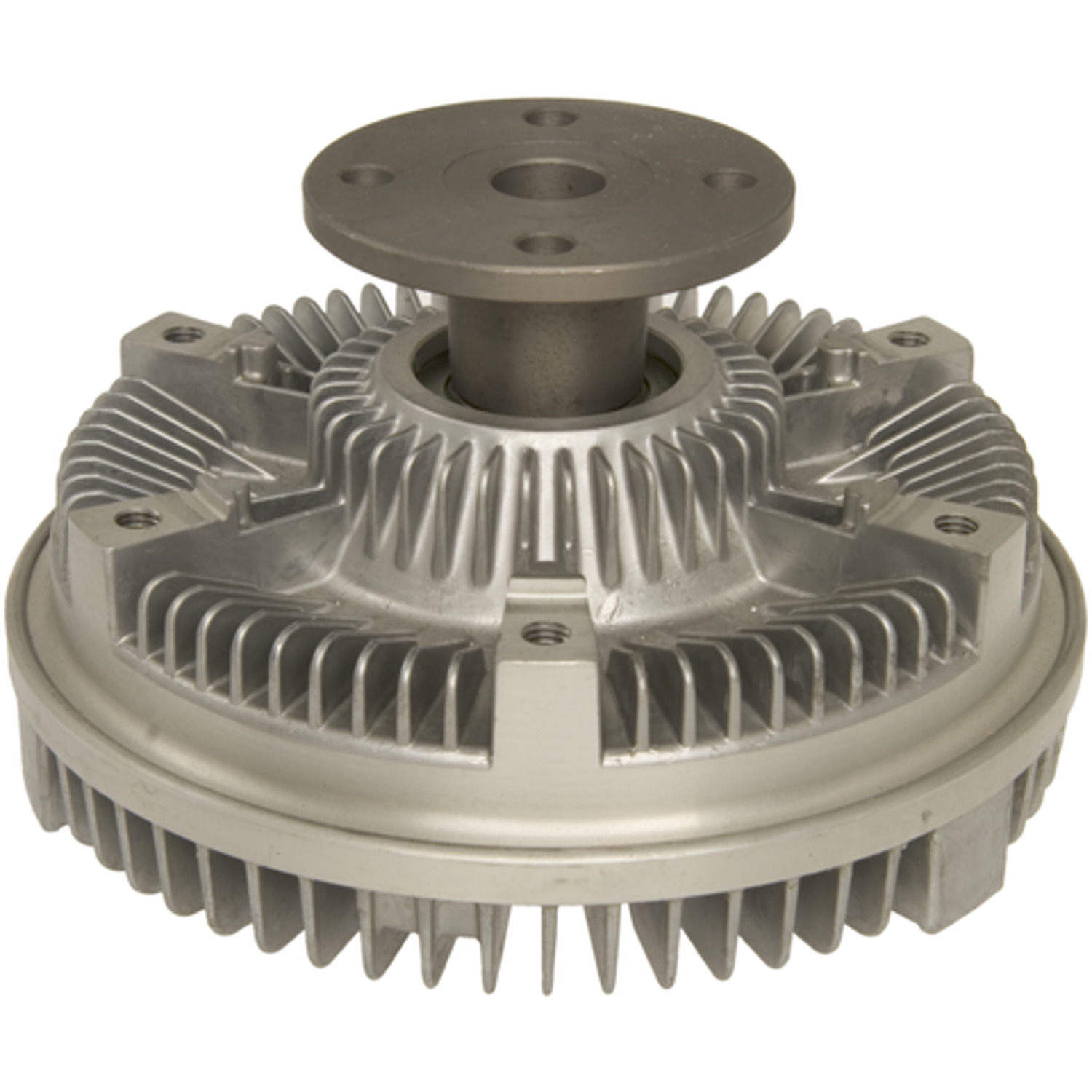

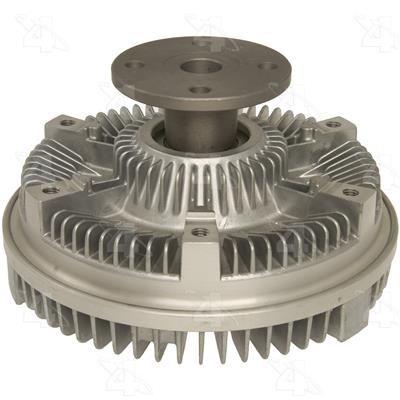

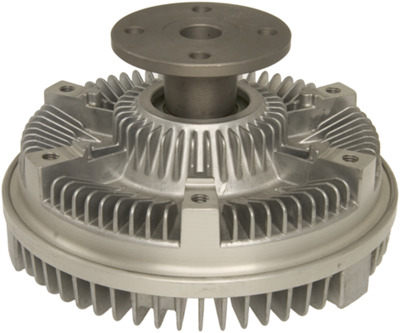

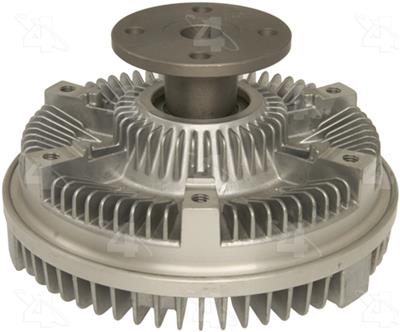

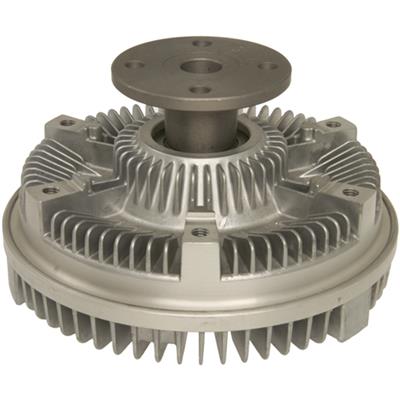

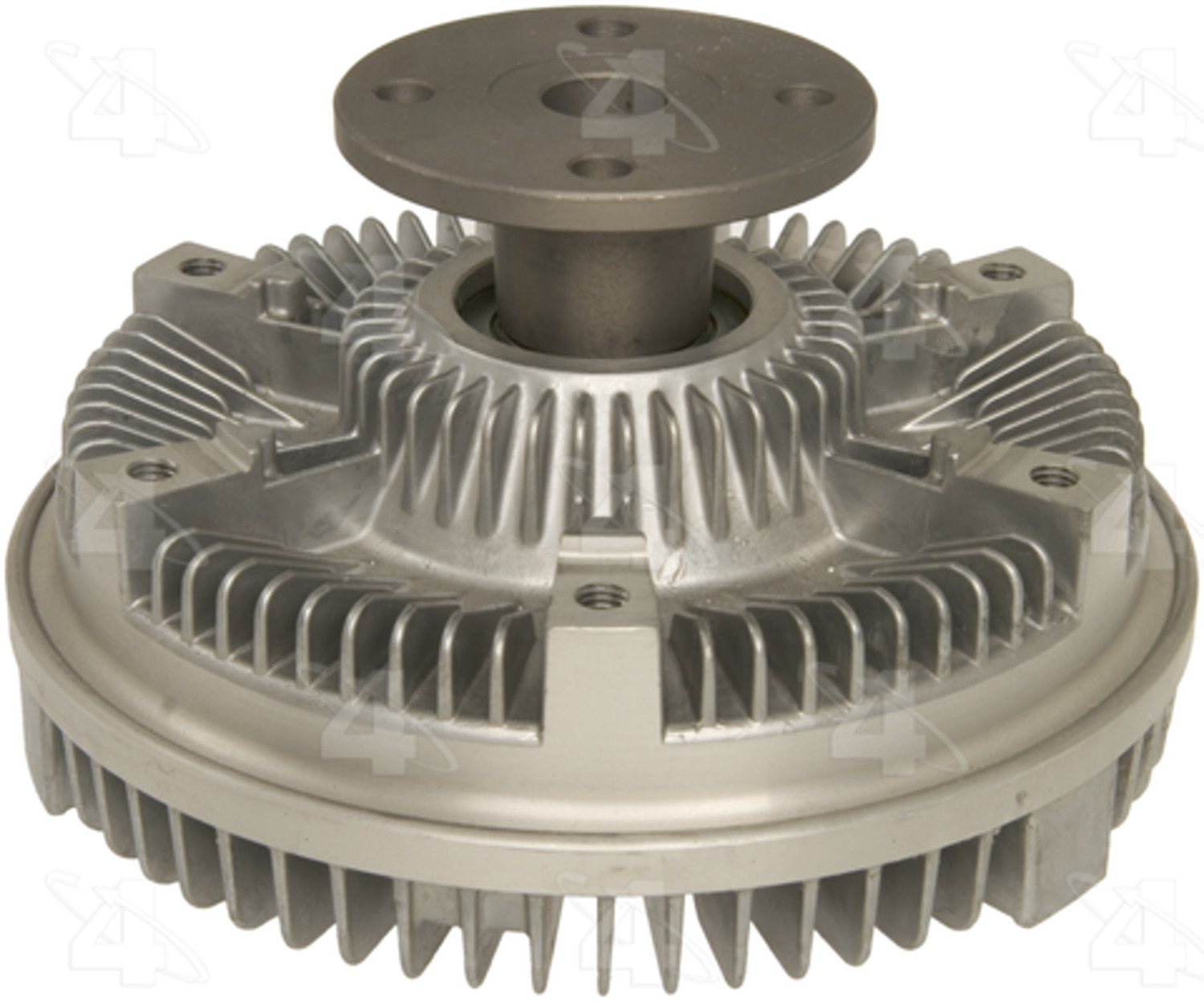

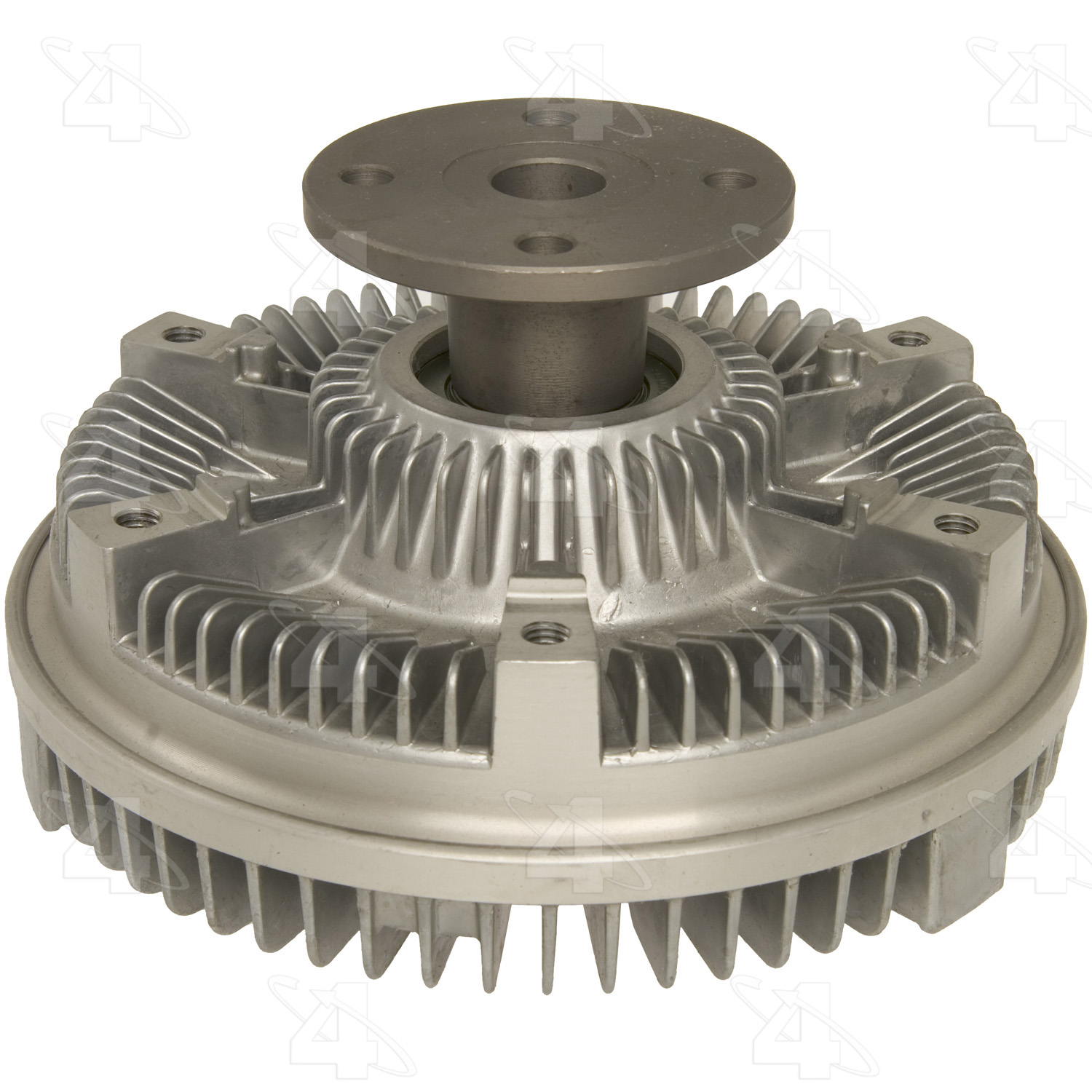

| Part Terminology | Engine Cooling Fan Clutch |
