| Fan Bolt Circle IN | 3.25 |
| Performance Rated? | Yes |
| Description | Fan Clutches |
| Mounting Hole Quantity | 4 |
| Use Type | Non-Thermal |
| Fan Bolt Circle MM | 82.6 |
| Thermal Or Centrifugal | B - Non-Thermal & Std Thermal |
| New or Reman | New |
| Mounting Hardware? | Not Included |
| Overall Height MM | 91.4 |
| Mount Type | Flange |
| Pilot Depth MM | 26.2 |
| Bolt Quantity | 4 |
| Bolt Hole Quantity | 4 |
| Overall Height IN | 3.59 |
| Style | Standard Duty |
| Pilot Depth IN | 1.03 |
| Clutch Type | B - Non-Thermal & Std Thermal |
| SDS Required | No (135233618) |
| Overall Dia. MM | 182.9 |
| Drawing Type | B |
| O.E. Replacement? | Yes |
| Pilot Dia. IN | 0.63 |
| Mount Dia. IN | 2.6 |
| Warranty | 1 year/12,000 miles |
| Duty Rating | Non-Thermal |
| Overall Dia. IN | 7.2 |
| Color | Raw Aluminum in Color |
| Terminal Type | N/A |
| Mounting Hardware Included | No |
| Material | Aluminum |
| Mount Dia. MM | 66 |
| Mounting Type | Flange |
| Clutch Maximum Diameter | 7.2 |
| Rotation | STD & REV |
| Meets / Exceeds OEM? | Yes |
| Type | Non-Thermal |
| Dia. IN | 7.2 |
| Distance From Clutch To Mounting Flange | 2.03 |
| Bolt Thread | 5/16-18 Hole |
| Fan Mount Height MM | 51.6 |
| Fan Mount Dia. IN | 2.62 |
| Electronic Clutch? | Non Electronic |
| Grade Type | Non-Thermal |
| Mount Hole Qty | 4 |
| Fan Mount Dia. MM | 66.6 |

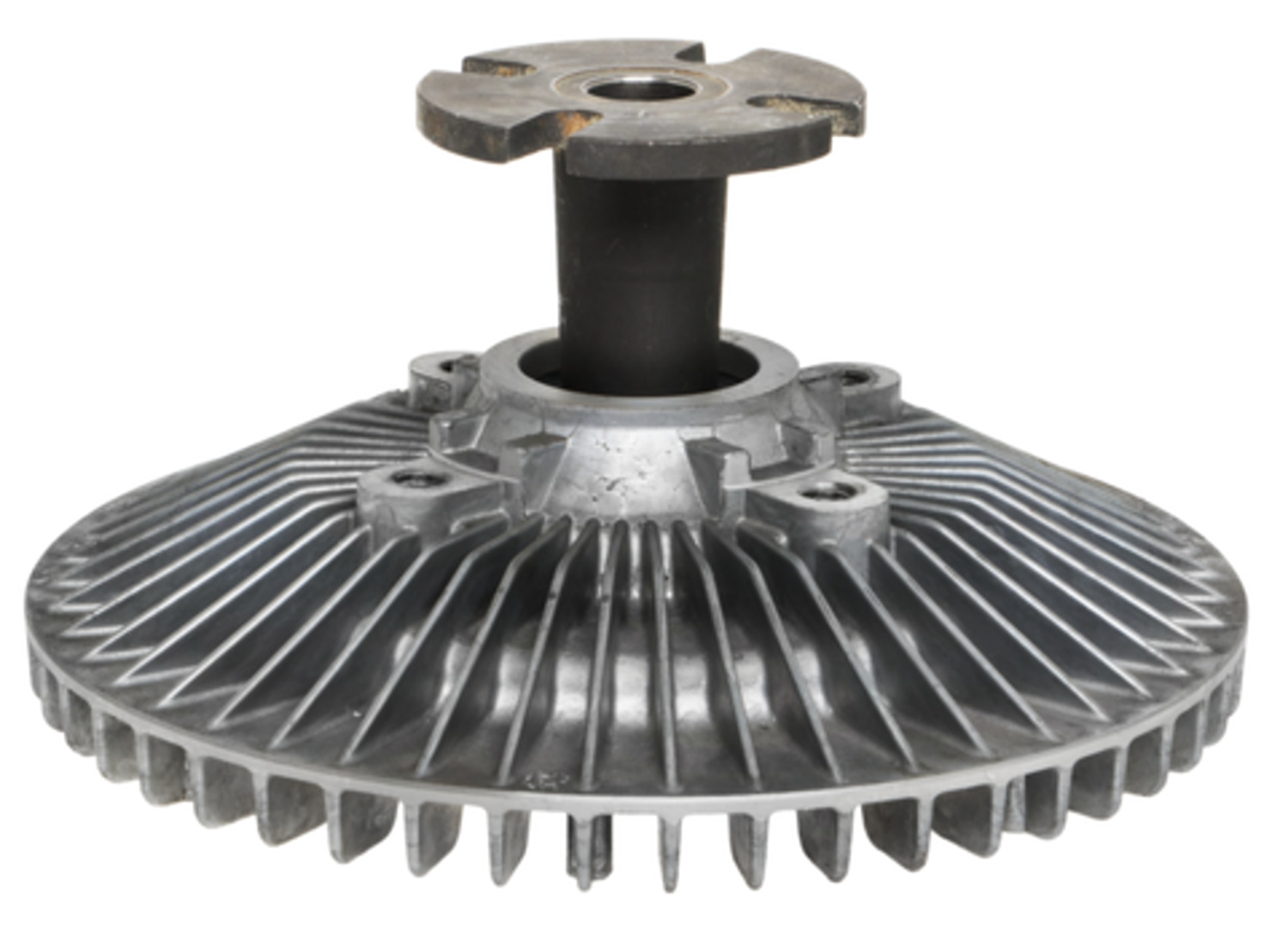

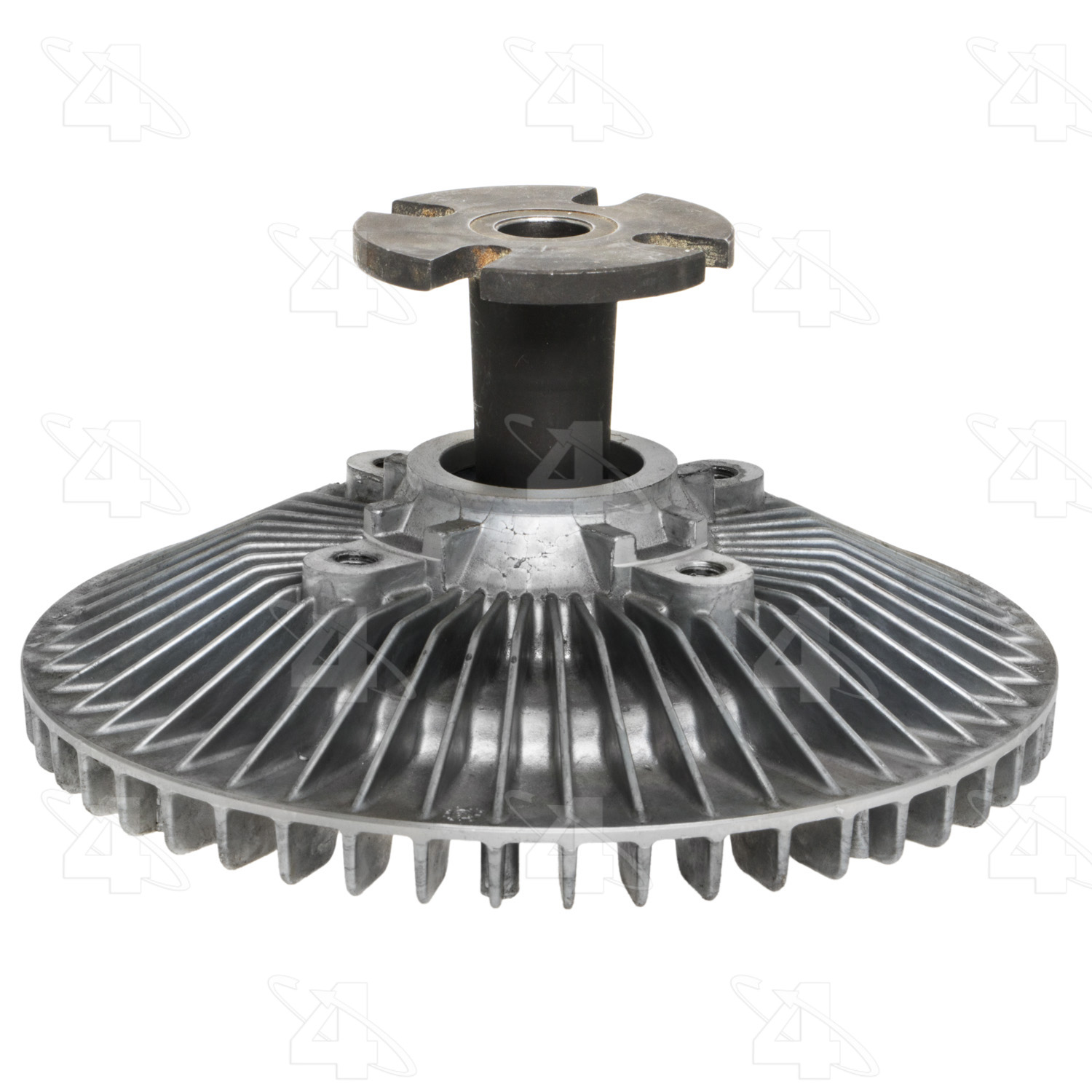

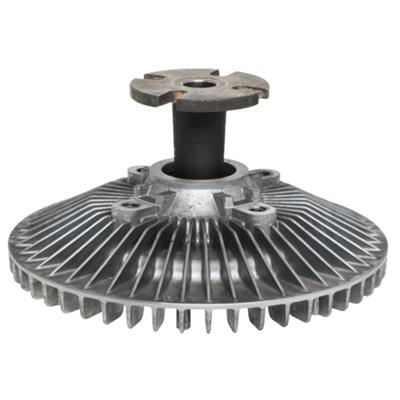

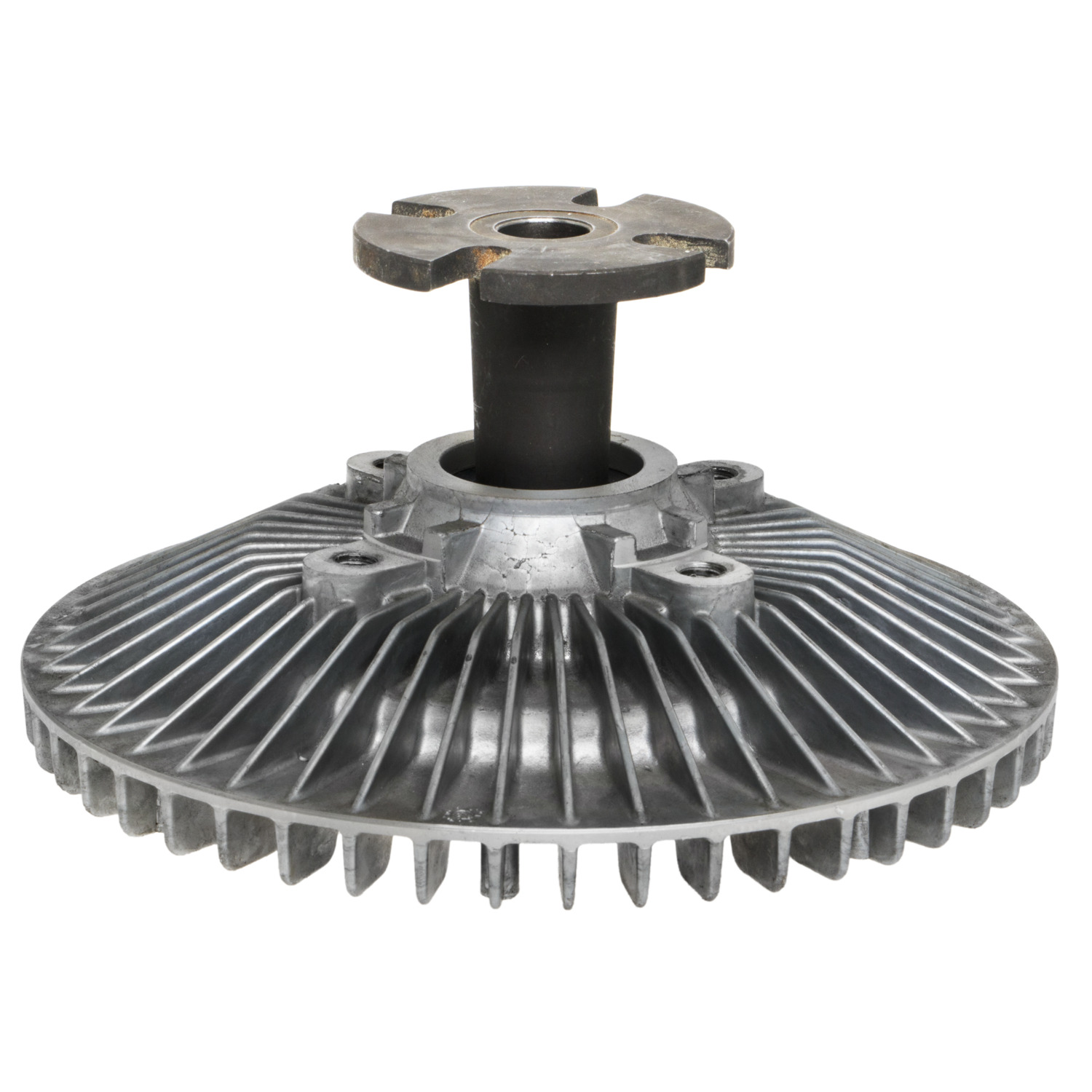

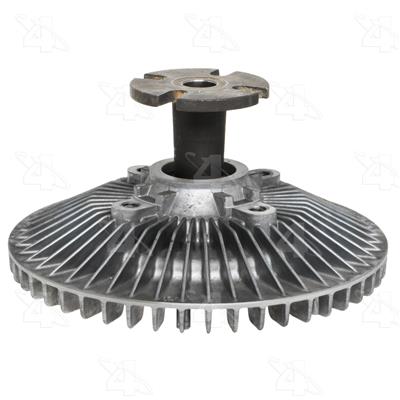

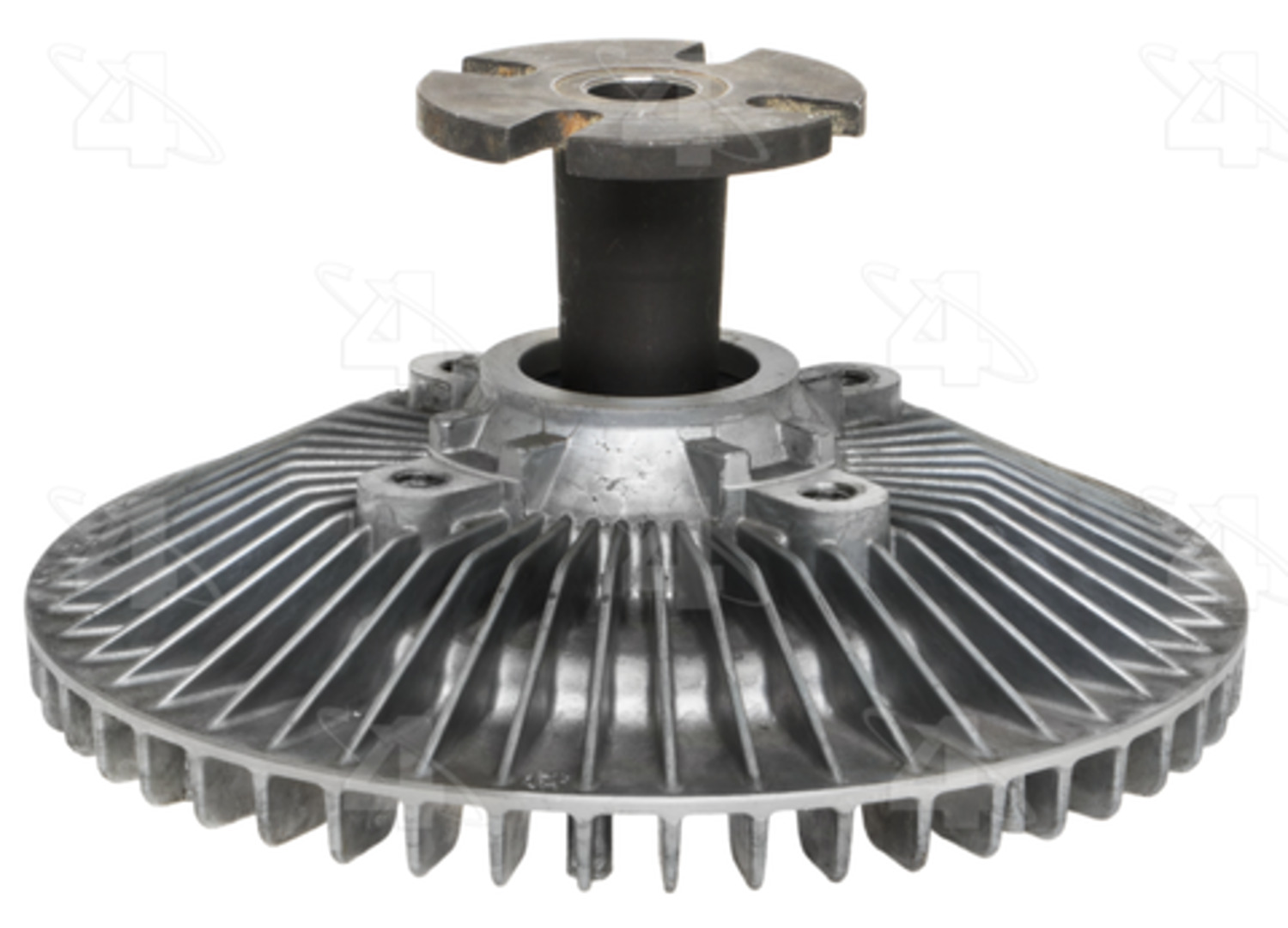

| Part Terminology | Engine Cooling Fan Clutch |
