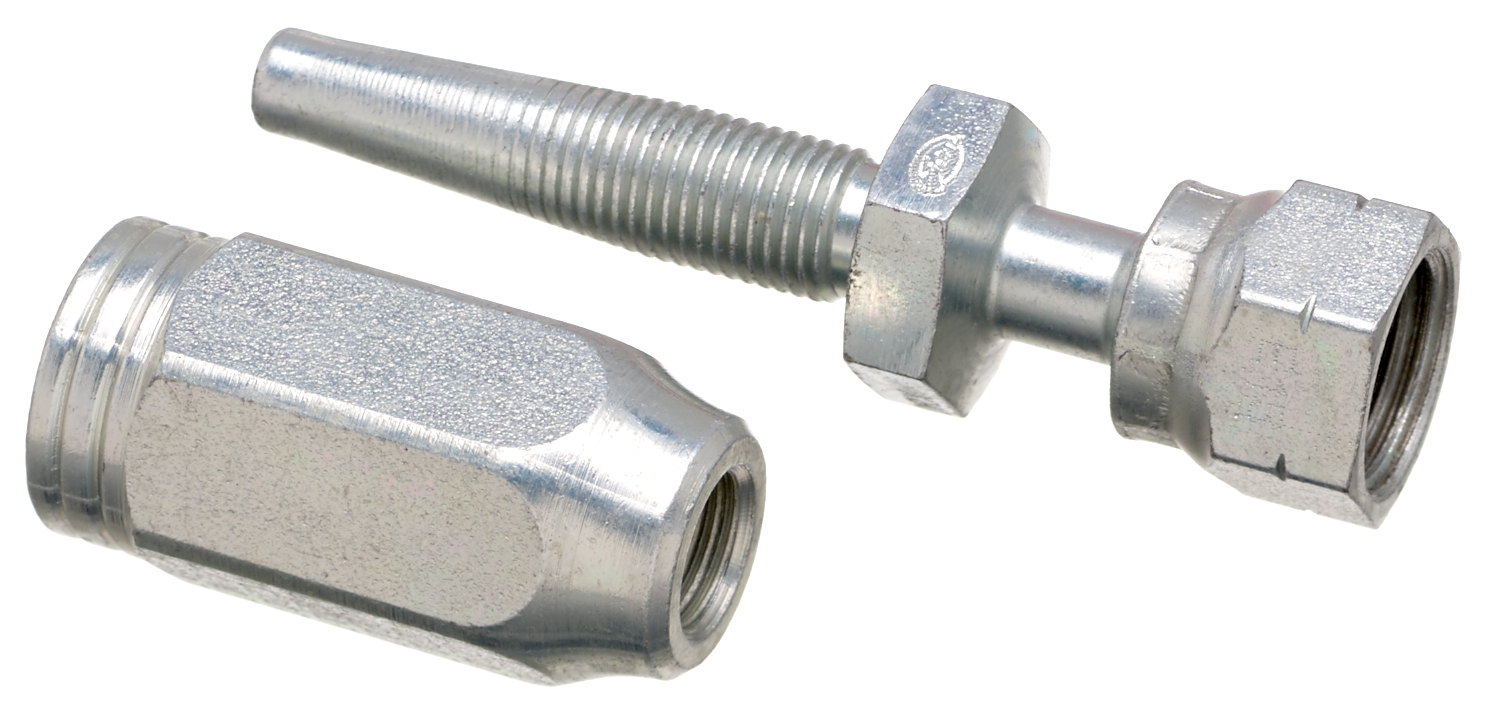

Female Flat-Face O-Ring Swivel (Type T for G2 Hose - 2 Wire)
Part # G28230-0404 | Line Code: 142
brandNameImage
brandNameImage
$47.43
$47.43
error
Not Fitted
store
Pickup
Select a store for availability
Select a Store
Product Details
expand_less
Coupling Description Field Attachable Type T for G2 2-Wire Hose Female Flat-Face O-Ring Swivel
Cut Off (in) - C 1.43
Hose Inside Diameter (mm) 6.4
Nut Hex (in) - H2 .6719
Heavy Duty Supplier Yes
Hose Inside Diameter (in) .25
Thread Size 9/16-18
Hose Recommendation Gates 2-Wire - Global G2, Global G2L PolarFlex (-4 through -24), Hot Oiler
Length 2.5
Stem Hex (in) - H1 .6719
Inside Diameter .25
Length (in) 2.5
Length (MM) 63.5
Alliance Keywords hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement
Cut Off (mm) - C 36.3
Industrial Description 4C2AT-4RFFORX
Part Terminology Hydraulic Coupling / Adapter
Features & Benefits
expand_more
Field Attachable Type T couplings provide a solution when crimping is not available. SAE J1453 O-Ring Face Seal.
Additional Resources
expand_more

Product Documentation

Safety Data Sheet
