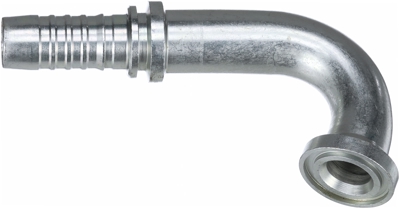

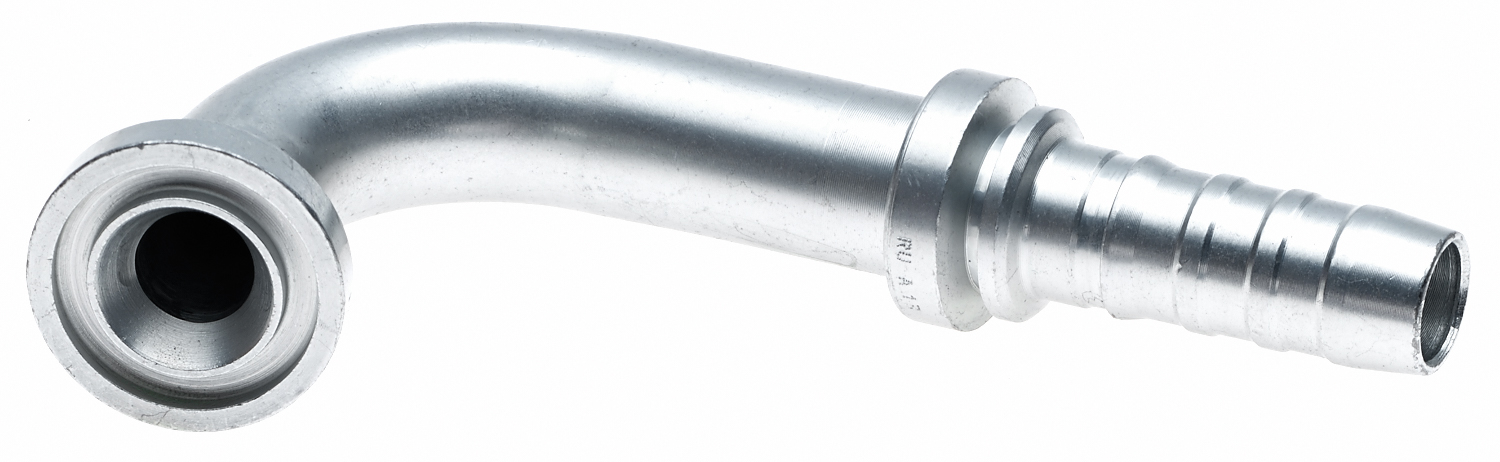

| Coupling Description | GlobalSpiral Code 61 O-Ring Flange - 110 Bent Tube |
| Cut Off (in) - C | 4.33 |
| Hose Inside Diameter (mm) | 31.8 |
| Maximum Working Pressure | 4000 |
| Heavy Duty Supplier | Yes |
| Hose Inside Diameter (in) | 1.25 |
| Drop Length | 80 |
| Flange Thickness | .32 |
| Drop (in) - T | 3.15 |
| Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Flange Head Thickness (in) - F | .32 |
| Length | 7.13 |
| Flange Diameter (mm) - M | 50.8 |
| Flange Diameter | 2 |
| Inside Diameter | 1.25 |
| Flange Head Thickness (mm) - F | 8.1 |
| Length (in) | 7.13 |
| Drop (mm) - T | 80 |
| Maximum Working Pressure (psi) | 4000 |
| Length (MM) | 181.1 |
| Flange Diameter (in) - M | 2 |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Cut Off (mm) - C | 109.9 |
| Industrial Description | 20GS-20FL110-080 |
| Part Terminology | Hydraulic Coupling / Adapter |
