| Burst Pressure | 9000 |
| EN Specification | N/A |
| Dash Size | 12 |
| Heavy Duty Supplier | Yes |
| Hose Inside Diameter (in) | .75 |
| Coupling Recommendation | MegaCrimp |
| Inside Diameter | .75 |
| Minimum Burst Pressure (psi) | 9000 |
| Cover Material | Urethane - Perforated for Use in General Hydraulic & Pneumatic Service |
| Reinforcement | Polyester |
| Maximum Working Pressure (psi) | 2250 |
| ISO Specification | N/A |
| Hose Material | Seamless Nylon (Type Z) |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Industrial Description | 12TH8XCTN |
| Cover Color | Black |
| Temperature Rating | -65 Deg. F to +200 Deg. F (Petroleum & Synthetic Oils), to +158 Deg. F (Water/Oil & Water Glycol) |
| Minimum Bend Radius (in) | 6.5 |
| Inside Diameter (in) | .75 |
| Maximum Working Pressure | 2250 |
| Color | Black |
| Material | Urethane - Perforated for Use in General Hydraulic & Pneumatic Service |
| Tube Description | Seamless Nylon (Type Z) |
| Reinforcement Material | Polyester |

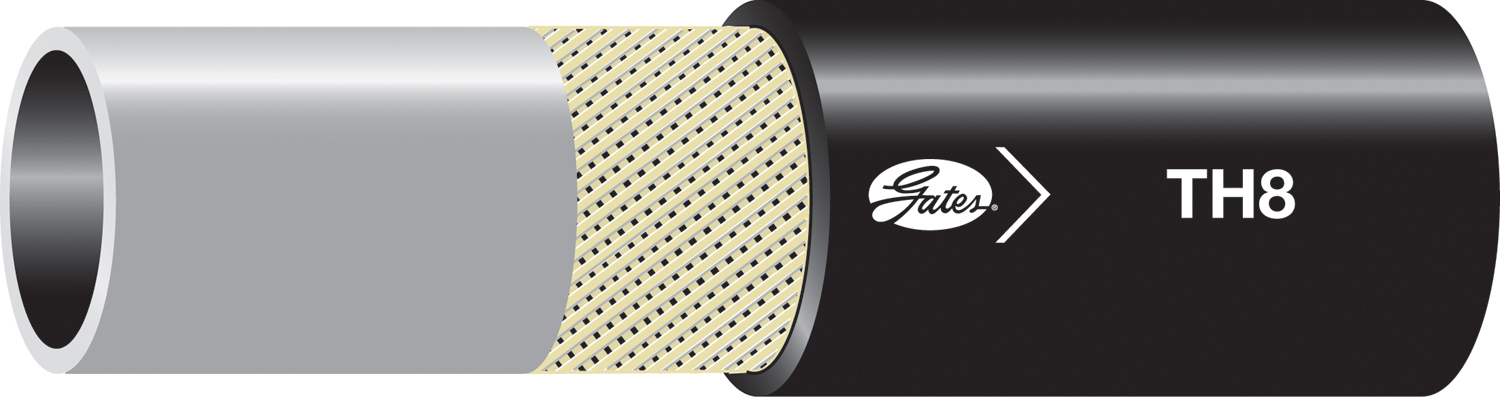

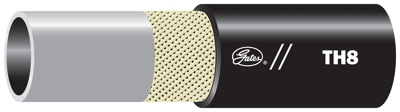

| Type | Thermoplastic Hydraulic Hose |
| Tube Material | Seamless Nylon (Type Z) |
| Hose Outside Diameter (in) | 1.13 |
| Length | 200 |
| Product Type | TH8 Hydraulic Hose - SAE 100R8 |
| Outside Diameter (In) | 1.13 |
| SAE Specification | 100R8 |
| Temperature Range | -65 Deg. F to +200 Deg. F (Petroleum & Synthetic Oils), to +158 Deg. F (Water/Oil & Water Glycol) |
| Hose Pressure Description | Medium Pressure |
| Cover Type | Resistant to Hydraulic Fluid, High Temperature, Aging & Weathering |
| Outside Diameter | 1.13 |
| Part Terminology | Hydraulic Hose |
