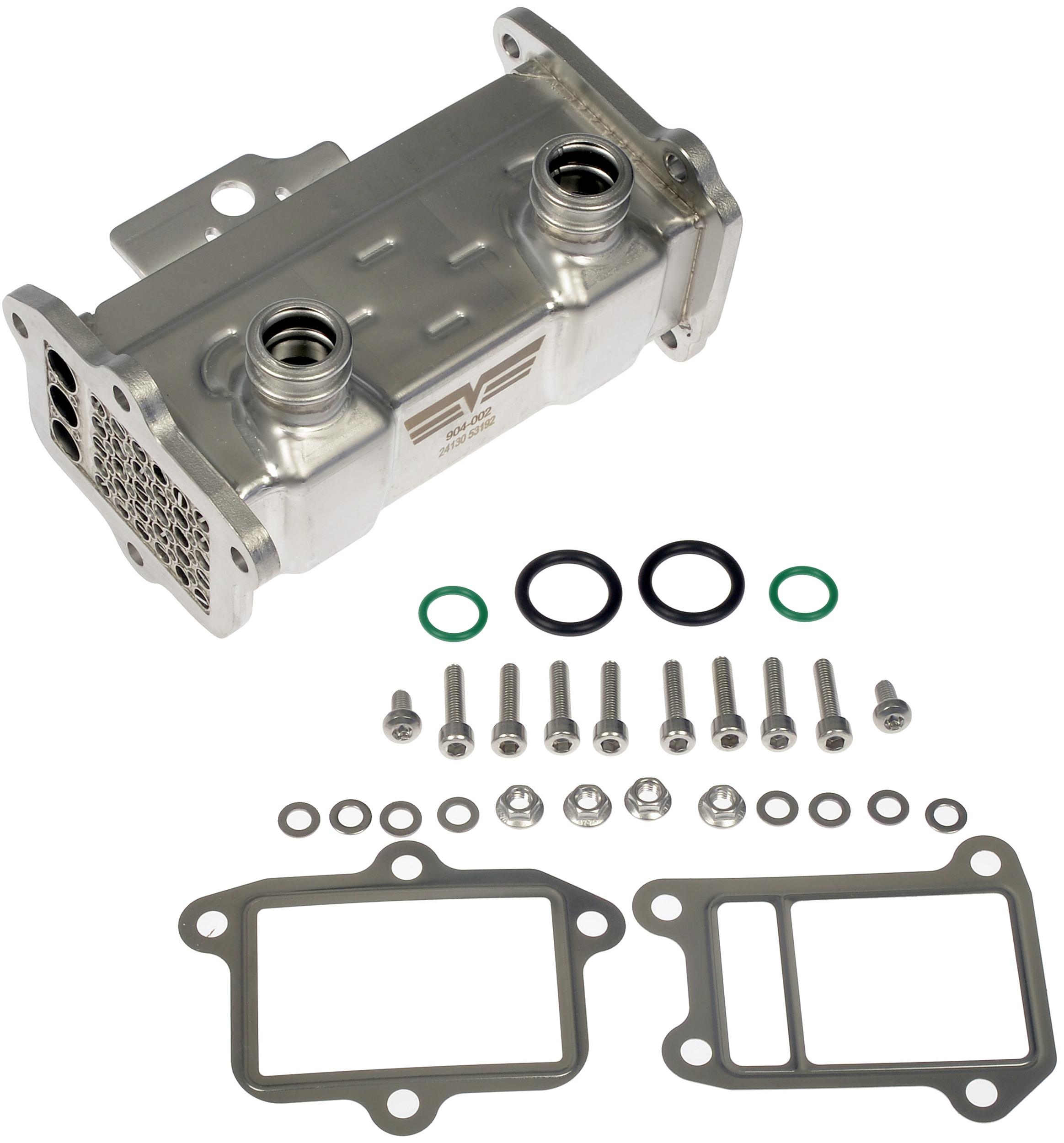

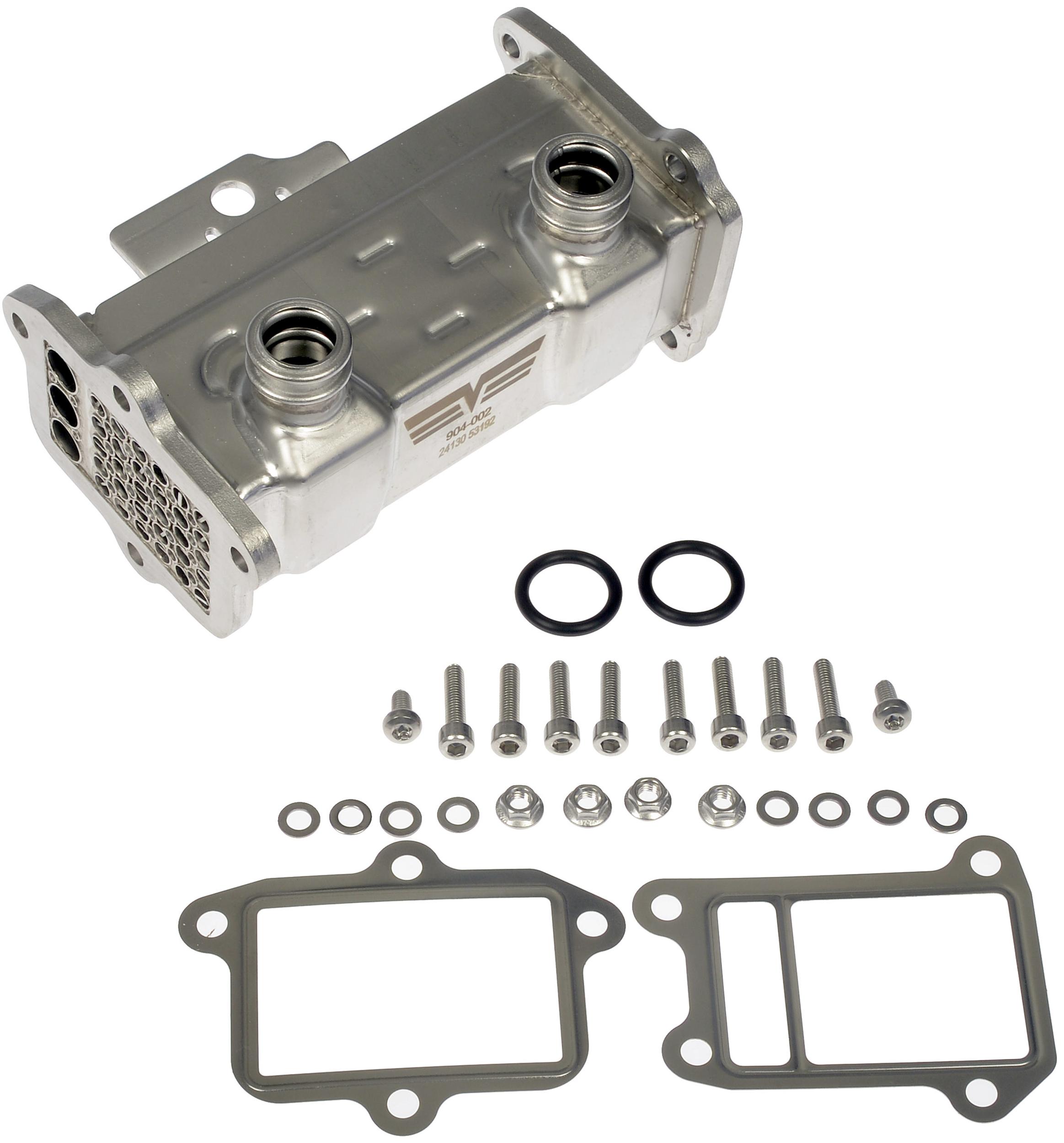

Exhaust Gas Recirculation Cooler
Part # 904-002 | Line Code: 115
brandNameImage
brandNameImage

$574.40
$574.40
error
Not Fitted

Product Details
expand_less
Overall Height 74.14
Contenidos del paquete 1 enfriador EGR
Heavy Duty Supplier Yes
Diámetro interior de la entrada (in) 16,13 mm
Outlet Inside Diameter (in) 0.45 in
End 2 Mount Hole Quantity 4
Mounting Hole Diameter 6
Package Contents 10 Bolts
Heat Exchanger Type Tube
End 1 Mount Hole Quantity 4
End 1 Inside Port Diameter 16.13
End 1 Type Hose Port
Overall Width 63.06 mm
Flanged Yes
End 2 Type Hose Port
Inlet Inside Diameter (in) 16.13 mm
Universal Or Specific Fit Specific
Tipo de intercambiador de calor Tubo
Gasket Or Seal Included Yes
Tipo de extremo 1 Puerto de manguera
Color Silver
Overall Length 152 mm
California Certified No
Material Aluminum
Gasket Or Seal Required Yes
End 2 Inside Port Diameter 16.08
Diámetro interior de la salida (in) 0.45 in
Grade Type Standard Replacement
Part Terminology Exhaust Gas Recirculation (EGR) Cooler

Features & Benefits
expand_more
When the original equipment exhaust gas recirculation (EGR) cooler fails or leaks on certain Jeep Grand Cherokee SUVs and Ram 1500 trucks equipped with an EcoDiesel 3.0 engine, it's typically due to internal soot buildup, or O-rings that were crushed during installation of a prior cooler replacement. The soot accumulation is the result of exhaust gases flowing too quickly over the fins in the factory design, which doesn't allow sufficient time for the hot gases to fully cool. This Dorman OE FIX EGR cooler addresses those potential failure points to offer a more permanent repair than the dealership. Our improved design moves exhaust gases through tubes and a helical restrictor that slows the gases down, keeping the cooler from clogging with soot. Like the factory cooler, ours is made of rugged, heat-resistant stainless steel and features the same revised gland design that later versions of the OE cooler used to better protect the O-rings during installation. This innovative repair solution is also cost-effective because although the dealership requires the purchase of the entire costly EGR cooler assembly, our OE FIX cooler reuses the factory valve and actuator.
